Remove/Install Soft Top Bow Locked Down Limit Switch - AR77.39-P-3705LWR
Model 205.4
Model 238.4

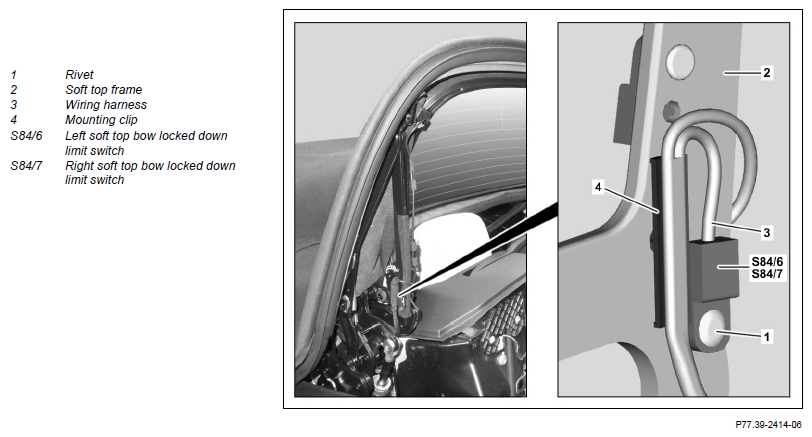

Shown on left side of vehicle
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove | |||
| 1 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 2 | Cover rear left and right fender | ||
| 3 | Knock rivet (1) off of soft top frame (2) and remove rivet residues | ||
| 4 | Expose wiring harness (3) and cut area of retaining clips (4) | Cut wiring harness (3) so that the repair point is not stressed mechanically when opening or closing the soft top. Otherwise the repair point can be damaged. |
|
| 5 | Remove left soft top bow locked down limit switch (S84/6) or right soft top bow locked down limit switch (S84/7) | ||
| Install | |||
| 6 | Shorten electrical lines of new left soft top bow locked down limit switch (S84/6) or new right soft top bow locked down limit switch (S84/7) to corresponding length | If necessary. | |
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and safety glasses. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | AS00.19-Z-0002-01A | |
| 7 | Solder electrical lines of new left soft top bow locked down limit switch (S84/6) or new right soft top bow locked down limit switch (S84/7) to wiring harness (3) and insulate | ||
| Topical note | Notes on soldering | AH00.19-P-1000-10A | |
| Notes on soft soldering | AH00.19-P-1000-07A | ||
| 000 588 00 84 00 Heat gun | WS54.00-P-0049B | ||
| AR00.19-P-0100-09A | |||
| Fig 2 | |||
| Fig 6 | |||
| Fig 3 | |||
| Fig 5 | |||
| Fig 4 | |||
| Fig 7 | |||
| 8 | Protect repair point with fabric tape after repairing line | AR00.19-P-0100-08A | |
| 9 | Rivet left soft top bow locked down limit switch (S84/6) or right soft top bow locked down limit switch (S84/7) to soft top frame (2) | ||
| 10 | Remove retainers for repair position from soft top mechanism | ||
| 11 | Remove cover on rear left or right fender | ||
| 12 | Completely close soft top |
