Remove/Install Moving Glass Section Of Panoramic Roof - AR77.21-P-0503LWO
Model 238
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||

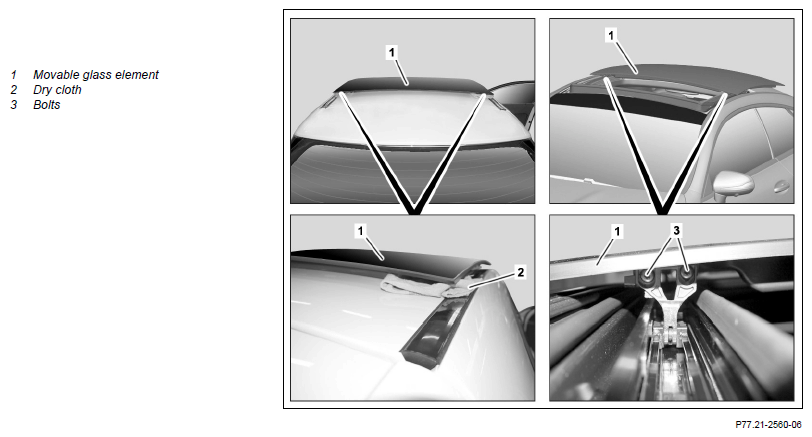

| 1 | Completely open movable glass section (1) | ||
| 2 | Place one dry cloth (2) each below movable glass section (1) on rear right and left | ||
| 3 | Remove bolts (3) | ||
| 4 | Push movable glass section (1) toward front out of rear mounts with aid of helper and remove | ||
| Install | |||
| 5 | Insert movable glass section (1) into rear mounts with aid of helper and lay down at front | ||
| 6 | Tighten bolts (3) | *BA77.21-P-1001-01E | |
| 7 | Remove dry cloth (2) | ||
| 8 | Completely close movable glass section (1) | ||
| 9 | Adjust movable glass section (1) | AR77.21-P-6924LWO |
PANORAMIC ROOF
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA77.21-P-1001-01E | Screw/bolt, front guide to panoramic sliding sunroof | Nm | 5 |
