Remove/Install Limit Switch For Closed Trunk Separator - AR77.38-P-3696LWR

Model 205.4

Model 238.4

Shown on model 205.4

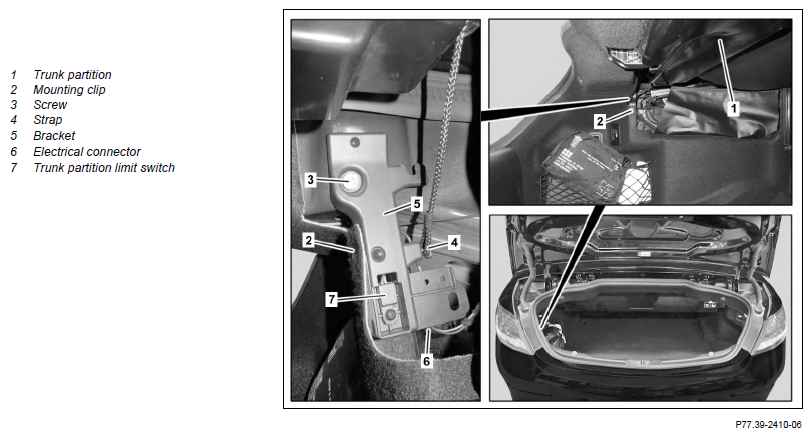

Fig 1: Limit Switch For Closed Trunk Separator Components Location - Model 238.4 (Shown On Model 205.4)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open trunk lid
2	Fold trunk partition (1) up	For this, the soft top must be closed.
3	Remove retaining clip (2)
4	Unscrew screw/bolt (3)
5	Unhook strap (4) on bracket (5)
6	Disconnect electrical connector (6)
7	Remove the bracket (5) with trunk partition limit switch (7)
8	Install in the reverse order
