Remove/Install Front Soft Top Lock - AR77.33-P-1012LWR
Model 205.4
Model 238.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove | |||
| 1 | Remove paneling from soft top at front. | AR77.31-P-1010LWR | |

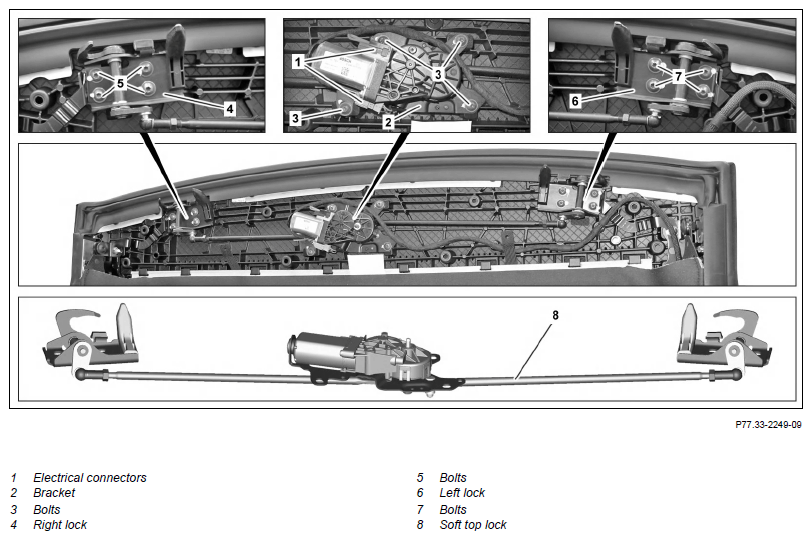

| 2 | Disconnect electrical connectors (1) and expose wiring harness on bracket (2). | ||
| 3 | Mark installation position of bolts (3) on bracket (2) and remove bolts (3). | ||
| 4 | Mark installation position of bolts (5) on right lock (4) and unscrew bolts (5). | ||
| 5 | Mark installation position of bolts (7) on left lock (6) and unscrew bolts (7). | ||
| 6 | Completely remove soft top lock (8). | ||
| Install | |||
| 7 | Position soft top lock (8) on soft top. | ||
| 8 | Tighten bolts (7) on left lock (6). | ||
| 9 | Tighten bolts (5) on right lock (4). | ||
| 10 | Tighten bolts (3) on bracket (2). | ||
| 11 | Connect electrical connectors (1) and fasten wiring harness to bracket (2). | ||
| 12 | Completely close soft top and check whether right lock (4) and left lock (6) is centered in the mounts of the roof frame and lock. | If there is a problem: ↓ Readjust right lock (4) or left lock (6). |
|
| 13 | Move soft top to repair position R4. | AR77.30-P-1030LWR | |
| 14 | Install cover on front of soft top. | AR77.31-P-1010LWR |
