Remove/Install Electric Motor For Soft Top Lock - AR77.39-P-5000LCA

Model 205.4

Model 217.4

Model 238.4

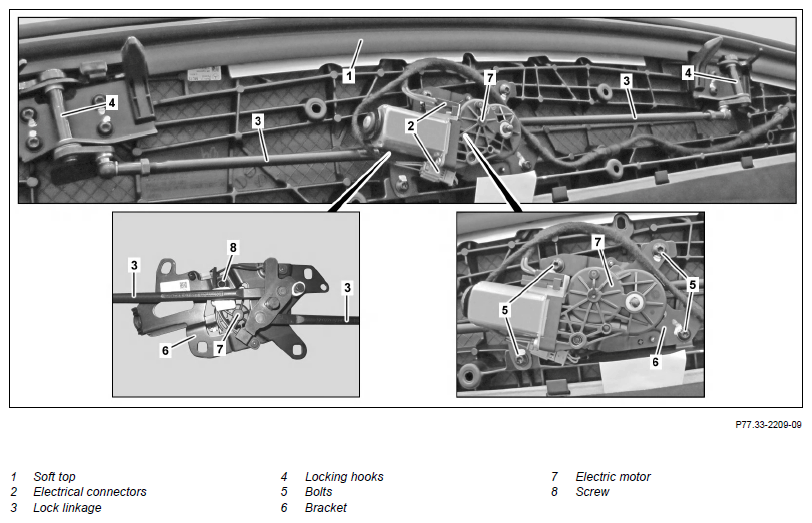

Fig 1: Electric Motor For Soft Top Lock Components Location - Model 238.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Remove/install
1	Remove trim from soft top (1) at front.	Model 205.4, 238.4	AR77.31-P-1010LWR
		Model 217.4	AR68.30-P-4320LCA
2	Disconnect electrical connectors (2) and expose wiring harness.
3	Remove lock linkage (3) at left and right locking hooks (4).
4	Mark installation position of bolts (5) on bracket (6) and remove bolts (5).	: Align bracket (6) with markings.
5	Remove lock linkage (3) with electric motor (7).
6	Remove screw (8).
7	Mark installation position of lock linkage (3) on bracket (6).
8	Pull lock linkage (3) out of electric motor (7) and remove electric motor (7) from holder (6).	: Align lock linkage (3) with markings.
9	Install in the reverse order.
