Prepare Draft Stop For Installation - AR77.25-P-2000-01LWP

Model 238.4

with code 288 (Draft stop for convertible)

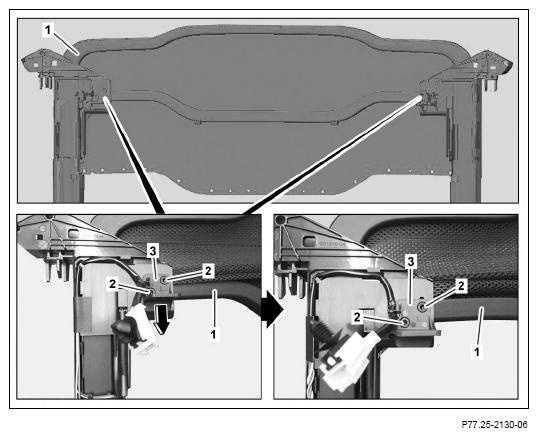

1. Remove screws (2) from the left and right angle bracket (3) of the draft stop (1).
2. Install angle brackets (3) in the bottom position as shown.

   If the position is correct, it is still possible to see half of the previous fastening hole above the angle brackets (3).

3. Tighten screws (2)

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

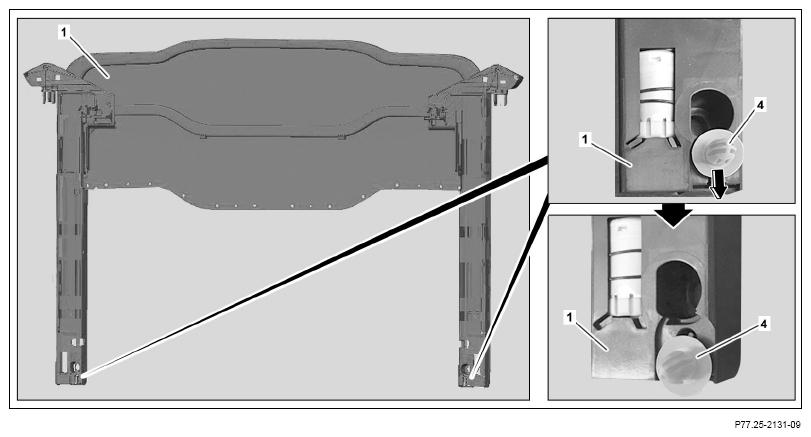

4. Push left and right retaining clip (4), into the bottom position as shown.

   If the position is correct, it is still possible to see half of the previous fastening hole above the retaining clips (4).
