Adjust Soft Top Compartment Lid - AR77.33-P-1705LWR

Model 205.4

Model 238.4

Courtesy of MERCEDES-BENZ USA

Shown on model 205.4

Shown on model 205.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A

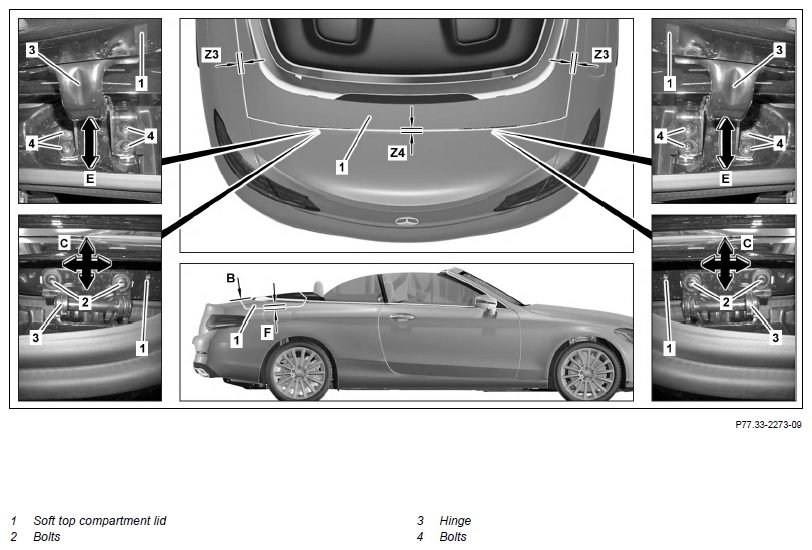

	Check
1	Completely open soft top
2	Check adjustment of trunk lid, adjust		AR88.50-P-0002LWR
3	Check gap dimensions (Z3, Z4)	Model 205.4 Soft top compartment lid to rear fender	*BE60.00-P-1034-01BB
		Model 238.4 Soft top compartment lid to rear fender	*BE60.00-P-1021-01HA
		Model 205.4 Soft top compartment lid to trunk lid	*BE60.00-P-1035-01BB
		Model 238.4 Soft top compartment lid to trunk lid	*BE60.00-P-1022-01HA
		Feeler gauge	Fig 1
4	Check transition (B) from soft top compartment cover (1) to trunk lid	Soft top compartment cover (1) may not be located under trunk lid. Wind noises will otherwise occur. Soft top compartment cover (1) must be flush with trunk lid.
5	Check transition (F) on right and left from soft top compartment cover (1) to rear fenders	Soft top compartment cover (1) must be flush with rear fenders.
	Adjust gap dimension (Z3) and transition (B)
6	Open trunk lid
7	Loosen bolts (2) on hinges (3)
8	Adjust gap dimension (Z3) on right and left by moving (arrow C) soft top compartment cover (1) to right or left	Model 205.4 Soft top compartment lid to rear fender	*BE60.00-P-1034-01BB
		Model 238.4 Soft top compartment lid to rear fender	*BE60.00-P-1021-01HA
		Feeler gauge	Fig 1
9	Adjust transition (B) by moving (arrow C) soft top compartment cover (1) up or down	Soft top compartment cover (1) may not be located under trunk lid. Wind noises will otherwise occur. Soft top compartment cover (1) must be flush with trunk lid.
10	Tighten bolts (2) on hinges (3)	Model 205.4 Screw /bolt, hinge to soft top compartment lid	*BA77.33-P-1001-03A
		Model 238.4 Screw /bolt, hinge to soft top compartment lid	*BA77.33-P-1001-03B
11	Close trunk lid
	Adjust gap dimension (Z4)
12	Move soft top to repair position R4		AR77.30-P-1030LWR
13	Loosen bolts (4) on hinges (3)
14	Adjust gap dimension (Z4) by moving hinges (3) in longitudinal direction (arrow E)	Model 205.4 Soft top compartment lid to trunk lid	*BE60.00-P-1035-01BB
		Model 238.4 Soft top compartment lid to trunk lid	*BE60.00-P-1022-01HA
		Feeler gauge	Fig 1
15	Tighten bolts (4) on hinges (3)	Model 205.4 Screw /bolt, soft top compartment lid hinge to body	*BA77.33-P-1002-03A
		Model 238.4 Screw /bolt, soft top compartment lid hinge to body	*BA77.33-P-1002-03B

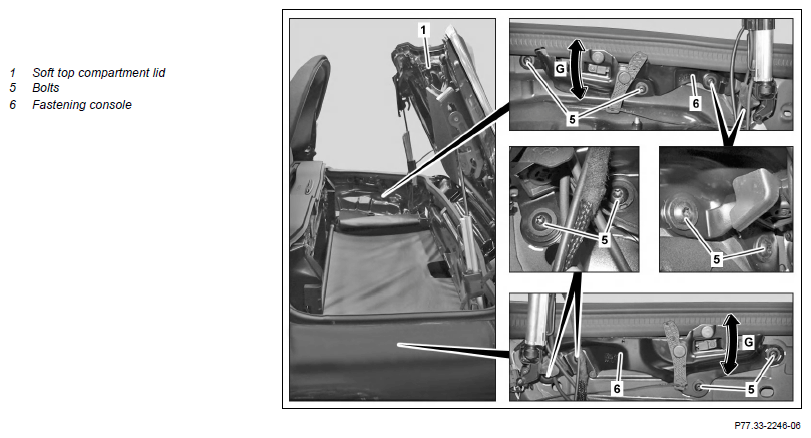

	Adjust transition (F)
16	Move soft top to repair position R2		AR77.30-P-1030LWR
17	Loosen bolts (5) on mounting consoles (6)
18	Adjust transition (F) on right and left by moving (arrow G) mounting supports (6) up or down	Soft top compartment cover (1) must be flush with rear fenders. Observe gap dimension (Z3) on right and left. Model 205.4 Soft top compartment lid to rear fender	*BE60.00-P-1034-01BB
		Model 238.4 Soft top compartment lid to rear fender	*BE60.00-P-1021-01HA
		Feeler gauge	Fig 1
19	Tighten bolts (5) on mounting consoles (6)	Model 205.4 Bolt, mounting support for striker pin to body	*BA77.33-P-1005-03A
		Model 238.4 Bolt, mounting support for striker pin to body	*BA77.33-P-1005-03B
20	Completely close soft top

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)
