Remove/Install Trunk Cover - AR68.30-P-4660LWR

Model 205.4, 238.4

Shown on model 205.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trunk floor	Clip remover	Fig 1

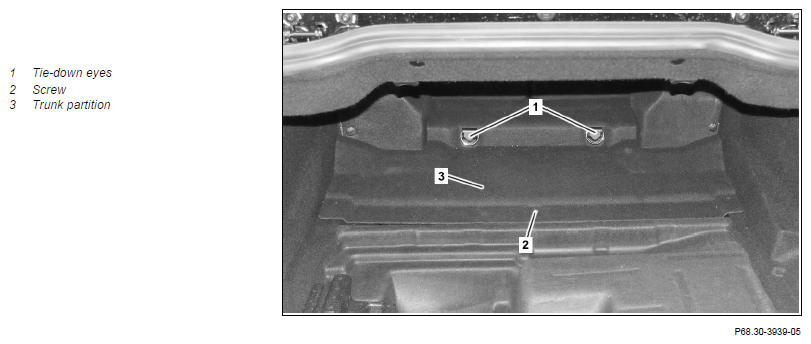

2	Remove tie-down eyes (1)	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
		Mounting wedge	Fig 2
3	Unscrew bolt (2)
4	Remove trunk cover (3)
5	Install in the reverse order

CARGO RETAINERS

Number	Designation		Model 205	Model 238
BA68.50-P-1001-03I	Screw/bolt for tie-down eye	Nm	24	24

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
