Remove/Install Inside Rearview Mirror - AR68.40-P-0001LWO
Model 238
MODIFICATION NOTES
| 26.07.2017 | Opening and removal of cable tie added. | Step 4 |
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit | Model 238.4 | AR82.20-P-1000LWR |
| Model 238.3 | AR82.20-P-1000LWO | ||

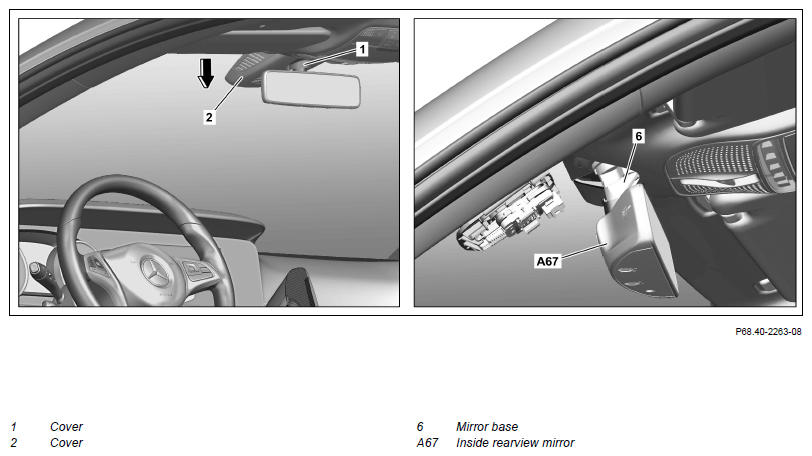

| 2 | Unclip and remove cover (1) | Fig 1 | |
| 3 | Unclip and remove cover (2) in direction of arrow | Fig 1 | |

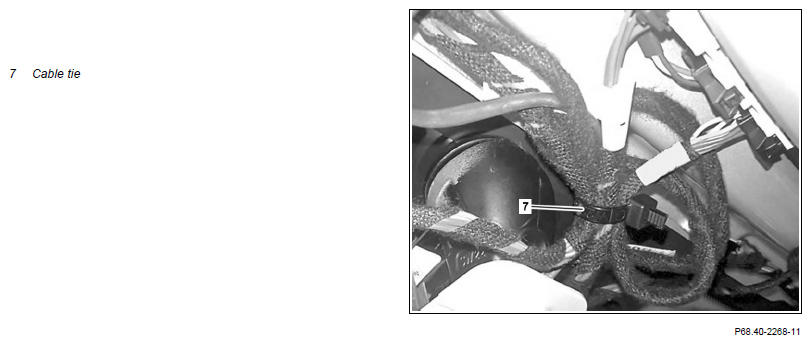

| 4 | Open and remove cable tie (7) | ||
| 5 | Turn inside rearview mirror (A67) on mirror base (6) to right with open end wrench and remove from mirror base | Pay attention to windshield when positioning and turning open-end wrench. Otherwise the windshield can be damaged. |
|
| 6 | Adjust reading lamps of inside rearview mirror (A67) to steering variant | When replacing inside rearview mirror (A67). | AR68.40-P-0001-01A |
| 7 | Install in the reverse order |
