Prepare Headliner For Installation - AR68.30-P-4305-16LWO

Model 238.3

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1144-02A	Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide A	008 989 50 85 09

Courtesy of MERCEDES-BENZ USA

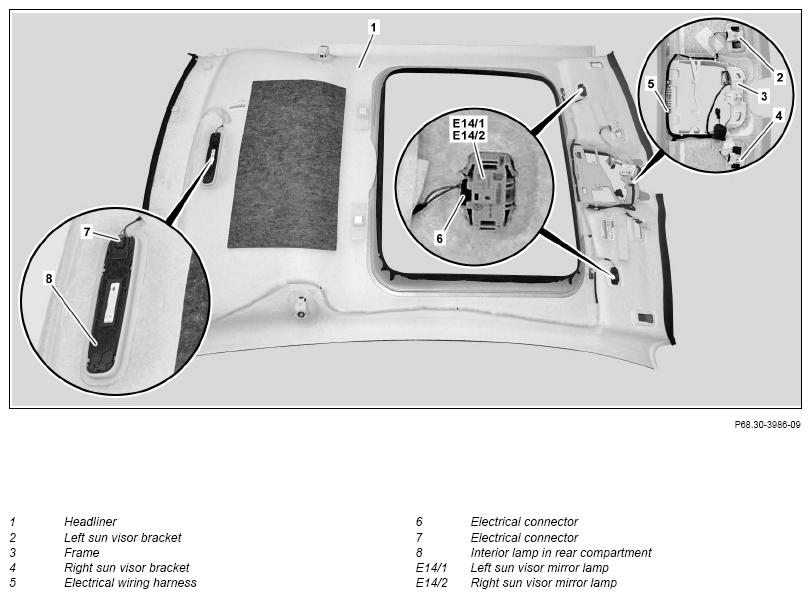

Remove left sun visor bracket (2) from old roof lining (1).
Electrical connector does not have to be disconnected.
Remove right sun visor bracket (4) from old roof lining (1).
Electrical connector does not have to be disconnected.
Disconnect electrical connectors (6) and remove left sun visor mirror lamp (E14/1) and right sun visor mirror lamp (E14/2) from old headliner (1).
Disconnect electrical connector (7) and remove interior lamp in rear (8) from old roof lining (1).
Detach electrical wiring harness (5) from frame (3).
Expose electrical wiring harness (5) on old headliner (1) and remove.
: Fasten electrical wiring harness (5) with adhesive tape.

Observe routing of lines.
Realize cutout in new roof lining (1) at inner edge of embossing for interior lamp in rear (8).
Install detachable parts on new headliner (1) in reverse order.
Model 238.3
with code 494 (US version)

Install new dampings on new roof lining (1).

The installation locations and number of dampings must be taken over from old roof lining (1).
