Detach/Attach A-Pillar Trim - AR68.30-P-4050-03LW

Model 205.4

Model 238.4

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

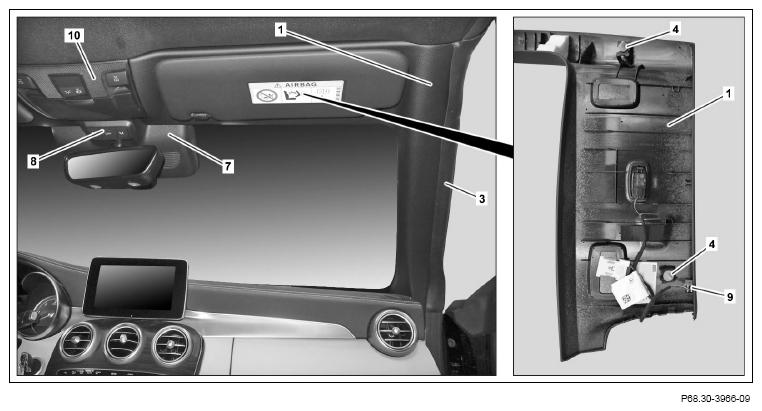

Shown on right side of vehicle, model 205.4

1. Detach cover (7).
2. Unclip cover (8).
3. Remove cover (7).

   Model 205.4, 238.4

   with code 351 (Emergency call system (HERMES))

   It is not necessary to disconnect the electrical connector from the emergency call system button group.

4. Detach edge guard (3) in area of A-pillar paneling (1).

   : Ensure that edge guard (3) is seated correctly.

5. Unclip A-pillar paneling (1) from the retaining clips (4) with long wedge.
6. Model 238.4

   Remove top A-pillar paneling (1) until electrical connector of hands-free system microphone can be disconnected.

7. Model 238.4

   Disconnect electrical connector of hands-free system microphone.

8. Model 205.4

   with code 876 (Interior Light package)

   Model 238.4

   Disconnect electrical connector (9) from overhead control panel (10).

9. Pull A-pillar paneling (1) towards rear and up out of instrument panel, and remove.
10. Install in the reverse order.
