Remove/Install Radiator Grille - AR88.40-P-4001LWE

Model 205, 213

except code P23 (EXCLUSIVE exterior)

Model 238, 253 (except 253.388/389/988/989)

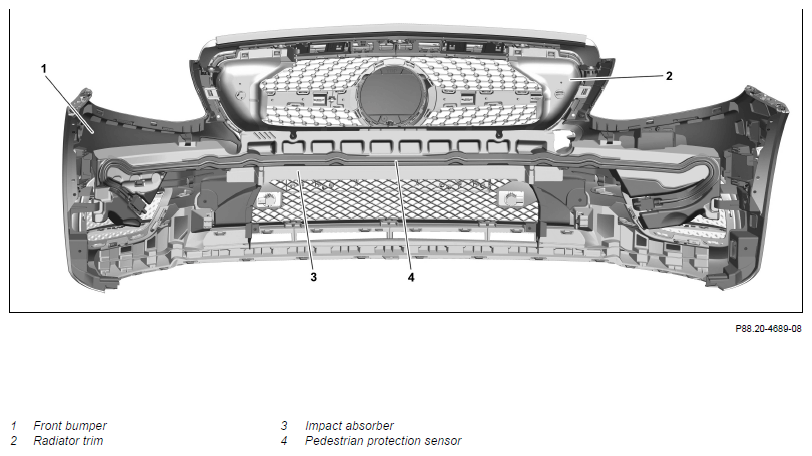

G15379271

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove Front Bumper (1)	Model 205 except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989)	AR88.20-P-2000LW
		Model 213 except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) except code P31 (AMG Line exterior)	AR88.20-P-2000LWE
2	Disconnect electrical connectors from pedestrian protection sensor (4)	Model 205, 213 with code U60 (Active Hood (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) with code U60 (Active Hood (Pedestrian protection)) except code P31 (AMG Line exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Hood (Pedestrian protection))
3	Remove impact absorber (3)
Topical note	Notes on pedestrian protection sensor	Model 205 with code U60 (Active Hood (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Hood (Pedestrian protection))	AH91.60-P-0001-01A
Topical note	General information on the impact absorber	Model 205, 213 with code U60 (Active Hood (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) with code U60 (Active Hood (Pedestrian protection)) except code P31 (AMG Line exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Hood (Pedestrian protection)) Assembly: Ensure that hose of pedestrian protection sensors (4) is seated correctly in impact absorber (3). If complaint present ↓ Correctly route hose of pedestrian protection sensor (4).	AH88.20-P-1000-01A
		Model 205 with code U60 (Active Hood (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 253 (except 253.388/389/988/989) with code U60 (Active Hood (Pedestrian protection))	AR91.60-P-0950LW
		Model 213 with code U60 (Active Hood (Pedestrian protection)) except code P23 (EXCLUSIVE exterior) Model 238 (except 238.361/461) with code U60 (Active Hood (Pedestrian protection)) except code P31 (AMG Line exterior)	AR91.60-P-0950LWE
4	Remove radiator trim (2) from Front Bumper (1)
5	Install in the reverse order
