Adjust Front Bumper - AR88.20-P-2001LW
Model 205, 213, 238
Shown on model 205 with code P76 (Standard equipment, Exterior)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, Trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Check adjustment of Front Bumper (1). | Model 205 | AR60.00-P-0700-01LW |
| Model 213 | AR60.00-P-0700-01LWE | ||
| Model 238 | AR60.00-P-0700-01LWO | ||
| Model 205 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01BB | ||
| Model 205 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01BB | ||
| Model 205 Engine hood to bumper | *BE60.00-P-1005-01BB | ||
| Model 205 Bumper to headlamp | *BE60.00-P-1006-01BB | ||
| Model 213 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01GA | ||
| Model 213 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01GA | ||
| Model 213 Engine hood to bumper | *BE60.00-P-1005-01GA | ||
| Model 213 Bumper to headlamp | *BE60.00-P-1006-01GA | ||
| Model 238 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01HA | ||
| Model 238 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01HA | ||
| Model 238 Engine hood to bumper | *BE60.00-P-1005-01HA | ||
| Model 238 Bumper to headlamp | *BE60.00-P-1006-01HA | ||

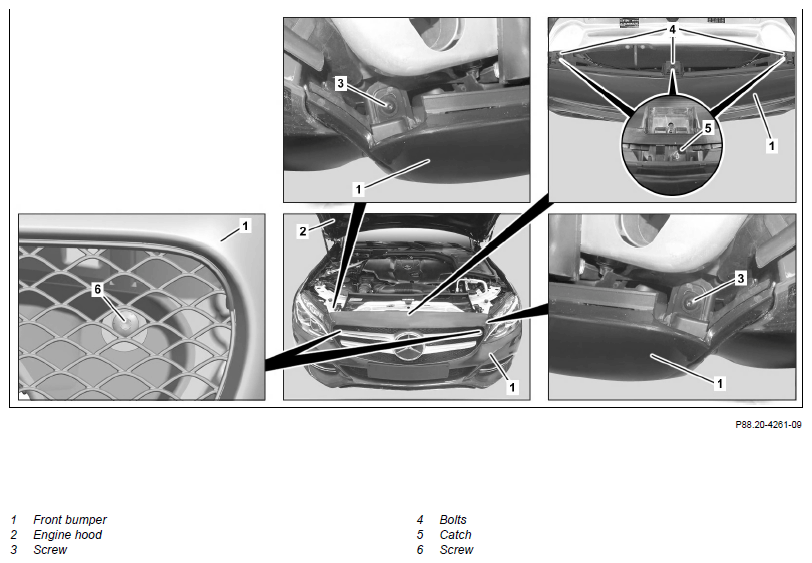

| Fig 1 | |||
| Adjust | |||
| 2 | Open hood (2). | ||
| 3 | Loosen screws (3, 4). | ||
| 4 | Release Front Bumper (1) from arrests (5) and pull toward Front. | ||
| 5 | Switch on ignition. | Model 205 with code 5U3 (AIRPANEL) |
|
| 6 | Release screws (6). | Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487), 213, 238 | |
| 7 | Close hood (2). | ||
| 8 | Adjust Front Bumper (1) in relation to hood (2) and headlamps. | Model 205 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01BB |
| Model 205 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01BB | ||
| Model 205 Engine hood to bumper | *BE60.00-P-1005-01BB | ||
| Model 205 Bumper to headlamp | *BE60.00-P-1006-01BB | ||
| Model 213 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01GA | ||
| Model 213 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01GA | ||
| Model 213 Engine hood to bumper | *BE60.00-P-1005-01GA | ||
| Model 213 Bumper to headlamp | *BE60.00-P-1006-01GA | ||
| Model 238 Engine hood to radiator trim/ Soft nose | *BE60.00-P-1003-01HA | ||
| Model 238 Protrusion of radiator trim/ Soft nose, Engine hood | *BE60.00-P-1004-01HA | ||
| Model 238 Engine hood to bumper | *BE60.00-P-1005-01HA | ||
| Model 238 Bumper to headlamp | *BE60.00-P-1006-01HA | ||
| Fig 1 | |||
| 9 | Open hood (2). | ||
| 10 | Tighten screws (3, 4). | ||
| 11 | Tighten screws (6). | Model 205 (except 205.064/086/087/264/286/287/364/386/387/464/486/487), 213, 238 | |
| 12 | Close hood (2). | ||
| 13 | Switch off ignition. | Model 205 with code 5U3 (AIRPANEL) | |
| Calibrate | |||
| 14 | Calibrate 360° camera with diagnosis system. | ||
| Model 205, 213 with code 501 (360° camera) | AD00.00-P-2000-04B | ||
| Model 238 with code 501 (360° camera) | AD00.00-P-2000-06LWO |
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.0/1 | Model 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01BB | Engine hood to radiator trim/soft nose | Dimension "C" | mm | 3, 5 (± 1) | 3, 5 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.3 | Model 205.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01BB | Engine hood to radiator trim/soft nose | Dimension "C" | mm | 3, 5 (± 1) | 3, 5 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01GA | Engine hood to radiator trim/soft nose | Dimension "C" | mm | 3, 6 (± 0, 8) | 3, 6 (± 0, 8) |
| For picture, see | AR60.00-P-0700-01LWE | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 238.3 | Model 238.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01HA | Engine hood to radiator trim/soft nose | Dimension "C" | mm | 3, 5 (± 0, 5) | 3, 5 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01LWO | AR60.00-P-0700-01LWO | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.0/1 | Model 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01BB | Protrusion of radiator trim/soft nose, engine hood | Dimension "C" | mm | 1 (± 1) | 1 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.3 | Model 205.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01BB | Protrusion of radiator trim/soft nose, engine hood | Dimension "C" | mm | 1 (± 1) | 1 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01GA | Protrusion of radiator trim/soft nose, engine hood | Dimension "C" | mm | 1 (± 1) | 1 (± 1) |
| For picture, see | AR60.00-P-0700-01LWE | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 238.3 | Model 238.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01HA | Protrusion of radiator trim/soft nose, engine hood | Dimension "C1" | mm | 1, 5 (± 1) | 1, 5 (± 1) |
| For picture, see | AR60.00-P-0700-01LWO | AR60.00-P-0700-01LWO | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.0/1 | Model 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01BB | Engine hood to bumper | Dimension "D" | mm | 4 (± 1) | 4 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.3 | Model 205.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01BB | Engine hood to bumper | Dimension "D" | mm | 4 (± 1) | 4 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01GA | Engine hood to bumper | Dimension "D" | mm | 3, 8 (± 1) | 3, 8 (± 1) |
| For picture, see | AR60.00-P-0700-01LWE | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 238.3 | Model 238.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01HA | Engine hood to bumper | Dimension "D" | mm | 4, 5 (± 1) | 4, 5 (± 1) |
| For picture, see | AR60.00-P-0700-01LWO | AR60.00-P-0700-01LWO | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.0/1 | Model 205.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01BB | Bumper to headlamp | Dimension "E" | mm | 2 (± 1) | 2 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 205.3 | Model 205.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01BB | Bumper to headlamp | Dimension "E" | mm | 2 (± 1) | 2 (± 1) |
| For picture, see | AR60.00-P-0700-01LW | AR60.00-P-0700-01LW | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 213.0/1 | Model 213.2 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01GA | Bumper to headlamp | Dimension "E" | mm | 2 (± 0, 75) | 2 (± 0, 75) |
| For picture, see | AR60.00-P-0700-01LWE | AR60.00-P-0700-01LWE | |||
CHECK VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 238.3 | Model 238.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01HA | Bumper to headlamp | Dimension "E" | mm | 2 (± 0, 5) | 2 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01LWO | AR60.00-P-0700-01LWO | |||
