Replace Partial Main Floor - Ar63.40-P-1180LWO
Model 238

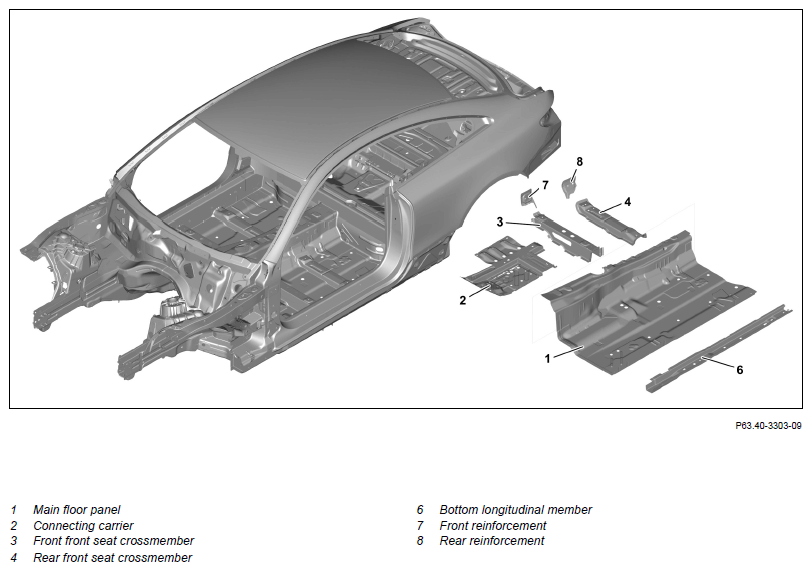

Fig 1: Partial Main Floor Pan, Lower Longitudinal Member, Crossmembers And Adjacent Component Locations (Model 238)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX | |
| General information on repair of vehicles with ultra-strength steels. | AH60.00-P-0024-01N | ||
| General information on MB materials | AH98.00-P-9409-03A | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining in vehicle with spark protection blanket | ||
| 3 | Remove main floor (1), connecting carrier (2), front seat crossmember (3), rear front seat crossmember (4), bottom longitudinal member (6), front reinforcement (7) and rear reinforcement (8) | AR63.40-P-1180-24LWO | |
| 000 588 00 84 00 Heat gun | Round wire brush Spot weld milling machine Body power jigsaw Drill bit and milling cutter for high-strength steels Wet/dry vacuum cleaner |
WS54.00-P-0049B | |
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| 4 | Prepare main floor (1), connecting carrier (2), bottom longitudinal member (6) and front reinforcement (7) | Round wire brush Body power jigsaw |
AR63.40-P-1180-26LWO |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Notice | Measures for preventing damage to components when performing electric welding and soldering work | AH60.00-P-0001-02A | |
| General information on riveting | AH60.00-P-0003-01N | ||
| 5 | Install main floor (1), connecting carrier (2), front seat crossmember (3), rear front seat crossmember (4), bottom longitudinal member (6), front reinforcement (7) and rear reinforcement (8) | AR63.40-P-1180-27LWO | |
| 000 588 02 84 00 Welder | Drill bit for high-strength steels Manual temporary fastener 6.35 mm Blind rivet gun (minimum pull-off force 19 kN) Wet/dry vacuum cleaner |
WS60.00-P-0022K | |
| Countersunk-head blind rivet Z2 6.4 x 15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1044-13A | ||
| Blind rivet Y4 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) | *BR00.45-Z-1032-13A | ||
| 1K-zinc dust paint | *BR00.45-Z-1056-07A | ||
| Parts kit for 2-component adhesive for body | *BR00.45-Z-1162-02A | ||
| Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1012-13A | ||
| Blind rivet Y3 6.5 x 14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | *BR00.45-Z-1016-13A | ||
| Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | *BR00.45-Z-1035-13A | ||
| 6 | Clean welds and sheet metal flanges | Round wire brush |
|
| 7 | Remove spark protection blankets | ||
| 8 | Clean repair area | Wet/dry vacuum cleaner |
|
| 9 | Prime repair area using primer filler | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 10 | Seal seam following repairs | AR97.10-P-4000LWO | |
| 11 | Paint repair areas and adjacent surfaces | ||
| Notice | Notes on paintwork repairs | AH98.00-P-9408-02A | |
| General information on operation items and work procedures for painting | AH98.00-P-0003-01A | ||
| 12 | Add cavity preserving agent | AR97.20-P-1500LWO | |
| 13 | Install all detachable body components in area to be repaired |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1016-13A | Blind rivet Y3 6.5 x 14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) | A 004 990 17 97 |
| BR00.45-Z-1032-13A | Blind rivet Y4 6.4 M6 (clamping range 5.82 mm to 7.82 mm, draw-off strength min. 16 kN) | A 003 990 81 97 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1044-13A | Countersunk-head blind rivet Z2 6.4 x 15.5 (clamping range 3 mm to 5 mm, draw-off strength min. 15.5 kN) | A 000 991 83 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
