Prepare Rear Wheel Well Section For Installation - Ar63.10-P-0662-02LWO

Model 238

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

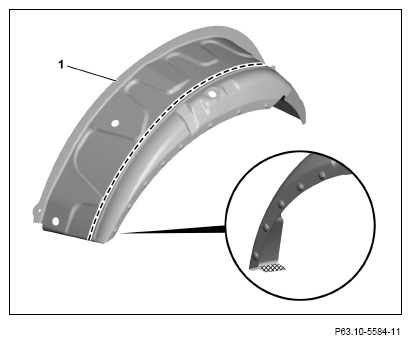

1. Mark separating point on outer rear wheel well (1) and cut.

   Transfer separation point from vehicle and add approx. 2 cm for overlap.

2. Remove remaining piece from outer rear wheel well (1).
3. Grind mating surface on outer rear wheel well (1) down to bare metal in cross-hatched areas.

   Observe preliminary treatment of bonding surface.

4. Remove grinding dust.
