Partially Separate Side Wall Reinforcement - Ar63.20-P-0861-01LWO
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
Model 238
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

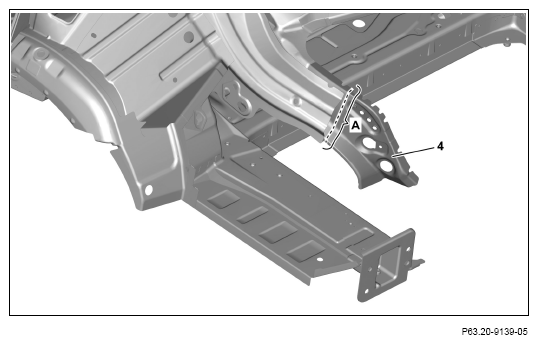

- Mark separating point on side wall reinforcement (4) and cut (area A).
The separation point is freely selectable according to the damage.
Observe standard series production joining and bonded connections.
- Remove side wall reinforcement (4).

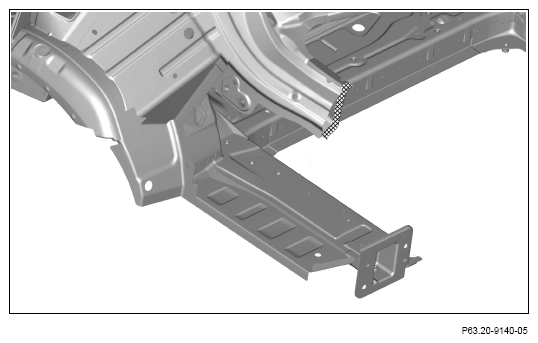

- Grind mating surface down to bare metal in cross-hatched area.
- Remove grinding dust.
