Partially Remove Side Longitudinal Member Paneling - Ar63.30-P-1040-01LWO

Model 238.3

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

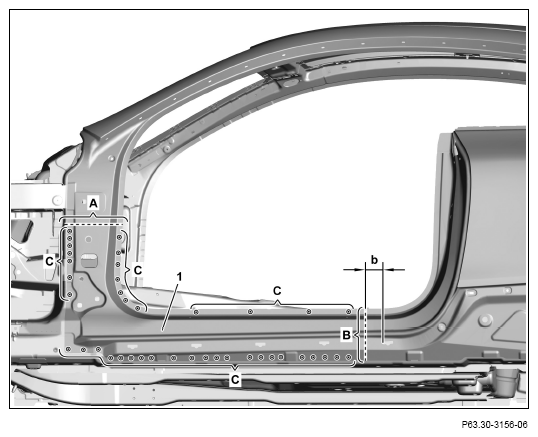

1. Mark separating points on longitudinal member paneling (1) and cut (areas A and B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Transfer separating point from replacement part (area A).

   Dimensions:

   b approx 60 mm

   The separation points can be selected freely according to the damage.

2. Expose spot welds on longitudinal member paneling (1) and cut out (areas C)

   Courtesy of MERCEDES-BENZ USA

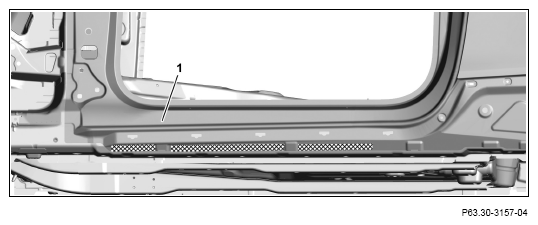

3. Heat longitudinal member paneling (1) in cross-hatched areas.

   Cross-hatched areas are bonded with adhesive.

4. Remove longitudinal member paneling (1)

   Courtesy of MERCEDES-BENZ USA

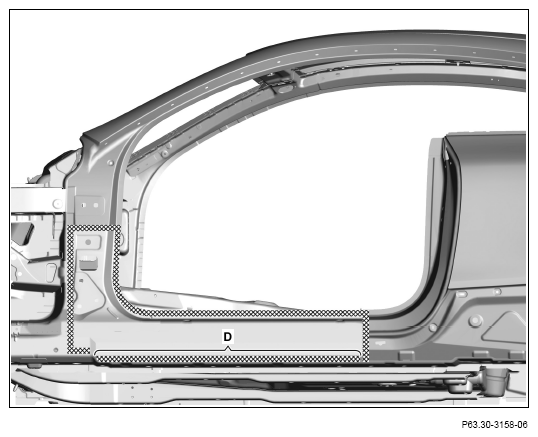

5. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.

   Do not apply zinc dust paint to bonding surfaces (area D).

   Otherwise adhesion problems may occur.

Courtesy of MERCEDES-BENZ USA
