Partially Remove Main Floor Panel - Ar63.40-P-1180-24LWO
Model 238
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

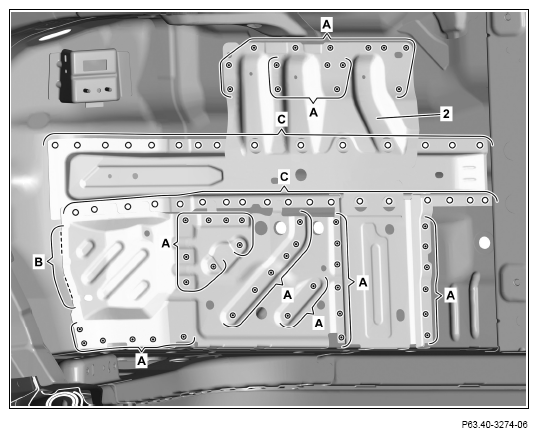

- Expose spot welds on connecting carrier (2) and cut out (areas A).
- Expose spot welds on connecting carrier (2) and drill with Ø 6.5 mm (areas C).
- Expose inert gas welds on connecting carrier (2) and cut (area B).

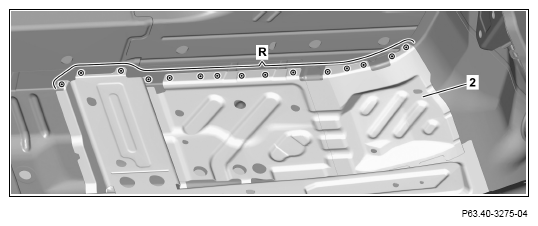

- Expose spot welds on connecting carrier (2) and cut out (areas R).
Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.
- Expose spot welds on bottom longitudinal member (6) and drill with Ø 6.5 mm bit (areas P).

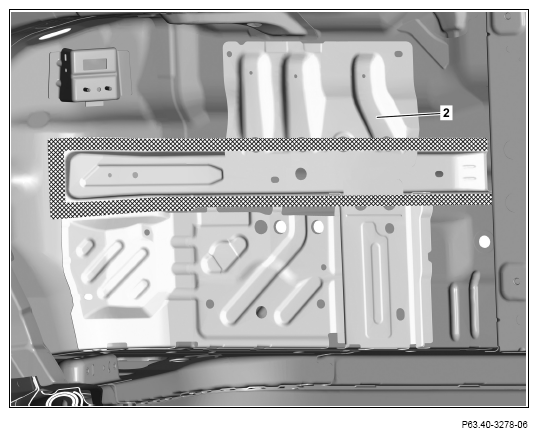

- Heat connecting carrier (2) in crosshatched area.
Cross-hatched area is bonded.
- Remove connecting carrier (2).

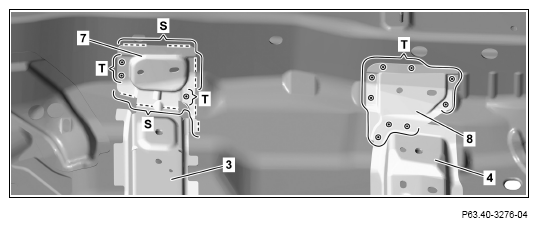

- Expose spot welds on front reinforcement (7) and rear reinforcement (8) and cut out (areas T).
- Expose inert gas welds on front reinforcement (7) and cut (areas S).
- Expose inert gas weld seam on rear front seat crossmember (4) and cut (area D).

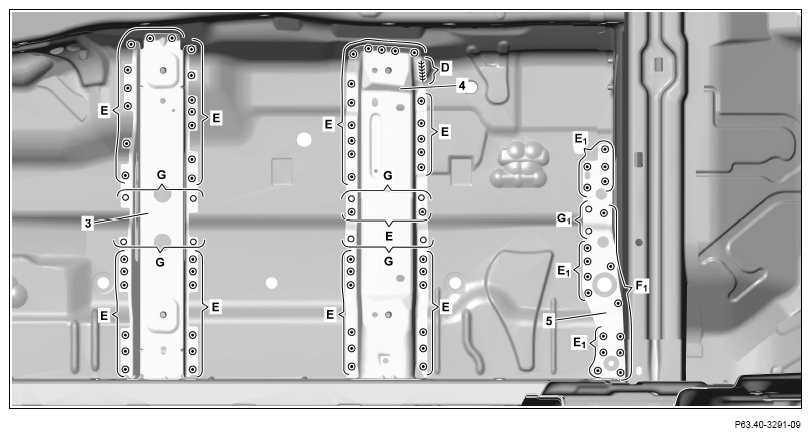

- Expose spot welds on front front seat crossmember (3) rear front seat crossmember (4) and reinforcement (5) and cut out (areas E, E1
and F1
).
Cut out spot welds from below (areas E1 and F1 ).
- Expose spot welds on front front seat crossmember (3), rear front seat crossmember (4) and reinforcement (5) and drill with Ø 6.5 mm (areas G and G1 ).

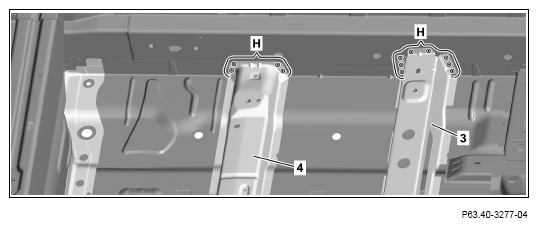

- Expose spot welds on front front seat crossmember (3) and rear front seat crossmember (4) and cut out (areas H).
Joint spot welds on panels that are one behind the other must be cut out through two panel thicknesses.
- Remove front front seat crossmember (3) and rear front seat crossmember (4).

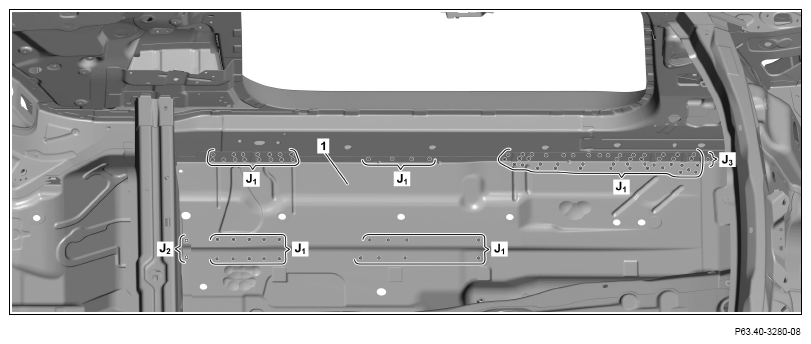

- Expose spot welds on main floor (1) and cut out (areas J1 and J3 ).
- Expose spot welds on main floor (1) and drill with Ø 6.5 mm bit (area J2
).
- Expose spot welds on bottom longitudinal member (6) and cut out (areas K).
- Heat bottom longitudinal member (6) in crosshatched areas.
Cross-hatched areas are bonded with adhesive.
- Remove bottom longitudinal member (6).

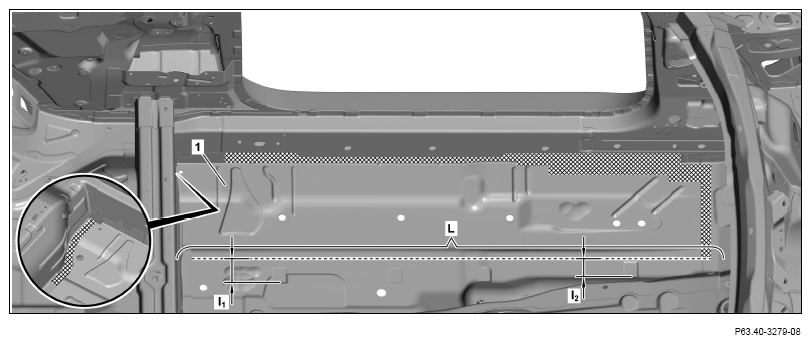

- Mark separating on main floor (1) and cut (area L).
Do not cut too deeply.
Otherwise the components below can be damaged and weakened.
Dimensions :
11 = approx.. 70 mm
12 = approx. 55 mm
- Heat main floor panel (1) in cross-hatched areas.
Cross-hatched areas are bonded with adhesive.
- Remove main floor panel (1).

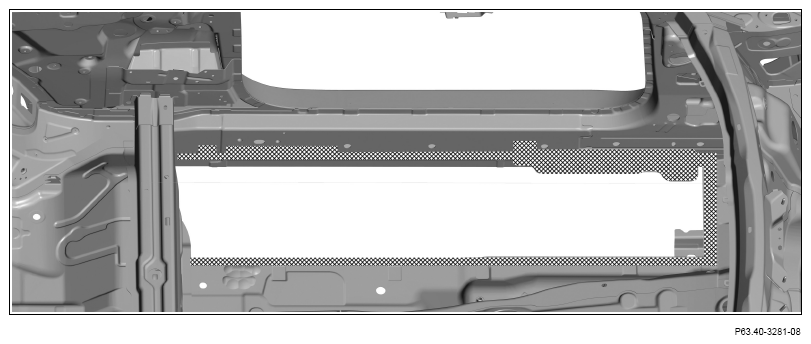

- Grind mating surfaces down to bare metal in crosshatched area.
- Remove grinding dust and drill chips.
Observe pretreatment of bonding surfaces.
- Sand down mating surfaces to bare metal in cross-hatched areas.
- Remove grinding dust and drill chips.
- Apply zinc dust paint to crosshatched areas.
Do not coat bonding surfaces with zinc dust paint (areas N).
Otherwise adhesion problems may occur.
Observe pretreatment of bonding surfaces.
