Partially Prepare Side Wall Reinforcement For Installation - Ar63.20-P-0861-03LWO

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA

Model 238

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

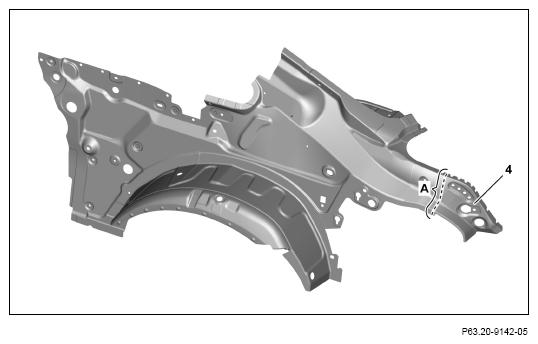

1. Mark separating point on side wall and cut (area A).

   Transfer separation point from vehicle.

2. Remove side wall reinforcement (4).

   Courtesy of MERCEDES-BENZ USA

3. Grind mating surfaces on side wall reinforcement (4) down to bare metal in crosshatched areas.
4. Remove grinding dust.

Courtesy of MERCEDES-BENZ USA
