Install Rear Wheel Well Section - Ar63.10-P-0662-03LWO
Model 238
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
The next steps are shown on the left side of the vehicle and must be performed in a similar manner on the right side of the vehicle in the event of damage. Depending on the damage it may be possible that it is not possible to set the rivet due to limited space. In this cases replace rivets by shielding gas plug welds.

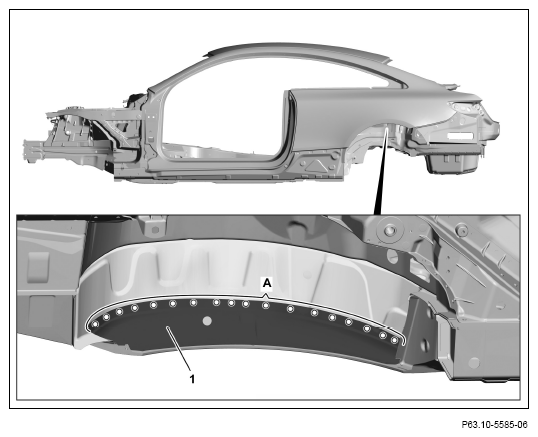

- Install section of outer rear wheel well (1), fit and fix in place.
- Drill Ø 6.7 mm rivet holes in outer rear wheel well section (1) (area A).
- Remove outer rear wheel well section (1).
- Deburr rivet holes on outer rear wheel well section (1) and body on both sides..
- Remove drill chips.
- Coat insides of riveted joints with zinc dust paint.

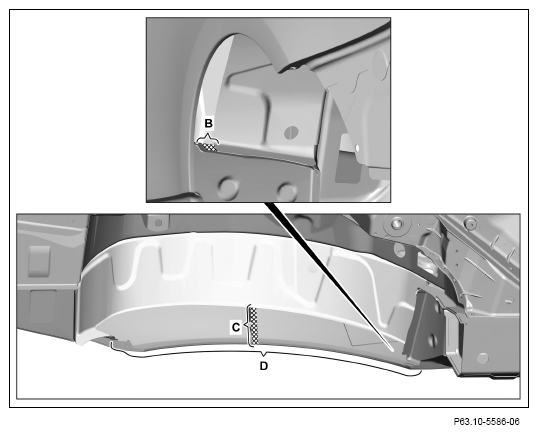

- Apply 2-component adhesive in crosshatched area on body (area B).
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Apply sealant to rear fender and foam part (areas B and C).
- Install outer rear wheel well section (1) and fix in place.

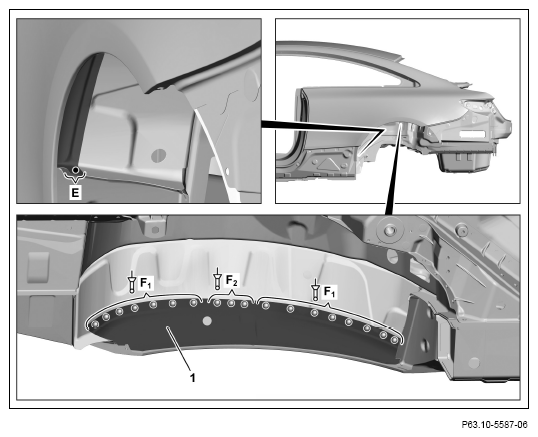

- Rivet outer rear wheel well section (1) with Ø 6.4x12 rivet (areas F1
).
- Rivet outer rear wheel well section (1) with Ø 6.4x12 (areas F2
).
- Outer rear wheel well section (1)
(area E).
