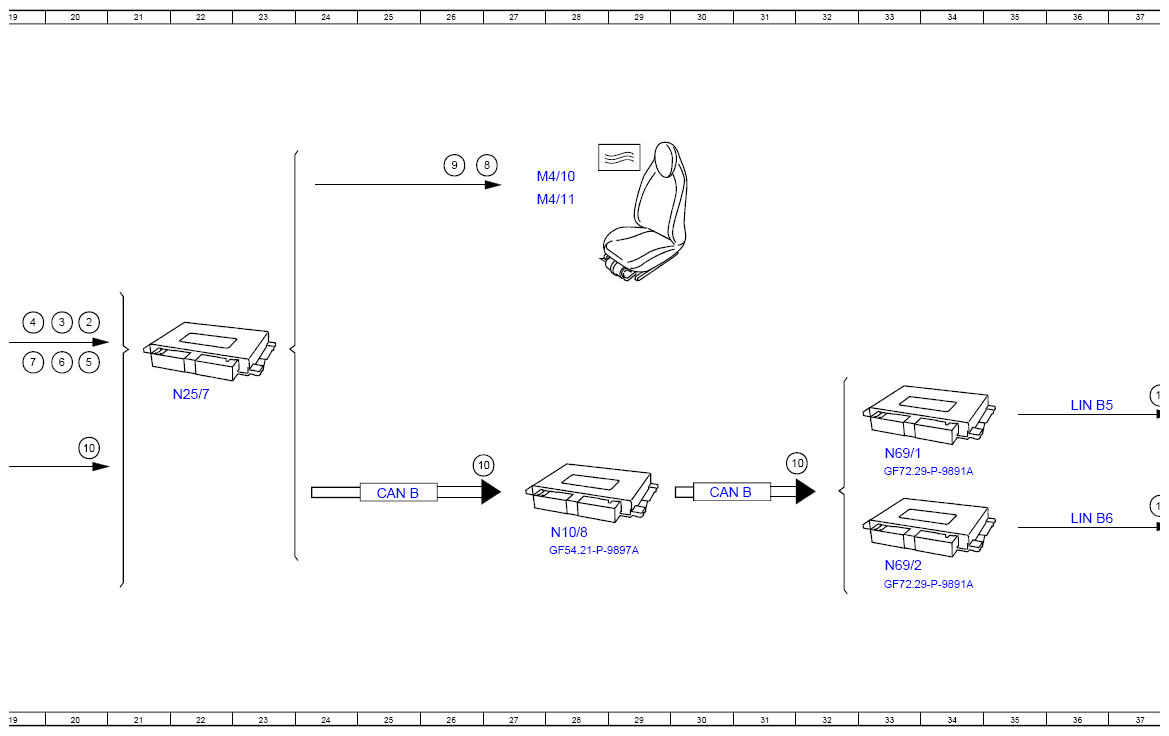

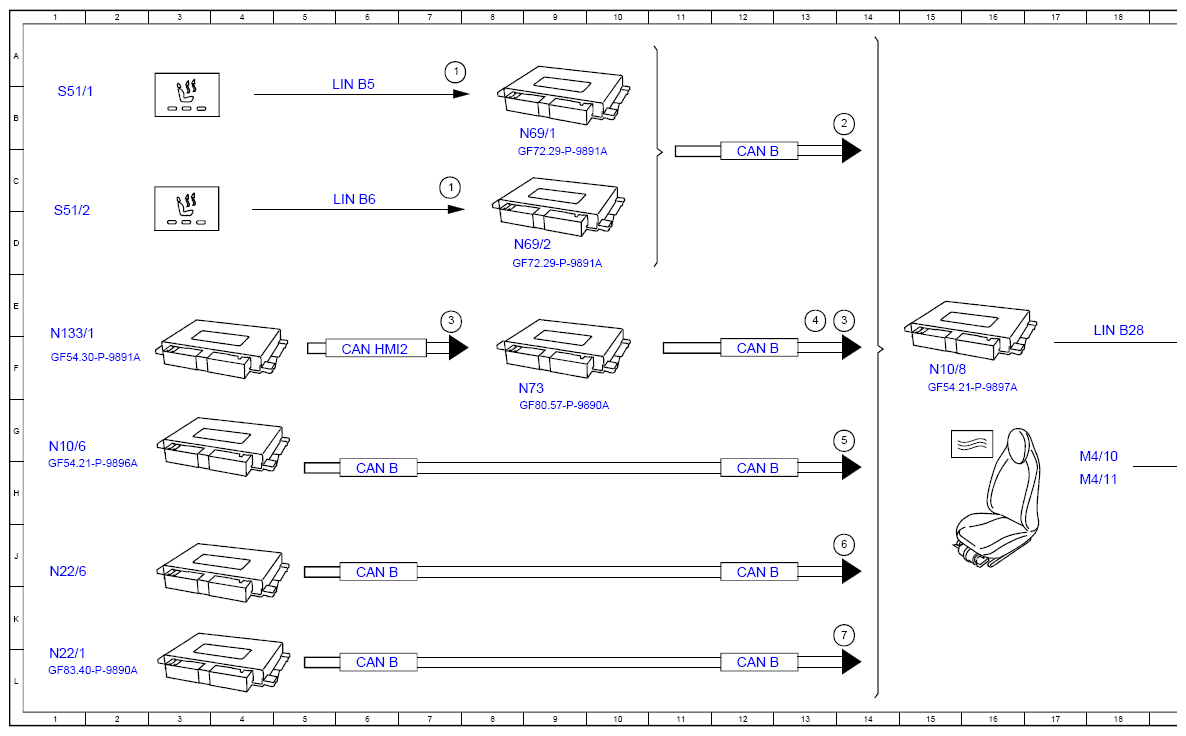

Function Schematic For Switching On Head Area Heating - PE91.30-P-2505-97A
Model 238 as of model year 2021
with code 403 (Heating in head area)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | AIRSCARF switch, status | 7A |
| 1 | AIRSCARF switch, status | 7C |
| 10 | AIRSCARF, status | 26G |
| 10 | AIRSCARF, status | 20G |
| 10 | AIRSCARF, status | 32G |
| 10 | AIRSCARF, status | 37F |
| 10 | AIRSCARF, status | 37H |
| 2 | AIRSCARF, request | 14B |
| 2 | AIRSCARF, request | 20E |
| 3 | Vehicle speed, signal | 14E |
| 3 | Vehicle speed, signal | 7E |
| 3 | Vehicle speed, signal | 20E |
| 4 | Circuit 15, status | 13E |
| 4 | Circuit 15, status | 19E |
| 5 | Outside temperature, signal | 14G |
| 5 | Outside temperature, signal | 20F |
| 6 | Soft top position, status | 14J |
| 6 | Soft top position, status | 20F |
| 7 | Interior temperature, signal | 14K |
| 7 | Interior temperature, signal | 19F |
| 8 | AIRSCARF heating element, actuation | 27C |
| 9 | AIRSCARF fan motor, actuation | 26C |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 25H |
| CAN B | Interior CAN | 12L |
| CAN B | Interior CAN | 6L |
| CAN B | Interior CAN | 12J |
| CAN B | Interior CAN | 6J |
| CAN B | Interior CAN | 12H |
| CAN B | Interior CAN | 6H |
| CAN HMI2 | User interface CAN 2 | 6F |
| LIN B28 | Heater LIN | 18E |
| LIN B5 | Left front door LIN | 6B |
| LIN B5 | Left front door LIN | 36G |
| LIN B6 | Right front door LIN | 6C |
| LIN B6 | Right front door LIN | 36H |
| M4/10 | Left AIRSCARF fan motor | 17G |
| M4/10 | Left AIRSCARF fan motor | 27C |
| M4/11 | Right AIRSCARF fan motor | 17H |
| M4/11 | Right AIRSCARF fan motor | 27C |
| N10/6 | Front SAM control unit | 1G |
| N10/8 | Rear SAM control unit | 15F |
| N10/8 | Rear SAM control unit | 28J |
| N133/1 | Instrument cluster control unit | 1F |
| N22/1 | Climate control control unit | 1L |
| N22/6 | Rear control unit | 1J |
| N25/7 | AIRSCARF control unit | 22F |
| N69/1 | Left front door control unit | 9B |
| N69/1 | Left front door control unit | 33G |
| N69/2 | Right front door control unit | 9D |
| N69/2 | Right front door control unit | 33J |
| N73 | Electronic ignition switch control unit | 9F |
| S51/1 | Left front seat climate control switch group | 1B |
| S51/1 | Left front seat climate control switch group | 38G |
| S51/2 | Right front seat climate control switch group | 1D |
| S51/2 | Right front seat climate control switch group | 38J |
