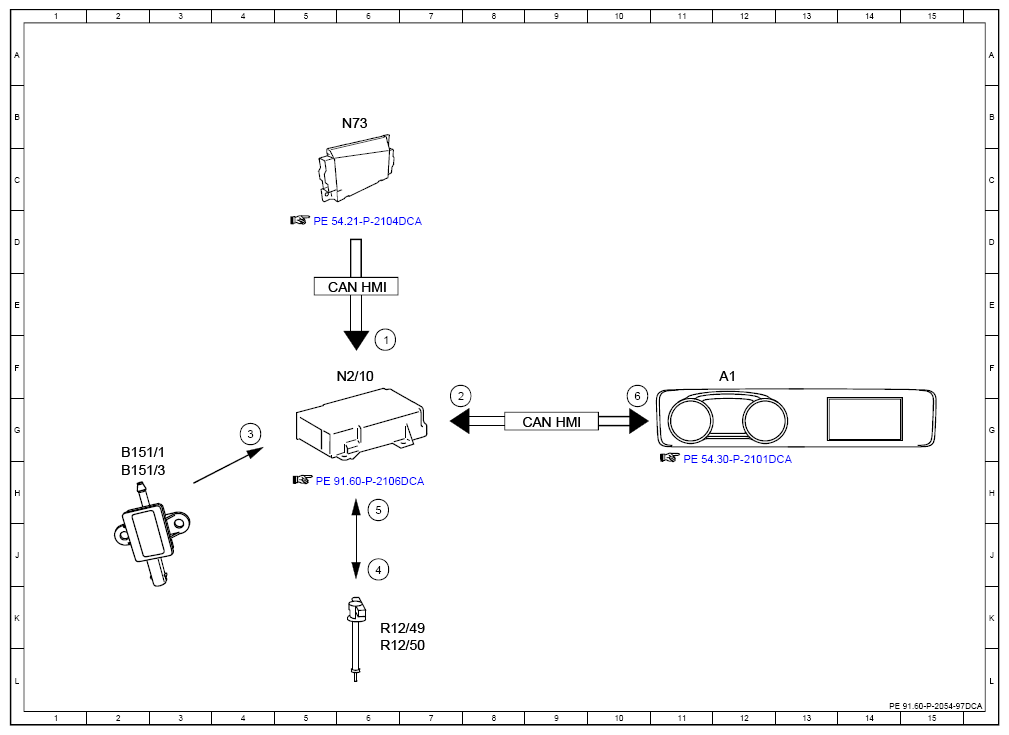

Function Schematic For Electric Pedestrian Protection - PE91.60-P-2054-97DCA
Model 238 up to model year 2021 with code U60 (Pedestrian protection - Active hood)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 6F |
| 2 | Vehicle speed, signal | 7G |
| 3 | Pedestrian protection sensor, status | 4G |
| 4 | Squib, actuation | 6J |
| 5 | Active engine hood squib, status | 6H |
| 6 | Instrument cluster message, request | 10G |
| A1 | Instrument cluster | 12F |
| B151/1 | Left front bumper pedestrian protection sensor | 2G |
| B151/3 | Right front bumper pedestrian protection sensor | 2H |
| CAN HMI | User interface CAN | 6E |
| CAN HMI | User interface CAN | 9G |
| N2/10 | Supplemental restraint system control unit | 5F |
| N73 | Electronic ignition switch control unit | 6B |
| R12/49 | Left active engine hood squib | 6K |
| R12/50 | Right active engine hood squib | 6L |
