Remove/Install Locking Mechanism For Folding Rear Seat Backrest - AR91.12-P-1730LW
Model 205.0/1/3
With Code 287 (Through-loading feature)
Model 238.3
Shown on model 205.0
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Release left or right backrest and fold forward | ||

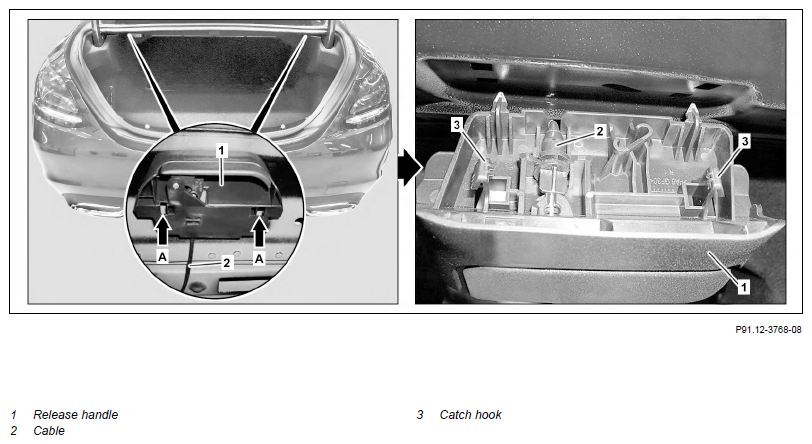

| 2 | Press catch hooks (3) inwards through large openings (arrows A) in release handle (1) and remove left or right release handle (1) | ||
| 3 | Unhook cable (2) at release handle (1) | ||
| 4 | Detach cable (2) from body | ||

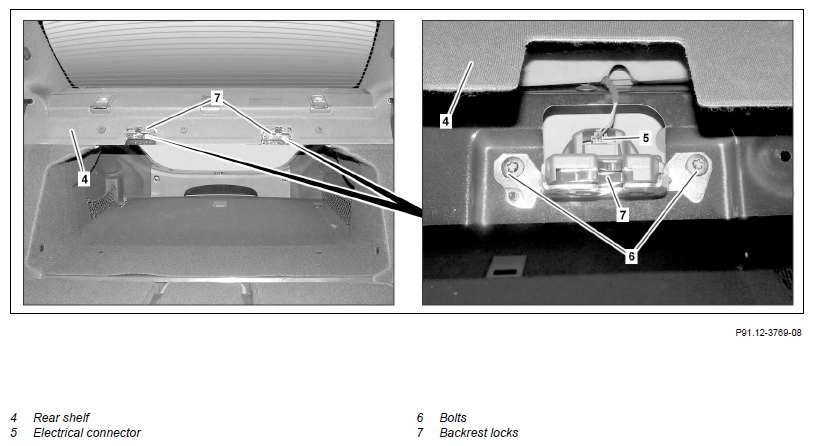

| 5 | Release rear shelf (4) in area of left or right backrest locking (7) and lift | Model 238.3 | AR68.30-P-4581LWO |
| Model 205.3 with code 287 (Through-loading feature) | AR68.30-P-4581CLW | ||
| Model 205.0/1 with code 287 (Through-loading feature) | AR68.30-P-4581LW | ||
| 6 | Disconnect electrical connection (5) | ||
| 7 | Remove bolts (6) | *BA91.12-P-1002-03M | |
| 8 | Remove backrest locking (7) with cable (2) | ||
| 9 | Install in the reverse order |
REAR SEATS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.12-P-1002-03M | Bolt, backrest lock to upper cross member | Nm | 20 | 20 |
REAR SEATS
| Number | Designation | Model 205.3 | Model 238.3 | |
|---|---|---|---|---|
| BA91.12-P-1002-03M | Bolt, backrest lock to upper cross member | Nm | 20 | 20 |
