Remove/Install Left Rear Seat Backrest Cover - AR91.18-P-1874LWE
Model 213.0
With Code 287 (Through-loading feature)
Model 213.2, 238.3
Shown on model 213.0 With Code 287 (Folding rear seat backrests)
| Remove/install | |||
| 1 | Remove pivot bearing of left backrest with left rear backrest inclination switch | AR91.29-P-1772LW | |
| 2 | Remove head restraint guides | AR91.16-P-1775LW | |
| 3 | Unclip the cover (2) | Model 213.0 with code 287 (Through-loading feature) Model 213.2 |
|
| Fig 1 | |||

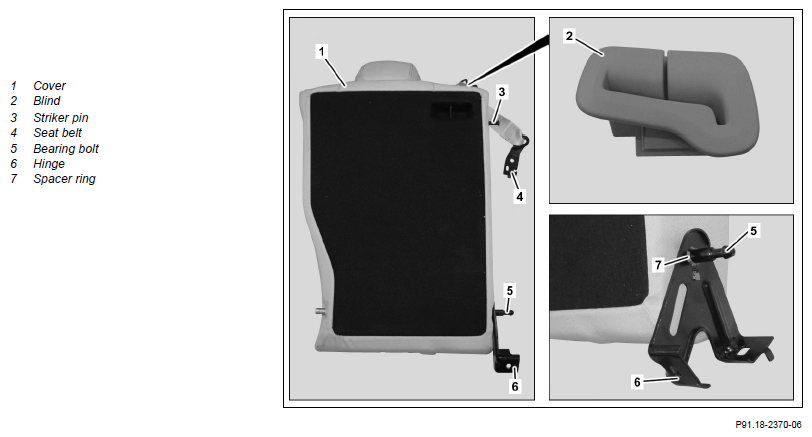

| 4 | Remove pivot bearing (6) from bearing pin (5) | Otherwise the spacer ring (7) may be damaged. |
|
| 5 | Unhook cover (1) from around backrest frame | ||
| Fig 2 | |||
| 6 | Guide electrical wiring harness of seat heater through the cover (1) | Model 213.0 with code 287 (Through-loading feature) with code 872 (Left and right rear seat heating) Model 213.2, 238.3 with code 872 (Left and right rear seat heating) |
|
| 7 | Remove seat backrest frame | ||
| 8 | Slip cover (1) over padding (8) while guiding it over bearing pin (5) and striker pin (3) | Otherwise the cover (1) may be damaged. |
|
| 9 | Guide cover (2) with seat belt (4) through cover (1) | Model 213.0 with code 287 (Through-loading feature) Model 213.2 |
|

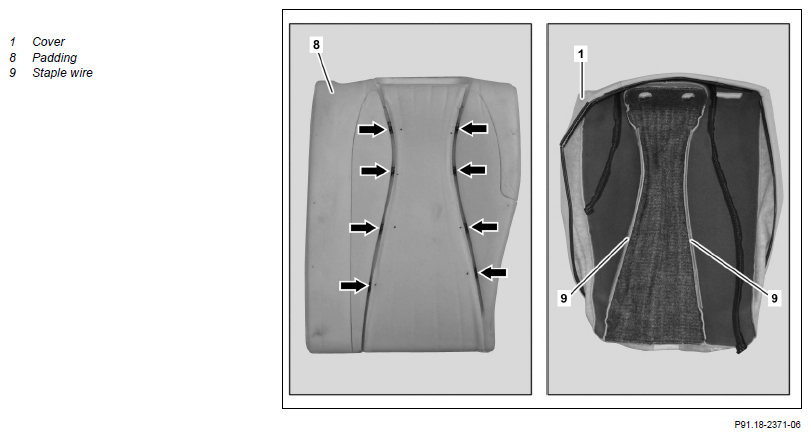

| 10 | Unclip staple wires (9) from holders (arrows) on padding (8) | Fig 3 | |
| 11 | Remove cover (1) from padding (8) | ||
| 12 | Install in the reverse order |
