Remove/Install Engine Hood Lifter - AR91.60-P-0900LW
Model 205, 213, 238, 253
With Code U60 (Pedestrian protection - Active hood)

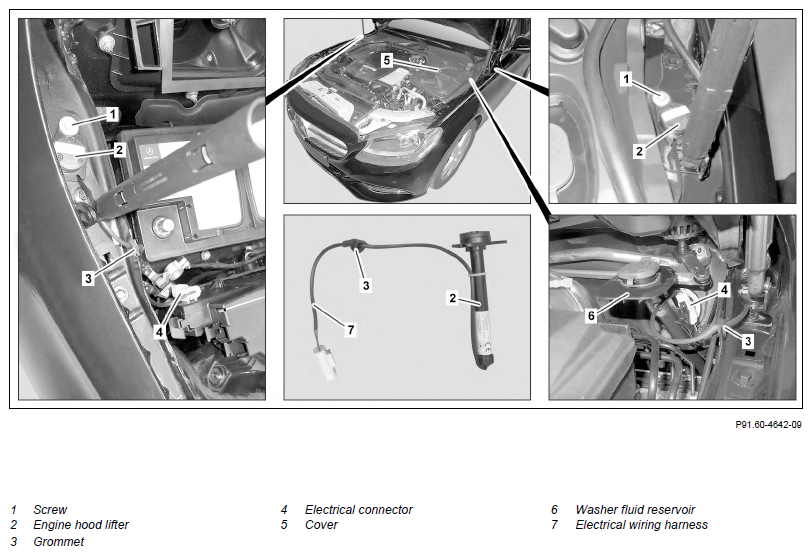

Shown on model 205
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | General information on the impact absorber | AH88.20-P-1000-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Check | |||
| 1 | Check hinge damper of hinges for deformation | With triggered engine hood lifter (2). In case of deformation ↓ Replace hinge of engine hood. |
|
| Model 213, 238, 253 with code U60 (Pedestrian protection - Active hood) Replace hinge damper. |
AR88.40-P-3060LW | ||
| Model 205 with code U60 (Pedestrian protection - Active hood) | AR91.60-P-0911LW | ||
| 2 | Remove the front impact absorber and check for damage or deformation | With triggered engine hood lifter (2). | |
| Model 205, 253 with code U60 (Pedestrian protection - Active hood) | AR91.60-P-0950LW | ||
| Model 213, 238 with code U60 (Pedestrian protection - Active hood) If damaged or deformed ↓ Replace impact absorber and pedestrian protection sensor. |
AR91.60-P-0950LWE | ||
| Remove/install | |||
| 3 | Disconnect battery ground line | Model 238 with code U60 (Pedestrian protection - Active hood) | AR54.10-P-0003LWO |
| Model 205, 213, 253 with code U60 (Pedestrian protection - Active hood) | AR54.10-P-0003LW | ||
| 4 | Release cover (5) on left side and lift until electrical connector (4) of left engine hood lifter (2) is accessible | When removing engine hood lifter (2) on left side of vehicle. | |
| 5.1 | Remove and disconnect left electrical connector (4) from washer fluid reservoir (6) | When removing engine hood lifter (2) on left side of vehicle. | |
| 5.2 | Remove and disconnect right electrical connector (4) from pre-fuse box | When removing engine hood lifter (2) on right side of vehicle. | |
| 6 | Remove bolt (1) | *BA91.60-P-1002-02A | |
| 7 | Remove the engine hood lifter (2) upwards | Otherwise the electrical wiring harness (7) can be damaged. |
|
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check Supplemental Restraint System (SRS) with diagnostic system | ||
| Model 238 with code U60 (Pedestrian protection - Active hood) | AD00.00-P-2000-06LWO | ||
| Model 205, 213, 253 with code U60 (Pedestrian protection - Active hood) | AD00.00-P-2000-04B |
ENGINE HOOD LIFTER
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA91.60-P-1002-02A | Screw/nut, hood lifter to body | Nm | 10 | 10 |
ENGINE HOOD LIFTER
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.60-P-1002-02A | Screw/nut, hood lifter to body | Nm | 10 | 10 |
