Remove/Install Cup Holder - AR91.12-P-1621LWR
Model 205.4, 238
| Remove/install | |||
| 1 | Remove the seat cushion from the rear | Model 205.4 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238 |
AR91.12-P-1020LW |

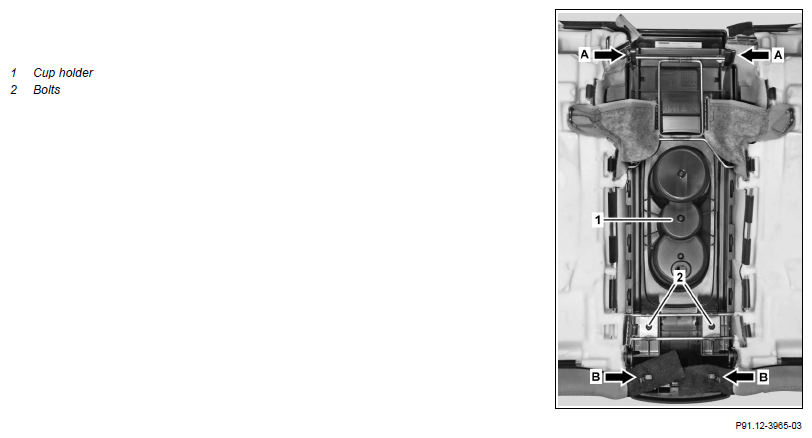

| 2 | Turn the seat cushion over and unhook the seat cover from the cup holder (1) (arrows B) | ||
| 3 | Remove bolts (2) | ||
| 4 | Unhook the cup holder (1) from the linkage of the seat cushion (arrows A) and remove | ||
| 5 | Install in the reverse order |
