Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97DEB
Model 238 as of model year 2021 with code P65 (Ergonomics package) Switch S22/1, S23/1
| Code: | Designation: | Position: |
|---|---|---|

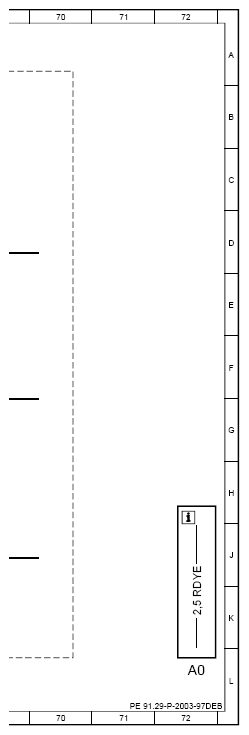

| A0 | Use of wiring diagrams | 72L |
| Code L | LEFT-HAND DRIVE | 22H |
| Code L | LEFT-HAND DRIVE | 47H |
| Code L | LEFT-HAND DRIVE | 57J |
| Code L | LEFT-HAND DRIVE | 57F |
| Code R | RIGHT-HAND DRIVE | 22H |
| Code R | RIGHT-HAND DRIVE | 47H |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 57G |
| K40/5 | Rear fuse and relay module | 7L |
| K40/5 | Rear fuse and relay module | 31L |
| K40/5f403 | Fuse 403 | 30L |
| K40/5f404 | Fuse 404 | 6L |
| M27/10 | Driver seat height adjustment motor | 11L |
| M27/5 | Driver seat backrest inclination adjustment motor | 16L |
| M27/9 | Seat inclination adjustment motor, driver seat | 14L |
| M28/10 | Front passenger seat height adjustment motor | 35L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 40L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 38L |
| N10/8 | Rear SAM control unit | 22L |
| N10/8 | Rear SAM control unit | 46L |

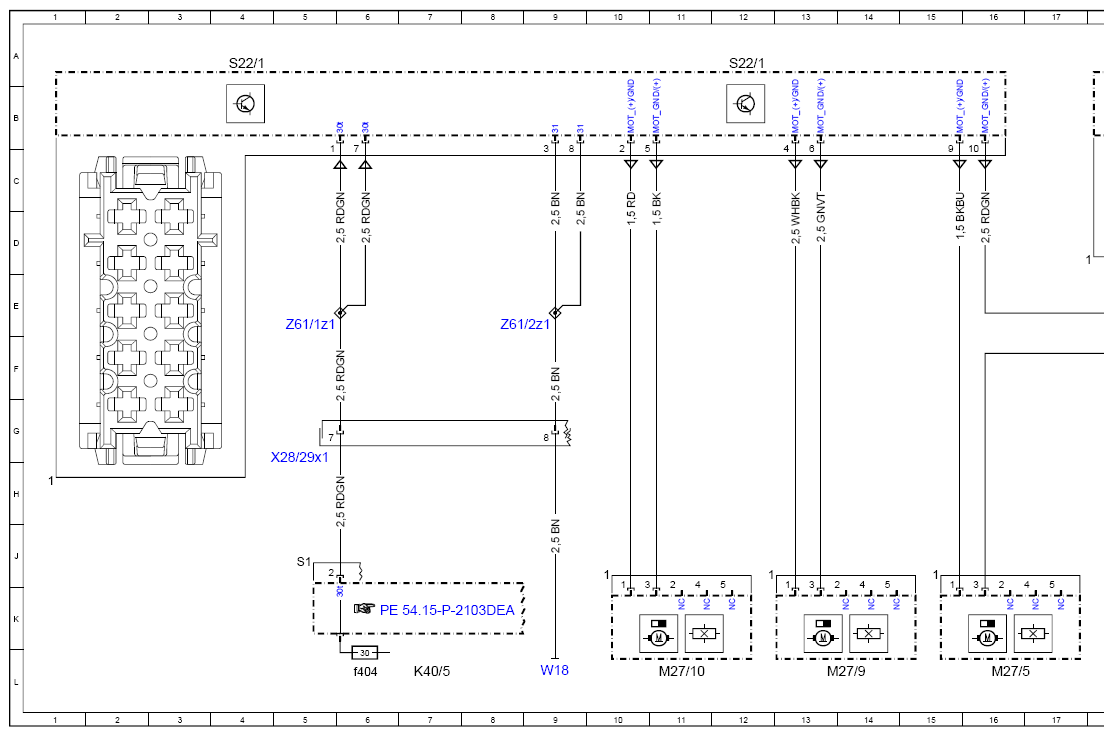

| S22/1 | Driver seat partially electric seat adjustment switch | 4A |
| S22/1 | Driver seat partially electric seat adjustment switch | 12A |

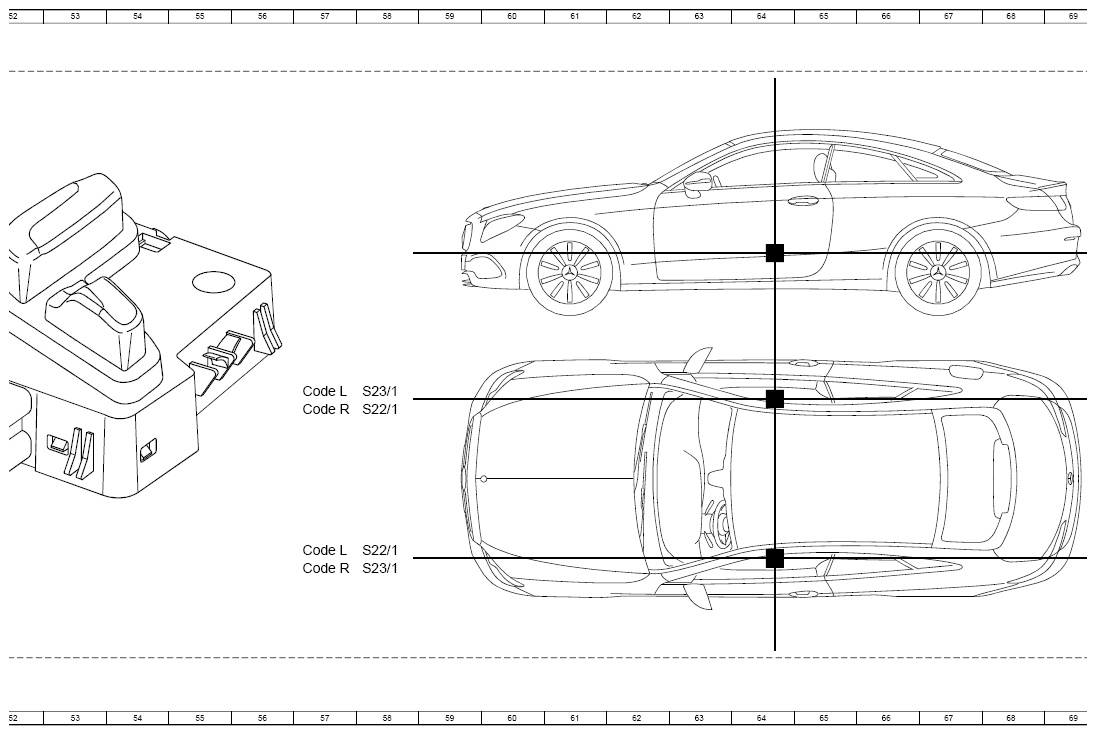

| S22/1 | Driver seat partially electric seat adjustment switch | 58J |
| S22/1 | Driver seat partially electric seat adjustment switch | 58G |

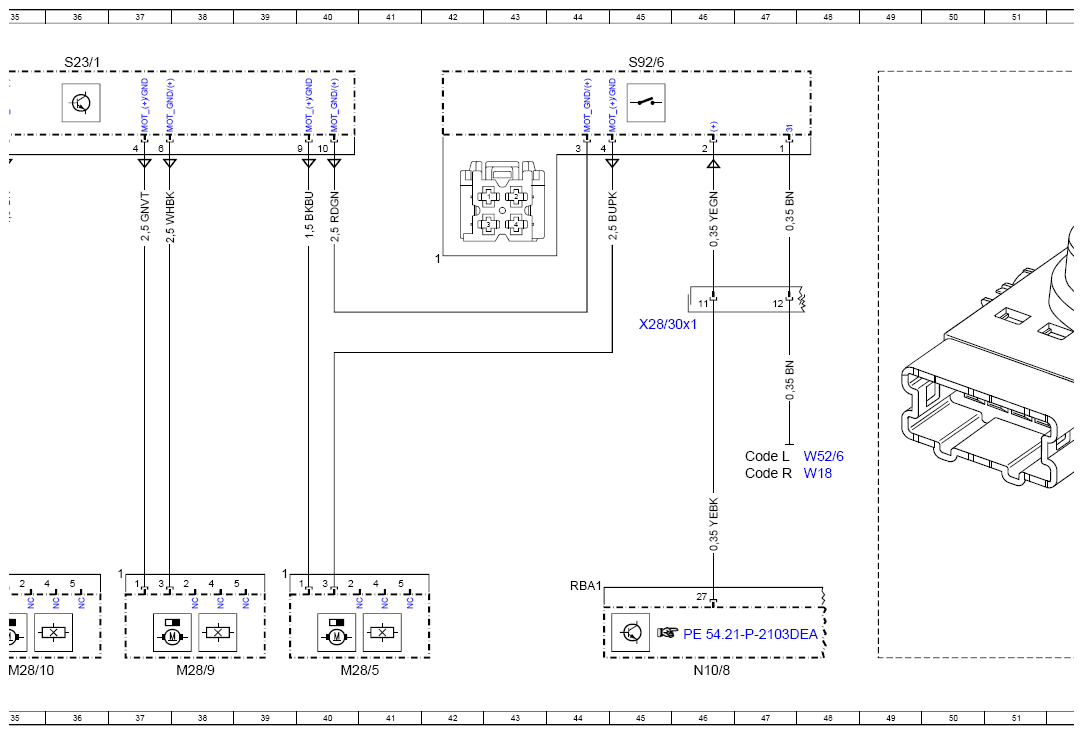

| S23/1 | Front passenger seat partially electric seat adjustment switch | 28A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 36A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 58J |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 58F |

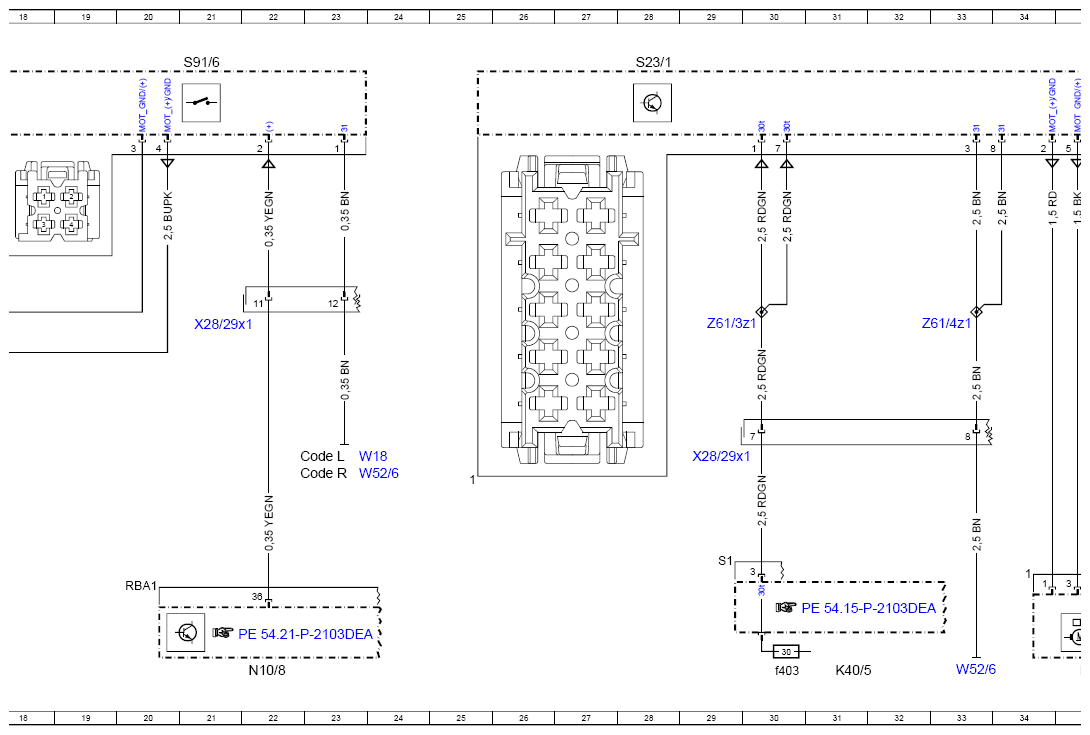

| S91/6 | Left backrest release/inclination microswitch | 21A |
| S92/6 | Right backrest release/inclination microswitch | 45A |
| W18 | Left front seat crossmember ground point | 9L |
| W18 | Left front seat crossmember ground point | 23H |
| W18 | Left front seat crossmember ground point | 48H |
| W52/6 | Right center longitudinal member ground point | 33L |
| W52/6 | Right center longitudinal member ground point | 23H |
| W52/6 | Right center longitudinal member ground point | 48H |
| X28/29x1 | Interior wiring harness/driver's seat electrical connector | 5H |
| X28/29x1 | Interior wiring harness/driver's seat electrical connector | 29H |
| X28/29x1 | Interior wiring harness/driver's seat electrical connector | 21E |
| X28/30x1 | Interior wiring harness/front passenger seat electrical connector | 45E |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 5E |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 9E |
| Z61/3z1 | Terminal 30t connector sleeve | 29E |
| Z61/4z1 | Circuit 31 connector sleeve | 33E |
