Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97DEA

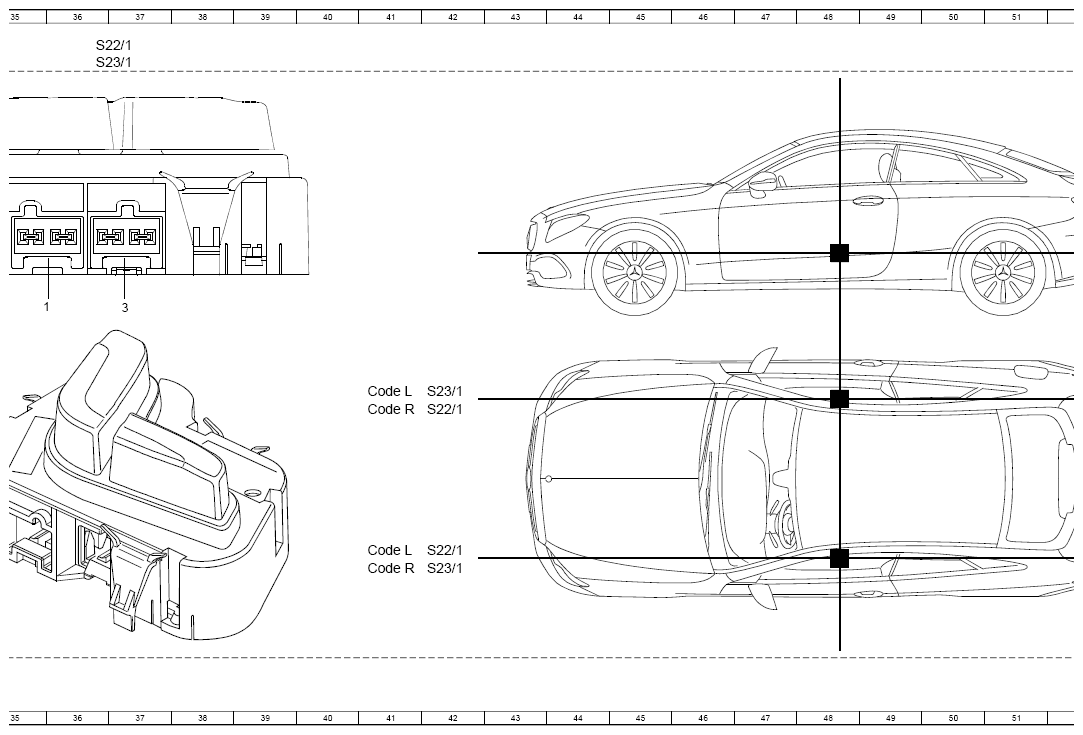

Model 238 as of model year 2021 except code P65 (Ergonomics package) Switch S22/1, S23/1
| Code: | Designation: | Position: |
|---|---|---|

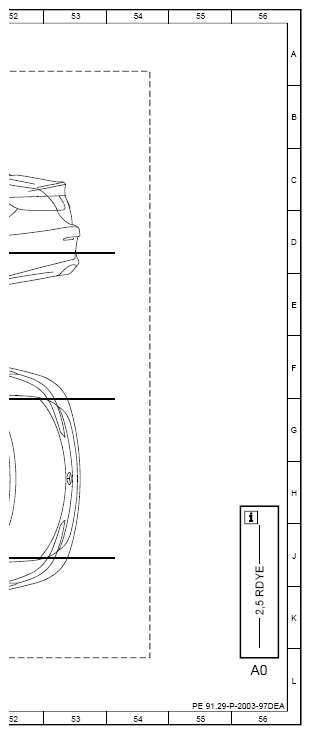

| A0 | Use of wiring diagrams | 56L |
| Code L | LEFT-HAND DRIVE | 4H |
| Code L | LEFT-HAND DRIVE | 20H |
| Code L | LEFT-HAND DRIVE | 41J |
| Code L | LEFT-HAND DRIVE | 41F |
| Code R | RIGHT-HAND DRIVE | 4H |
| Code R | RIGHT-HAND DRIVE | 20H |
| Code R | RIGHT-HAND DRIVE | 41J |
| Code R | RIGHT-HAND DRIVE | 41G |
| M27/10 | Driver seat height adjustment motor | 15L |
| M27/5 | Driver seat backrest inclination adjustment motor | 11L |
| M28/10 | Front passenger seat height adjustment motor | 30L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 26L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 19L |

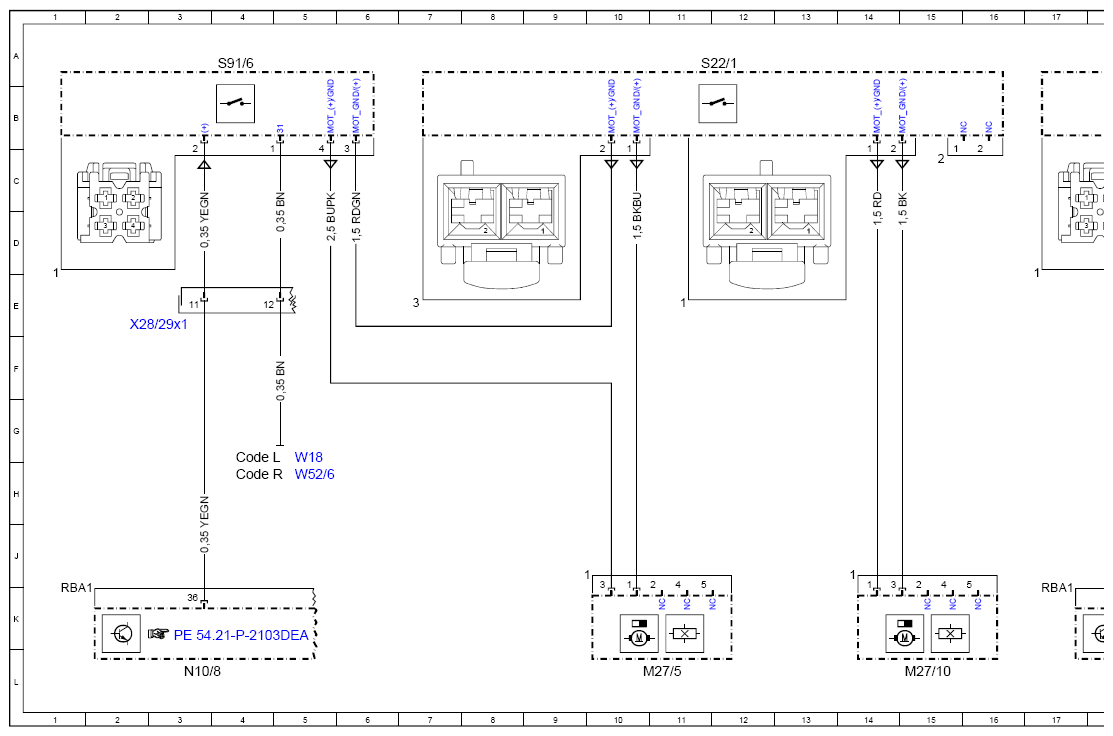

| S22/1 | Driver seat partially electric seat adjustment switch | 11A |
| S22/1 | Driver seat partially electric seat adjustment switch | 42J |
| S22/1 | Driver seat partially electric seat adjustment switch | 42G |
| S22/1 | Driver seat partially electric seat adjustment switch | 36A |

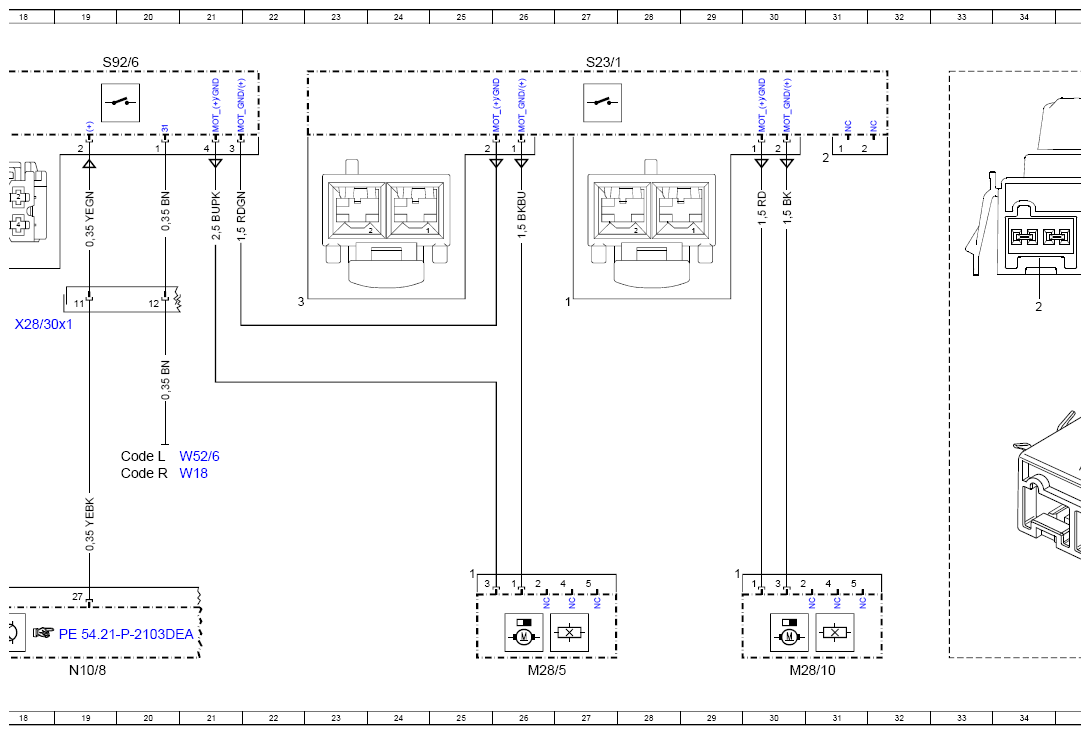

| S23/1 | Front passenger seat partially electric seat adjustment switch | 27A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 42J |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 42F |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 36A |
| S91/6 | Left backrest release/inclination microswitch | 4A |
| S92/6 | Right backrest release/inclination microswitch | 19A |
| W18 | Left front seat crossmember ground point | 5H |
| W18 | Left front seat crossmember ground point | 21H |
| W52/6 | Right center longitudinal member ground point | 5H |
| W52/6 | Right center longitudinal member ground point | 21H |
| X28/29x1 | Interior wiring harness/driver"s seat electrical connector | 3E |
| X28/30x1 | Interior wiring harness/front passenger seat electrical connector | 18E |
