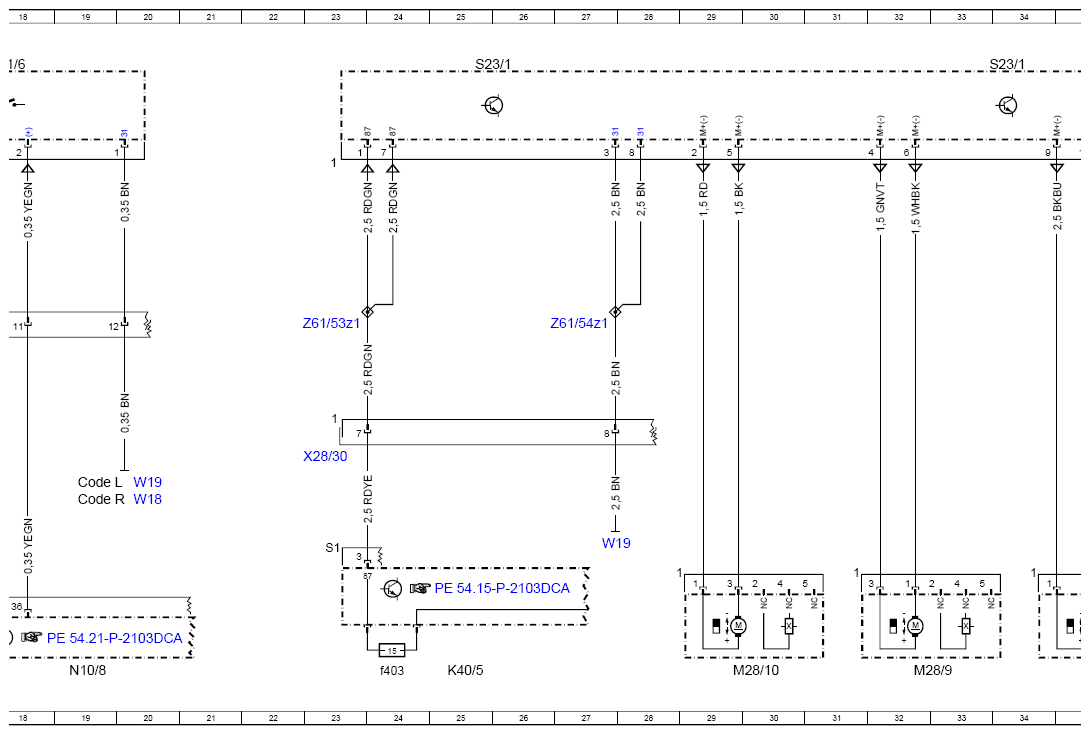

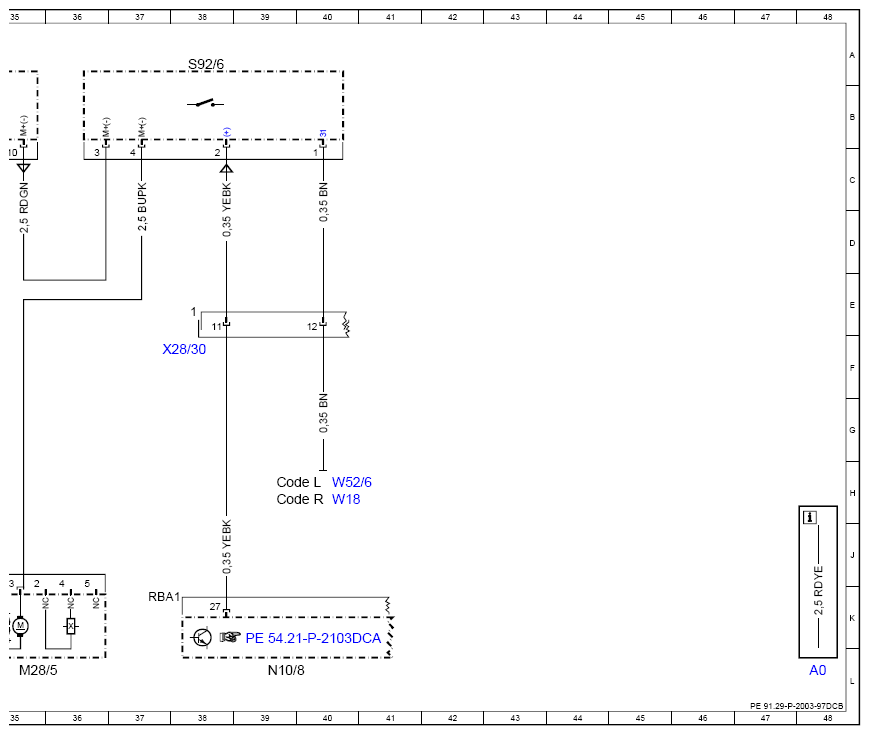

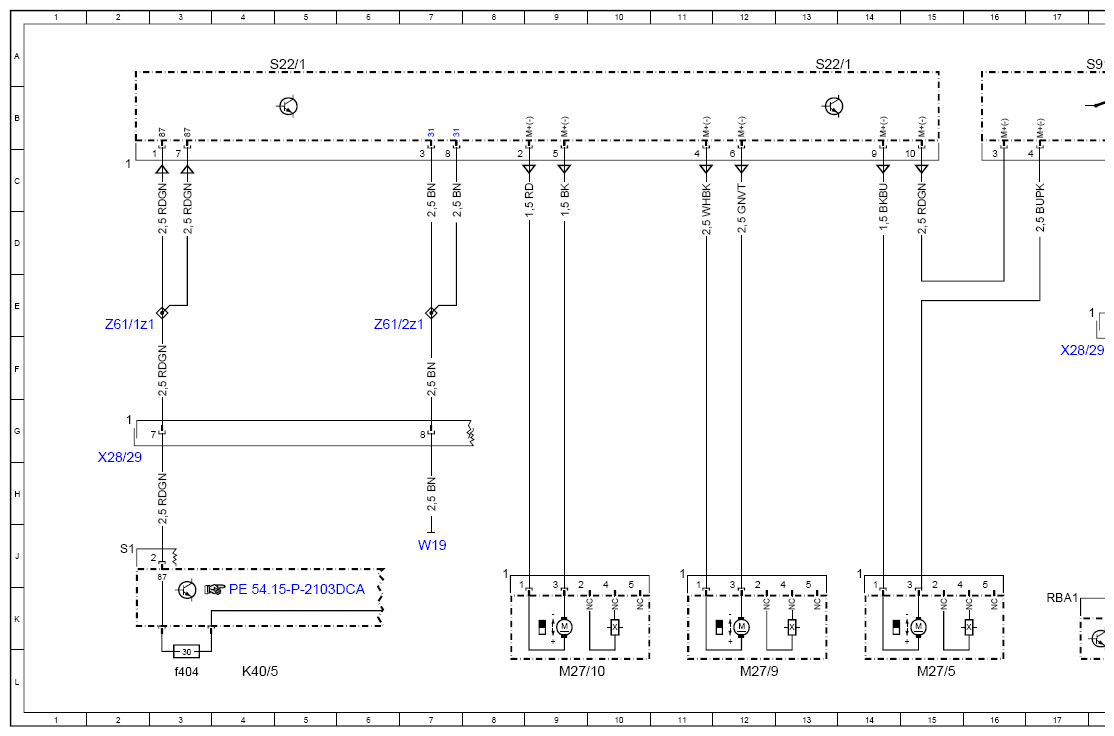

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97DCB
Model 238 up to model year 2021 with code P65 (Ergonomics package) Switch S22/1, S23/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code L | LEFT-HAND DRIVE | 19H |
| Code L | LEFT-HAND DRIVE | 39H |
| Code R | RIGHT-HAND DRIVE | 19H |
| Code R | RIGHT-HAND DRIVE | 39H |
| K40/5 | Rear fuse and relay module | 4L |
| K40/5 | Rear fuse and relay module | 25L |
| K40/5f403 | Fuse 403 | 24L |
| K40/5f404 | Fuse 404 | 3L |
| M27/10 | Driver seat height adjustment motor | 9L |
| M27/5 | Driver seat backrest inclination adjustment motor | 15L |
| M27/9 | Seat inclination adjustment motor, driver seat | 12L |
| M28/10 | Front passenger seat height adjustment motor | 30L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 35L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 32L |
| N10/8 | Rear SAM control unit | 19L |
| N10/8 | Rear SAM control unit | 39L |
| S22/1 | Driver seat partially electric seat adjustment switch | 5A |
| S22/1 | Driver seat partially electric seat adjustment switch | 13A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 25A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 34A |
| S91/6 | Left backrest release/inclination microswitch | 18A |
| S92/6 | Right backrest release/inclination microswitch | 38A |
| W18 | Left front seat crossmember ground point | 20H |
| W18 | Left front seat crossmember ground point | 40H |
| W19 | Right front seat crossmember ground point | 7J |
| W19 | Right front seat crossmember ground point | 27J |
| W19 | Right front seat crossmember ground point | 20H |
| W52/6 | Right center longitudinal member ground point | 40H |
| X28/29 | Frame floor assembly/ driver seat electrical connector | 2H |
| X28/29 | Frame floor assembly/ driver seat electrical connector | 17F |
| X28/30 | Frame floor assembly/ front passenger seat electrical connector | 23H |
| X28/30 | Frame floor assembly/ front passenger seat electrical connector | 38F |
| Z61/1z1 | Left front seat circuit 30 connector sleeve | 2E |
| Z61/2z1 | Left front seat circuit 31 connector sleeve | 6E |
| Z61/53z1 | Front passenger seat wiring harness connector sleeve, circuit 30 | 23E |
| Z61/54z1 | Front passenger seat wiring harness connector sleeve, circuit 30 | 27E |
