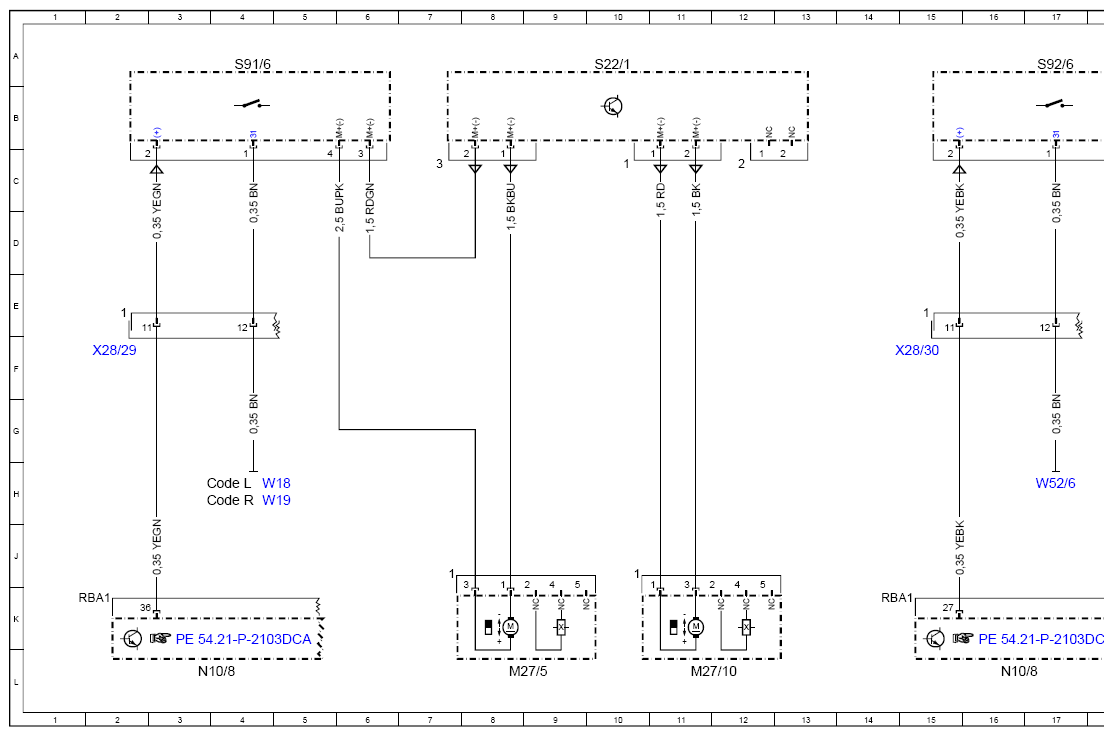

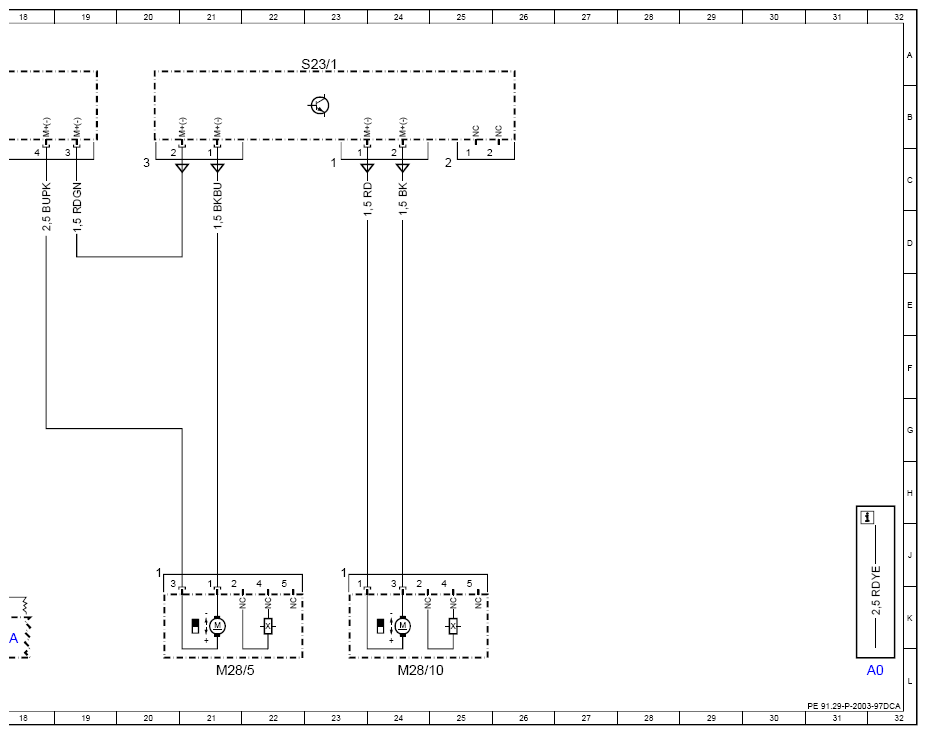

Partially Electric Seat Adjustment (ESA (ESV)) Wiring Diagram - PE91.29-P-2003-97DCA
Model 238 up to model year 2021 except code P65 (Ergonomics package) Switch S22/1, S23/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code L | LEFT-HAND DRIVE | 3H |
| Code P65 | Seating comfort package | - |
| Code R | RIGHT-HAND DRIVE | 3H |
| M27/10 | Driver seat height adjustment motor | 11L |
| M27/5 | Driver seat backrest inclination adjustment motor | 8L |
| M28/10 | Front passenger seat height adjustment motor | 24L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 21L |
| N10/8 | Rear SAM control unit | 3L |
| N10/8 | Rear SAM control unit | 16L |
| S22/1 | Driver seat partially electric seat adjustment switch | 10A |
| S23/1 | Front passenger seat partially electric seat adjustment switch | 23A |
| S91/6 | Left backrest release/inclination microswitch | 4A |
| S92/6 | Right backrest release/inclination microswitch | 17A |
| W18 | Left front seat crossmember ground point | 4H |
| W19 | Right front seat crossmember ground point | 4H |
| W52/6 | Right center longitudinal member ground point | 17H |
| X28/29 | Frame floor assembly/ driver seat electrical connector | 2F |
| X28/30 | Frame floor assembly/ front passenger seat electrical connector | 15F |
