Wiring Diagram Of Rear Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2103-97DEA
Model 238 as of model year 2021 Control unit N10/8

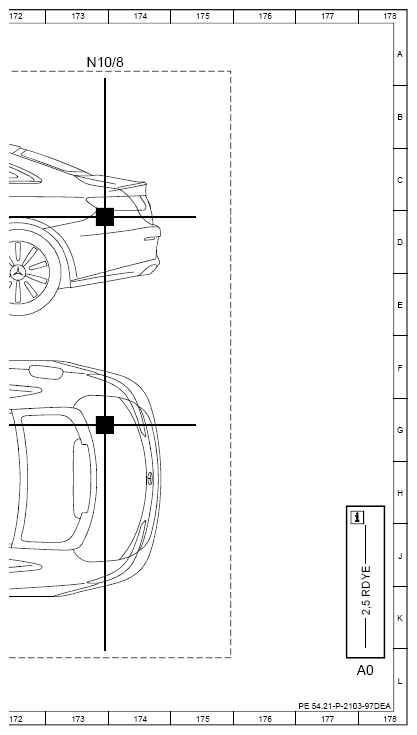

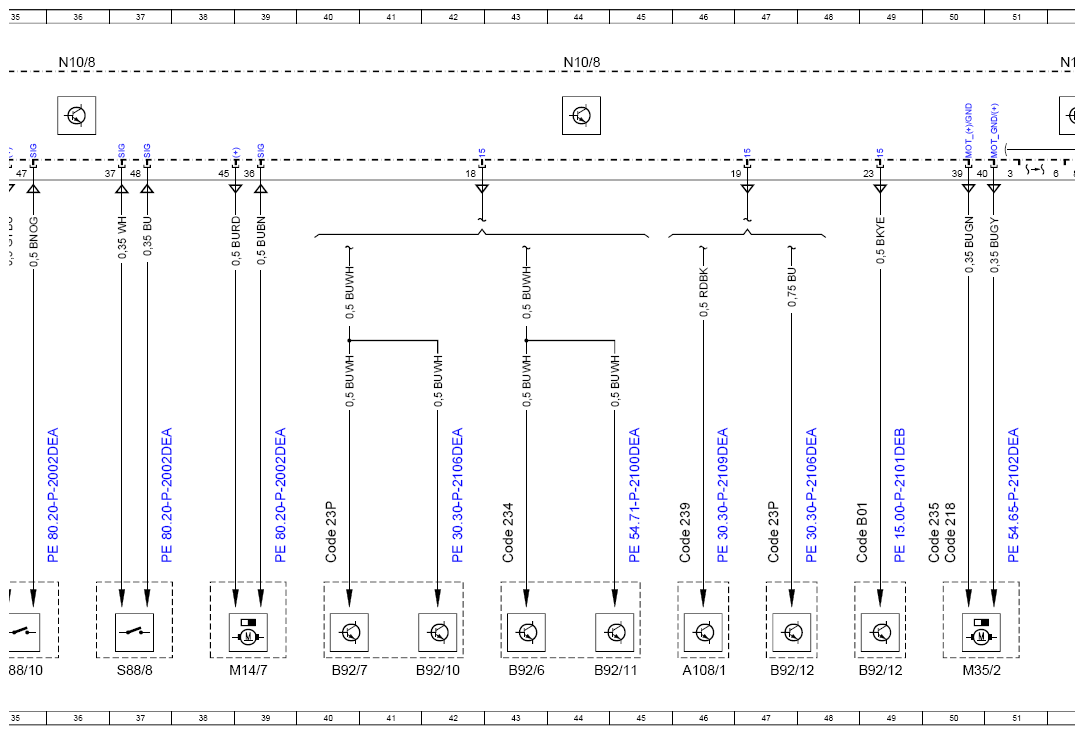

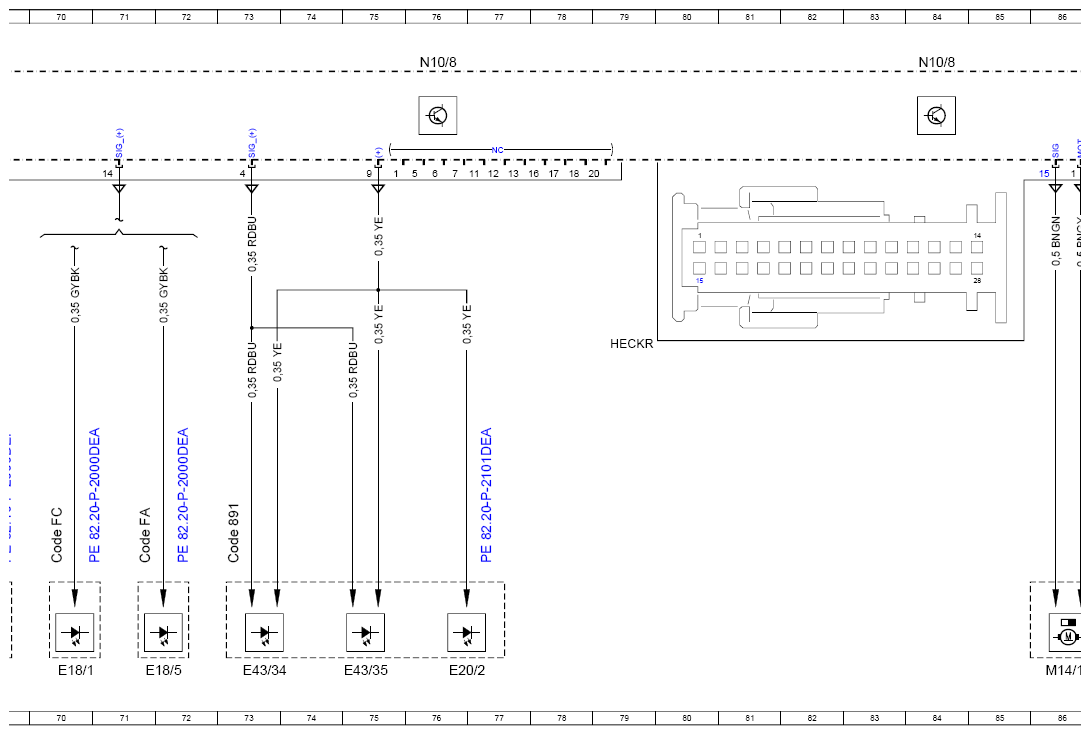

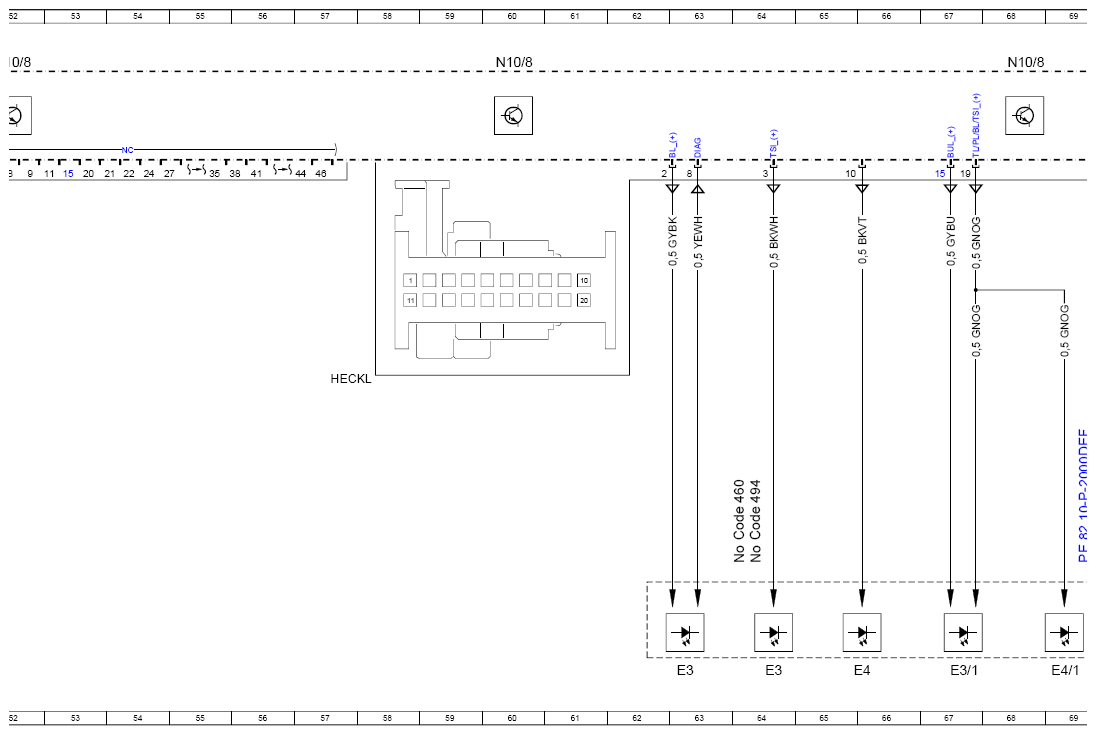

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 178L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 46L |
| B92/10 | Left outer rear bumper radar sensor | 42L |
| B92/11 | Left outer rear bumper integrated radar sensor | 44L |
| B92/12 | Short and long-range radar sensor | 47L |
| B92/12 | Short and long-range radar sensor | 49L |
| B92/6 | Right outer rear bumper integrated radar sensor | 43L |
| B92/7 | Right outer rear bumper radar sensor | 40L |
| Code 218 | Backup camera | 50J |
| Code 218 | Backup camera | 111J |
| Code 234 | Blind Spot Assist (BSM) | 43J |
| Code 235 | Active Park Assist | 50J |
| Code 235 | Active Park Assist | 111J |
| Code 239 | Active Distance Assist DISTRONIC | 46J |
| Code 23P | Driver assistance package | 47J |
| Code 23P | Driver assistance package | 40J |
| Code 460 | Canada version | 64J |
| Code 494 | USA version | 64J |
| Code 540 | Electric roller sun blind for rear window | 153J |
| Code 550 | Trailer hitch | 12J |
| Code 872 | Left and right rear seat heaters | 144J |
| Code 872 | Left and right rear seat heaters | 141J |
| Code 873 | Seat heater for driver and front passenger | 138 J |
| Code 881 | Remote trunk closing | 20J |
| Code 891 | Premium ambient lighting | 73J |
| Code 906 | Front armrest heater | 137J |
| Code B01 | 48V technology | 49J |
| Code FA | CABRIOLET | 22J |
| Code FA | CABRIOLET | 71J |
| Code FA | CABRIOLET | 95J |
| Code FA | CABRIOLET | 119J |
| Code FC | COUPE | 23J |
| Code FC | COUPE | 70J |
| Code FC | COUPE | 116J |
| Code FC | COUPE | 152J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 96J |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 97J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 98J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE OM656 | 98J |
| Code P65 | Seating comfort package | 131J |
| Code P65 | Seating comfort package | 134J |
| Code P65 | Seating comfort package | 133J |
| Code P65 | Seating comfort package | 136J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 99J |
| E17/27 | Trunk lid warning lamp | 25L |
| E18/1 | Luggage compartment lamp | 70L |
| E18/4 | Right luggage compartment lamp | 95L |
| E18/5 | Left luggage compartment lamp | 71L |
| E19/1 | Left license plate lamp | 30L |
| E19/2 | Right license plate lamp | 31L |
| E20/2 | Front center console cup holder illumination | 76L |
| E21 | Center stop lamp | 127L |
| E3 | Left rear lamp unit | 64L |
| E3 | Left rear lamp unit | 63L |
| E3 | Left rear lamp unit | 90L |
| E3/1 | Inner left rear lamp unit | 26L |
| E3/1 | Inner left rear lamp unit | 67L |
| E4 | Right rear lamp unit | 66L |
| E4 | Right rear lamp unit | 92L |
| E4/1 | Inner right rear lamp unit | 28L |
| E4/1 | Inner right rear lamp unit | 69L |
| E4/1 | Inner right rear lamp unit | 94L |
| E40 | Trunk lid ambient lamp | 23L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 22L |
| E43/34 | Left rear footwell illumination ambiance illumination (LED) | 73L |
| E43/35 | Right rear footwell illumination ambiance illumination (LED) | 75L |

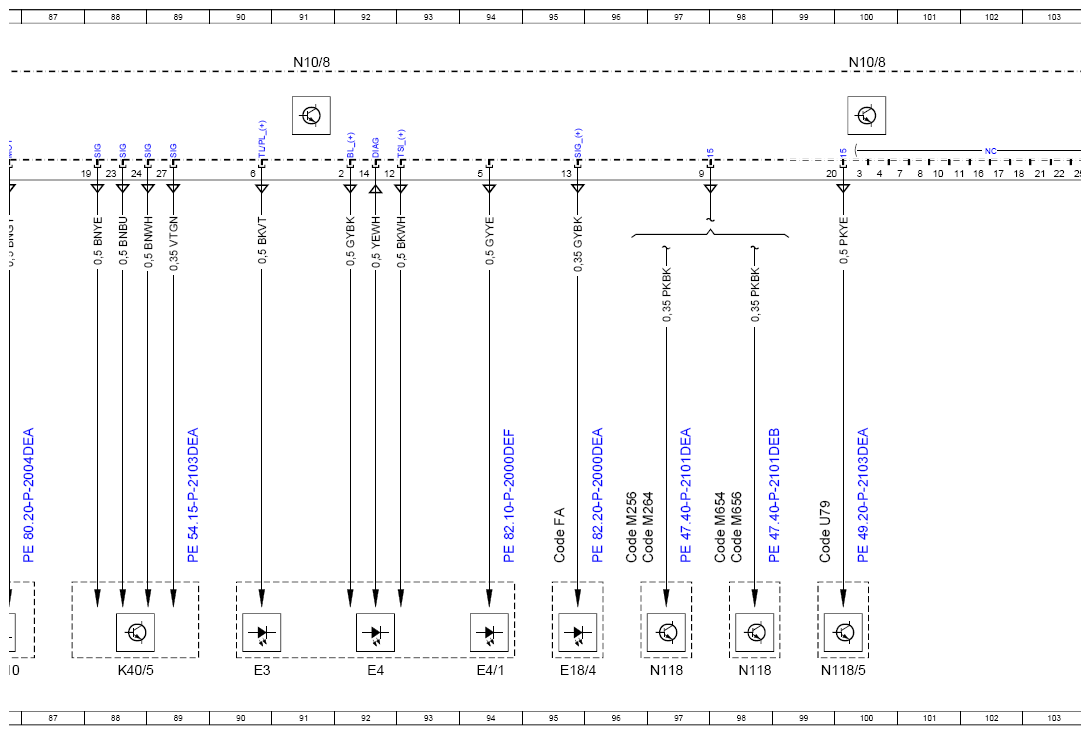

| K40/5 | Rear fuse and relay module | 5L |
| K40/5 | Rear fuse and relay module | 88L |
| K40/5f476 | Fuse 476 | 9L |

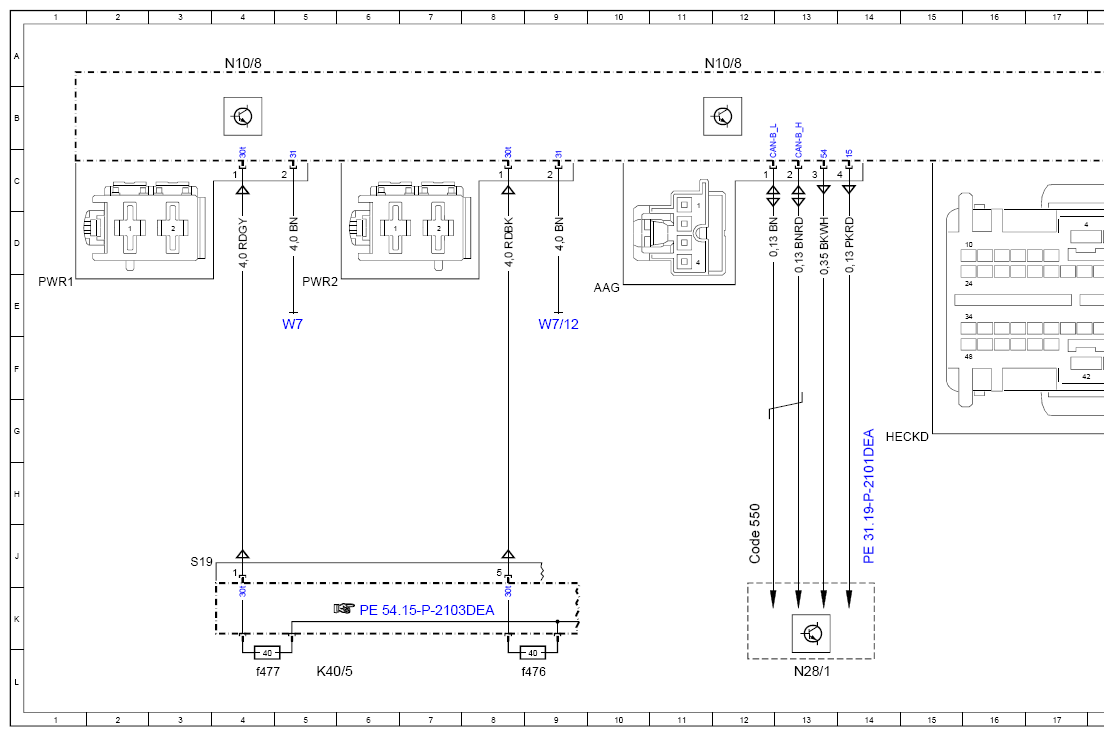

| K40/5f477 | Fuse 477 | 4L |
| M14/10 | Tank cap central locking actuator | 86L |

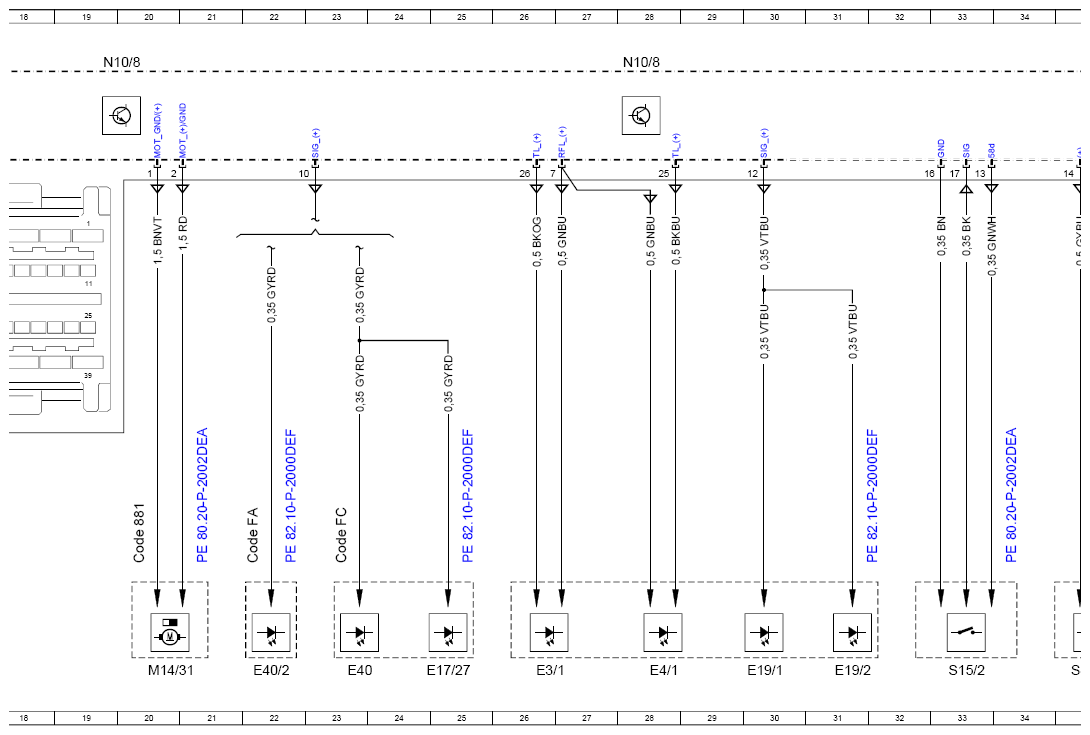

| 1114/31 | Trunk lid locking element | 20L |
| M14/7 | Trunk lid/liftgate central locking motor | 39L |
| M24 | Rear window roller sun blind motor | 153L |
| M35/2 | Rear camera cover motor | 50L |
| M35/2 | Rear camera cover motor | 111L |
| M53/15 | Left rear backrest release actuator | 120L |
| M53/16 | Right rear backrest release actuator | 122L |

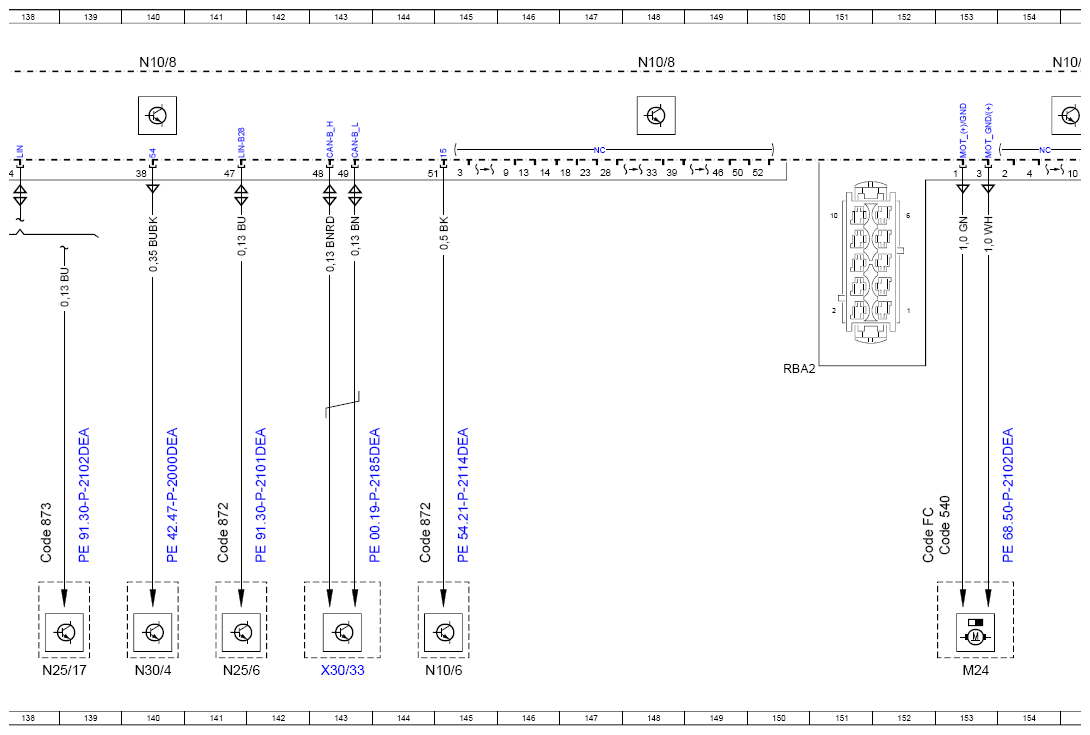

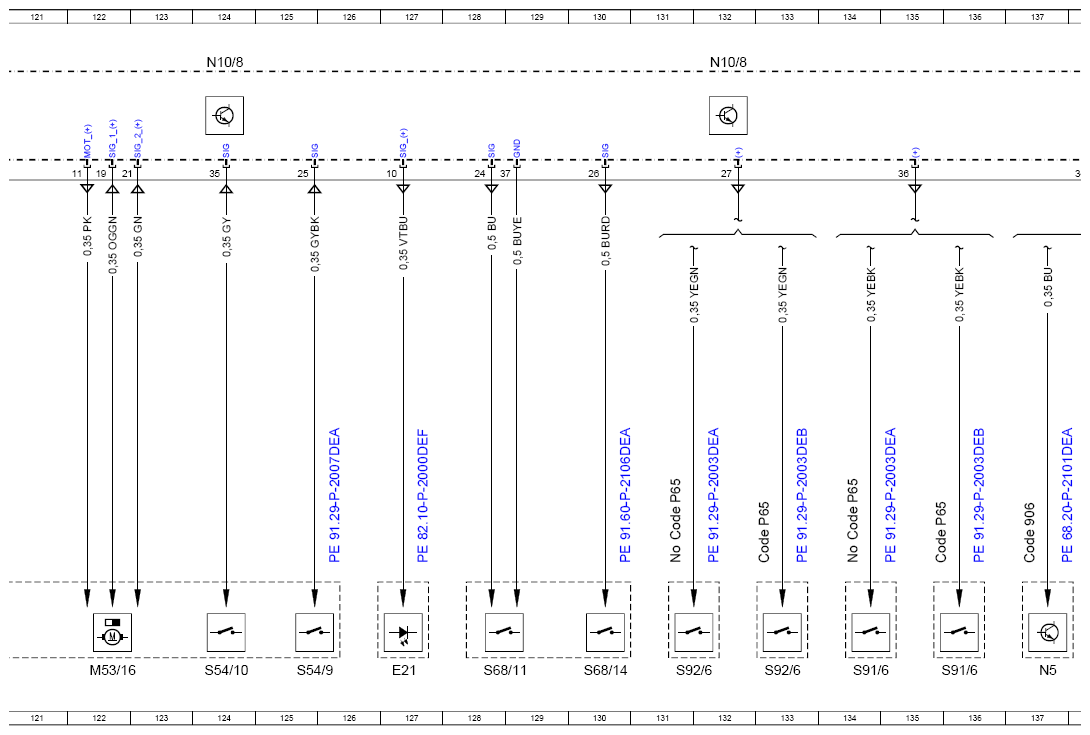

| N10/6 | Front SAM control unit | 144L |

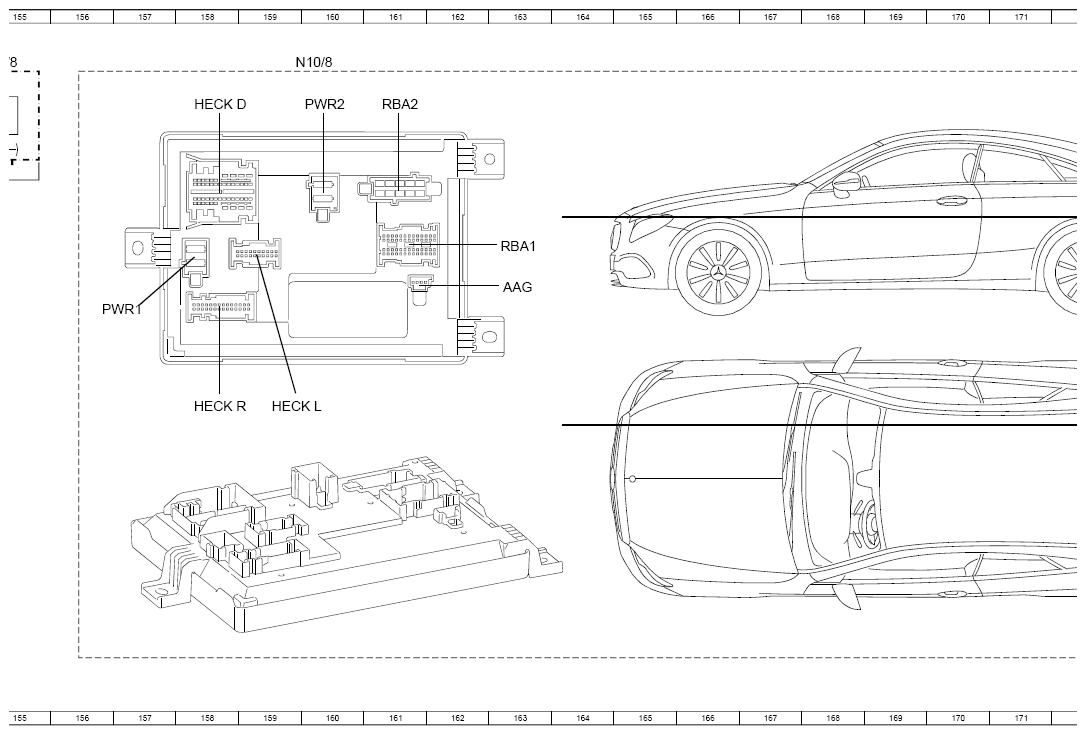

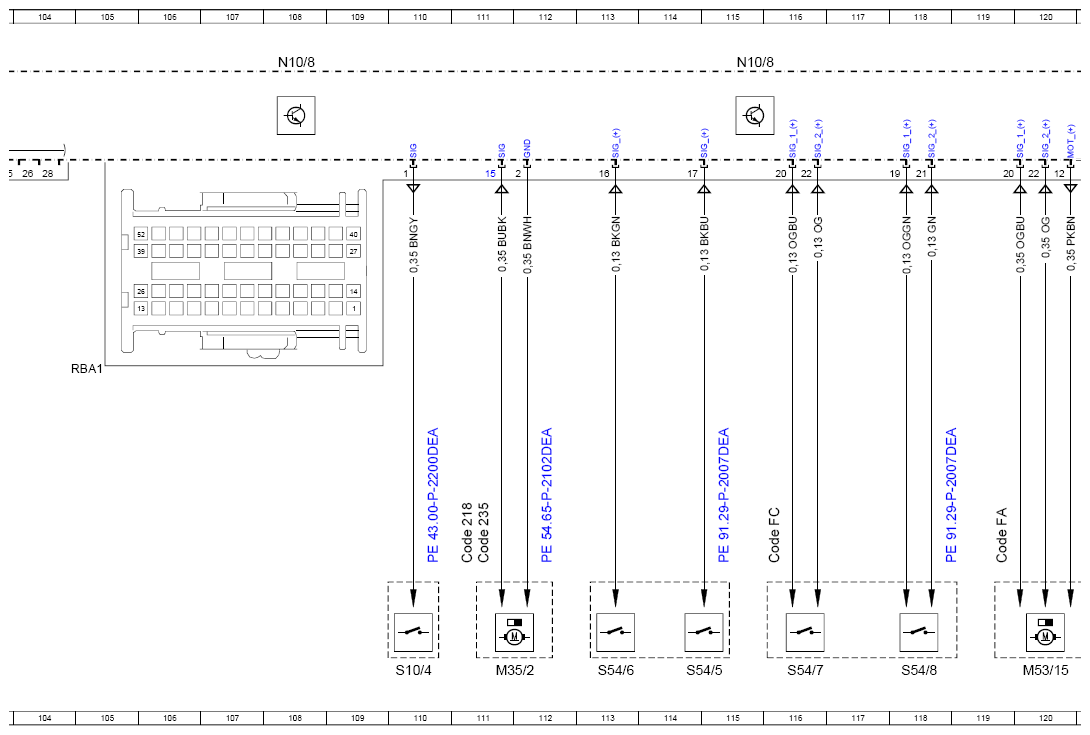

| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 19A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 76A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 91A |
| N10/8 | Rear SAM control unit | 100A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 115A |
| N10/8 | Rear SAM control unit | 124A |
| N10/8 | Rear SAM control unit | 132A |
| N10/8 | Rear SAM control unit | 140A |
| N10/8 | Rear SAM control unit | 173A |
| N10/8 | Rear SAM control unit | 160A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 155A |
| N118 | Fuel pump control unit | 98L |
| N118 | Fuel pump control unit | 97L |
| N118/5 | AdBlue® control unit | 99L |
| N25/17 | Front seat heater/seat ventilation control unit | 138L |
| N25/6 | Rear seat heaters control unit | 141L |
| N28/1 | Trailer recognition control unit | 13L |
| N30/4 | Electronic Stability Program control unit | 140L |
| N5 | Armrest heater control unit | 137L |
| S10/4 | Right rear brake wear sensor | 110L |
| S15/2 | Liftgate inside door handle | 33L |
| S54/10 | Right luggage compartment rear backrest release button | 124L |
| S54/5 | Left rear backrest inclination switch | 114L |
| S54/6 | Right rear backrest inclination switch | 113L |
| S54/7 | Left rear backrest lock switch | 116L |
| S54/8 | Right rear backrest lock switch | 118L |
| S54/9 | Left luggage compartment rear backrest release button | 125L |
| S68/11 | Left rear seat belt buckle switch | 128L |
| S68/14 | Center rear seat belt buckle switch | 130L |
| S88/10 | Trunk lid emergency opening switch | 35L |
| S88/8 | Trunk lid external operation switch | 37L |
| S91/6 | Left backrest release/inclination microswitch | 136L |
| S91/6 | Left backrest release/inclination microswitch | 134L |
| S92/6 | Right backrest release/inclination microswitch | 131L |
| S92/6 | Right backrest release/inclination microswitch | 133L |
| W7 | Right wheel house trunk ground point | 5E |
| W7/12 | Right floor AdBlue® ground point | 9E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 143L |
