Wiring Diagram For Driver-Side Fuse And Relay Module - PE54.15-P-2104-97DEA
Model 238 as of model year 2021 Fuse and relay box K40/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A40/16 | Head unit/instrument cluster display cluster | 42L |
| A76 | Left front reversible emergency tensioning retractor | 30L |
| A76/1 | Right front reversible emergency tensioning retractor | 31L |
| B31/4 | Fine particle sensor | 45L |
| Code 299 | PRE-SAFE® system | 31J |
| Code 299 | PRE-SAFE® system | 30J |
| Code 443 | Steering wheel heater | 52J |
| Code 498 | Japan version | 38J |
| Code 868 | Large display for Audio 20 | 44J |
| Code B01 | 48V technology | 15J |
| Code B01 | 48V technology | 12J |
| Code B01 | 48V technology | 14J |
| Code L | LEFT-HAND DRIVE | 29J |
| Code L | LEFT-HAND DRIVE | 70J |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 14J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 13J |
| Code M654 | DIESEL ENGINE OM654 | 15J |
| Code P53 | Air purification package | 45J |
| Code R | RIGHT-HAND DRIVE | 31J |
| Code R | RIGHT-HAND DRIVE | 70F |
| F11/1 | Cockpit fuse block | 38L |
| F32/3 | Engine compartment pre-fuse box | 4L |
| F32/3f6 | Fuse 6 | 3K |

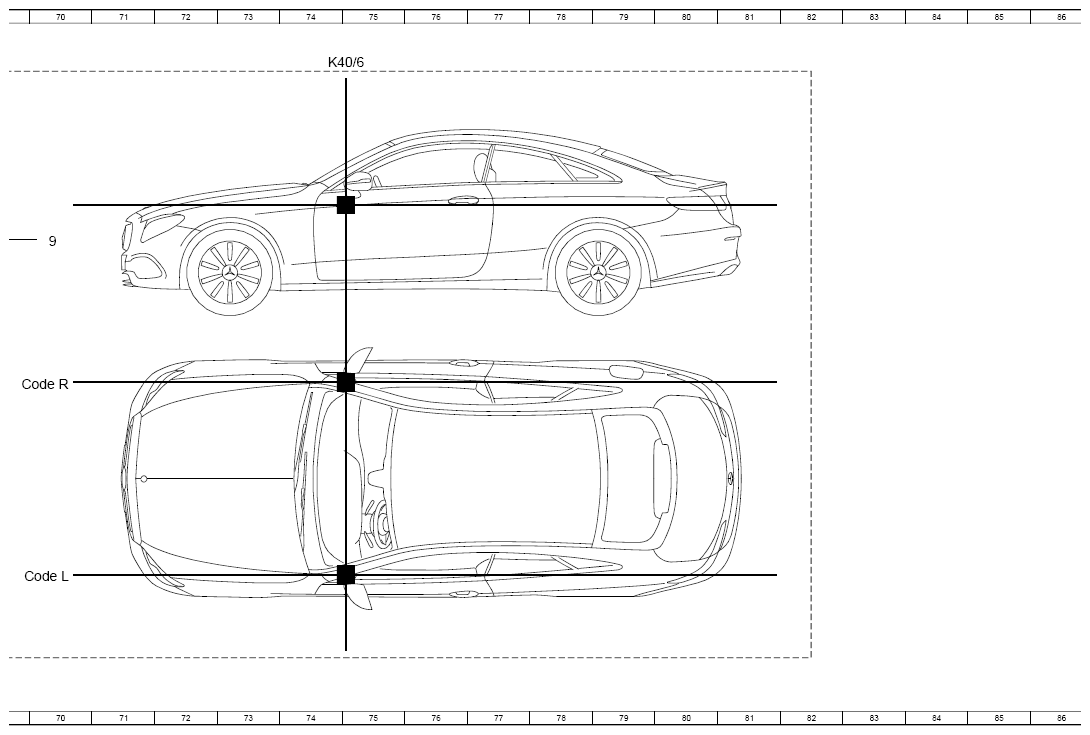

| K40/6 | Driver-side fuse and relay module | 4A |
| K40/6 | Driver-side fuse and relay module | 12A |
| K40/6 | Driver-side fuse and relay module | 21A |
| K40/6 | Driver-side fuse and relay module | 28A |
| K40/6 | Driver-side fuse and relay module | 36A |
| K40/6 | Driver-side fuse and relay module | 44A |
| K40/6 | Driver-side fuse and relay module | 54A |
| K40/6 | Driver-side fuse and relay module | 66A |
| K40/6 | Driver-side fuse and relay module | 74A |

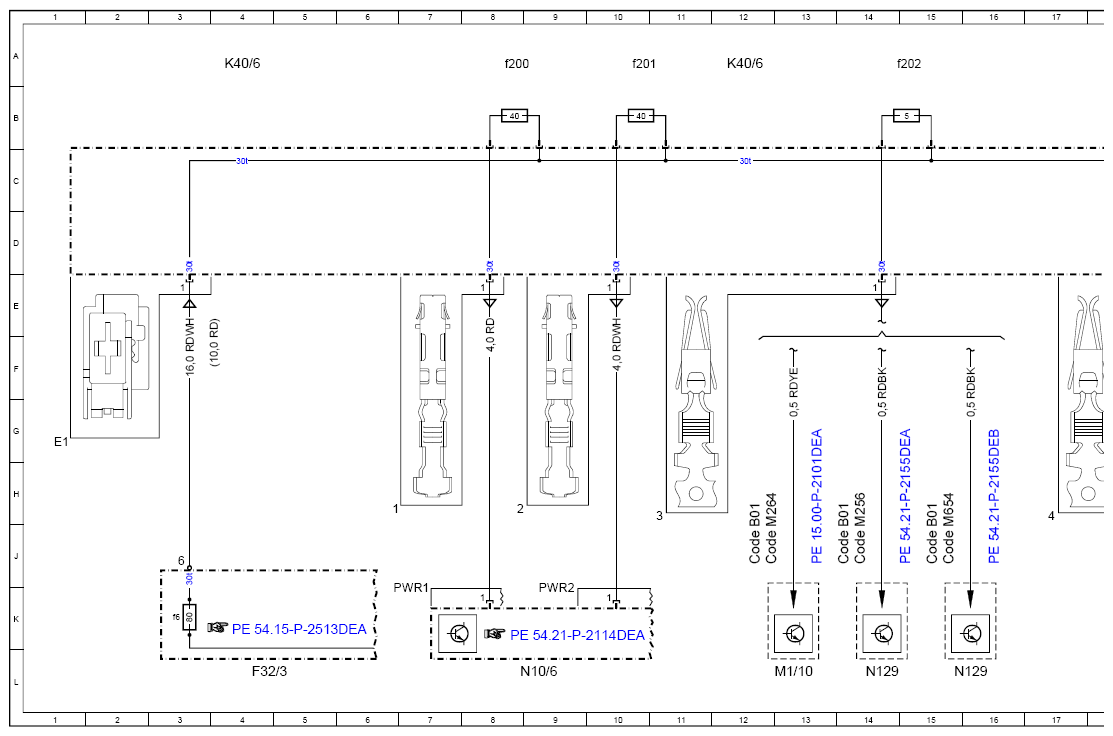

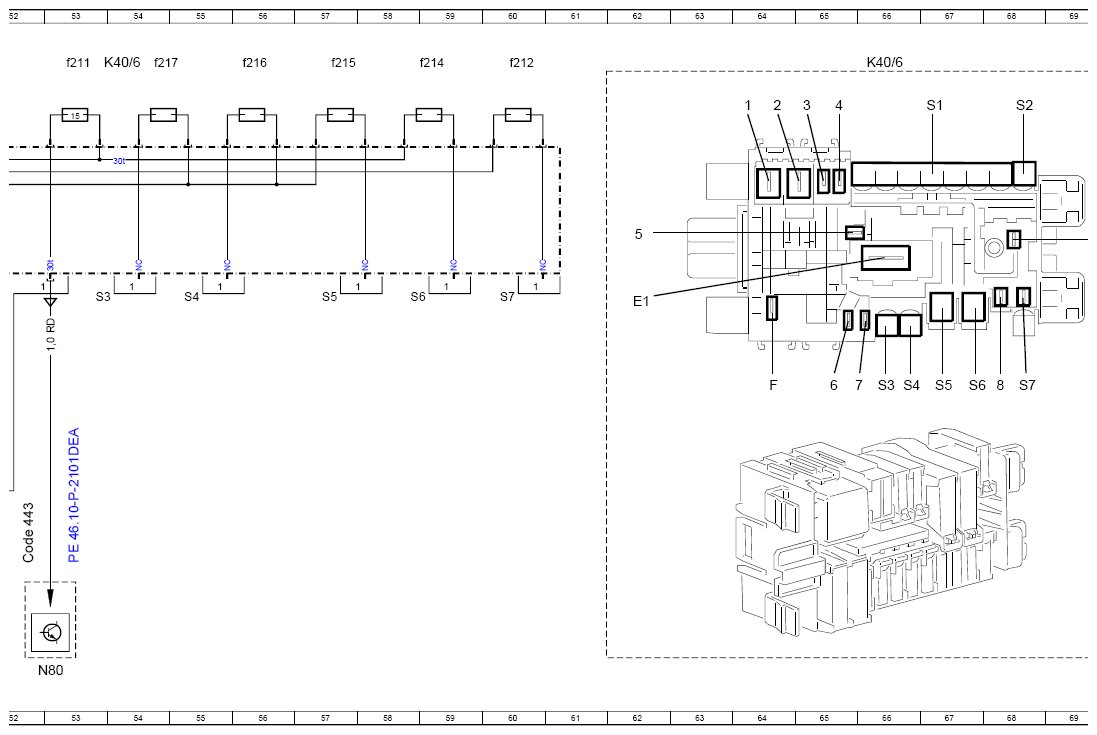

| K40/6f200 | Fuse 200 | 8A |
| K40/6f201 | Fuse 201 | 10A |

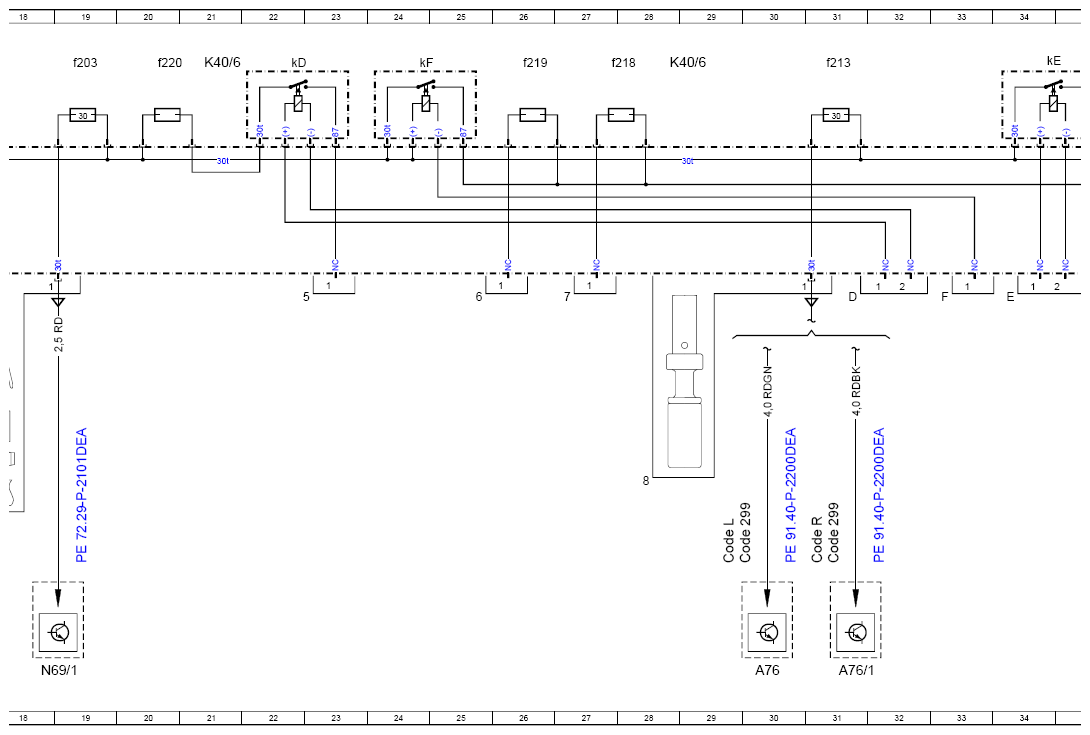

| K40/6f202 | Fuse 202 | 15A |
| K40/6f203 | Fuse 203 | 19A |

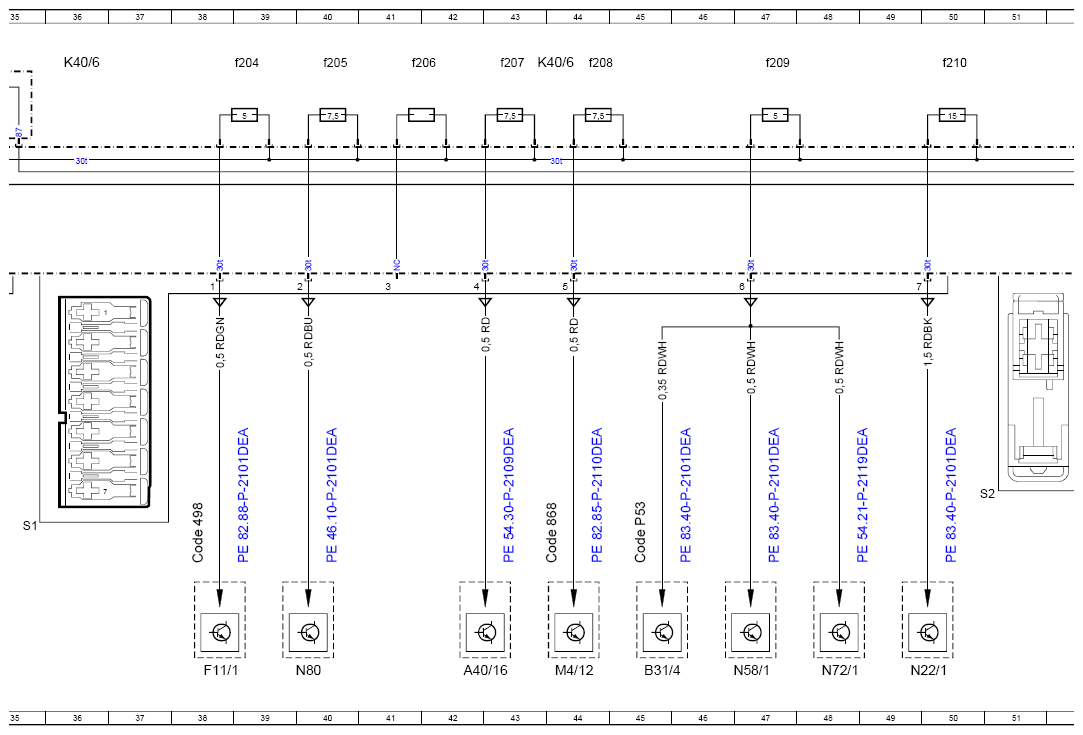

| K40/6f204 | Fuse 204 | 39A |
| K40/6f205 | Fuse 205 | 40A |
| K40/6f206 | Fuse 206 | 41A |
| K40/6f207 | Fuse 207 | 43A |
| K40/6f208 | Fuse 208 | 44A |
| K40/6f209 | Fuse 209 | 47A |
| K40/6f210 | Fuse 210 | 50A |
| K40/6f211 | Fuse 211 | 53A |
| K40/6f212 | Fuse 212 | 60A |
| K40/6f213 | Fuse 213 | 31A |
| K40/6f214 | Fuse 214 | 59A |
| K40/6f215 | Fuse 215 | 57A |
| K40/6f216 | Fuse 216 | 56A |
| K40/6f217 | Fuse 217 | 54A |
| K40/6f218 | Fuse 218 | 27A |
| K40/6f219 | Fuse 219 | 26A |
| K40/6f220 | Fuse 220 | 20A |
| K40/6kD | Backup relay | 22A |
| K40/6kE | Backup relay | 34A |
| K40/6kF | Backup relay | 24A |
| Ml/10 | Starter-alternator | 13L |
| M4/12 | Digital instrument cluster full display fan motor | 44L |
| N10/6 | Front SAM control unit | 9L |
| N129 | Starter generator control unit | 14L |
| N129 | Starter generator control unit | 16L |
| N22/1 | Climate control, control unit | 49L |
| N58/1 | Climate control operating unit | 47L |
| N69/1 | Left front door control unit | 18L |
| N72/1 | Upper control panel control unit | 48L |
| N80 | Steering column module control unit | 40L |
| N80 | Steering column module control unit | 53L |
