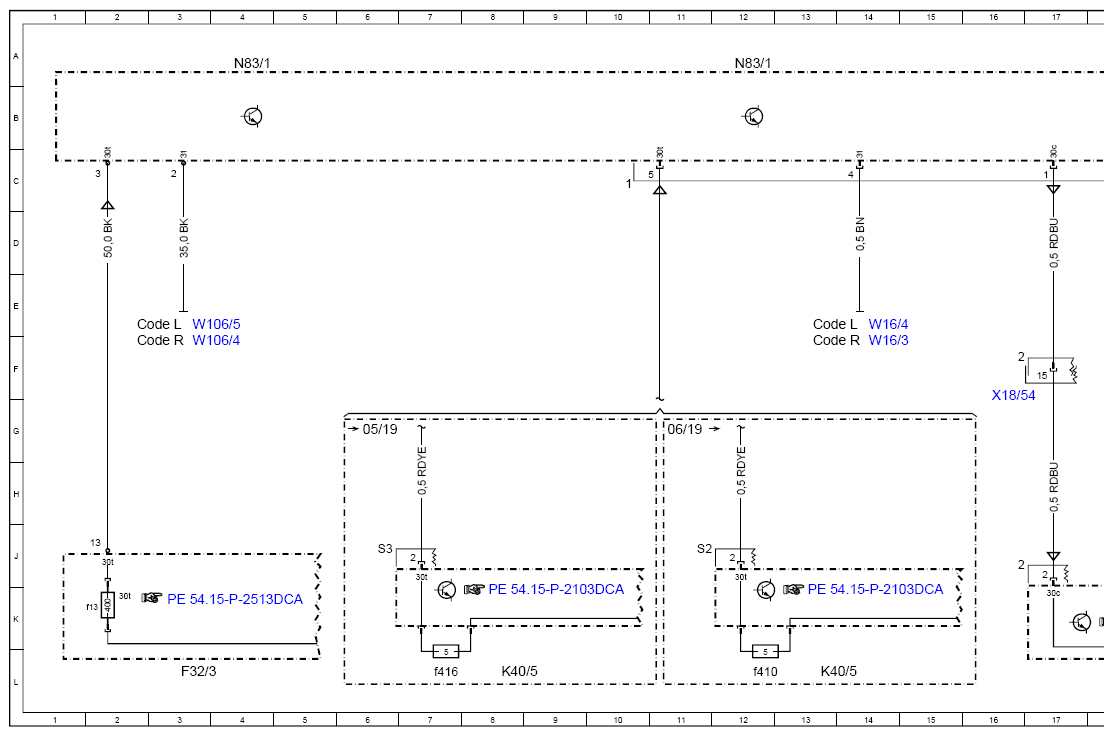

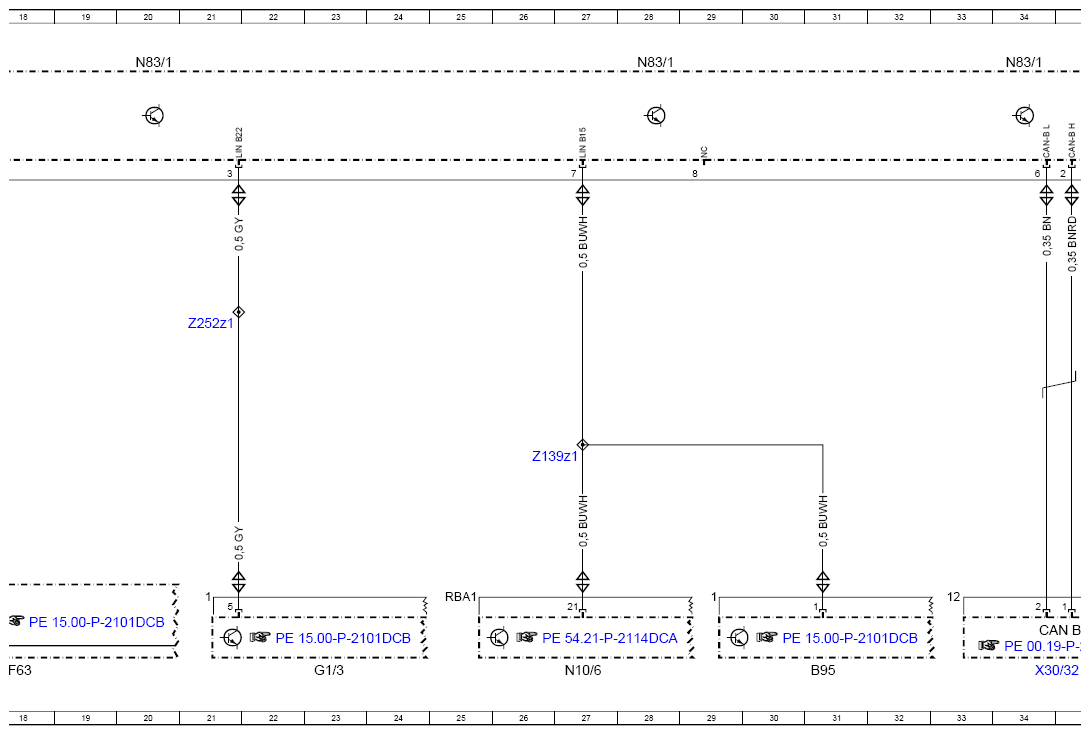

Wiring Diagram For DC/DC Converter Control Unit - PE54.10-P-2105-97DCA
Model 238 up to model year 2021 with code B01 (48V technology) Control unit N83/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| B95 | Battery sensor | 31L |
| CAN B | Interior CAN | 34K |
| Code L | LEFT-HAND DRIVE | 2E |
| Code L | LEFT-HAND DRIVE | 13E |
| Code R | RIGHT-HAND DRIVE | 2F |
| Code R | RIGHT-HAND DRIVE | 13F |
| F32/3 | Engine compartment pre-fuse box | 3L |
| F32/3f13 | Fuse 13 | 2K |
| F63 | Pyrofuse | 18L |
| G1/3 | 48 V on-board electrical system battery | 23L |
| K40/5 | Rear fuse and relay module | 8L |
| K40/5 | Rear fuse and relay module | 13L |
| K40/5f410 | Fuse 410 | 12L |
| K40/5f416 | Fuse 416 | 7L |
| N10/6 | Front SAM control unit | 27L |
| N83/1 | DC/DC converter control unit | 4A |
| N83/1 | DC/DC converter control unit | 12A |
| N83/1 | DC/DC converter control unit | 20A |
| N83/1 | DC/DC converter control unit | 28A |
| N83/1 | DC/DC converter control unit | 34A |
| W106/4 | Left engine compartment circuit 41 ground point | 3F |
| W106/5 | Right engine compartment circuit 41 ground point | 3E |
| W16/3 | Left major assembly compartment ground point | 14F |
| W16/4 | Right major assembly compartment ground point | 14E |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 16G |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 34L |
| Z139z1 | Battery sensor connector sleeve | 27G |
| Z252z1 | 48 V on-board electrical system LIN (LIN B22) connector sleeve | 21E |
