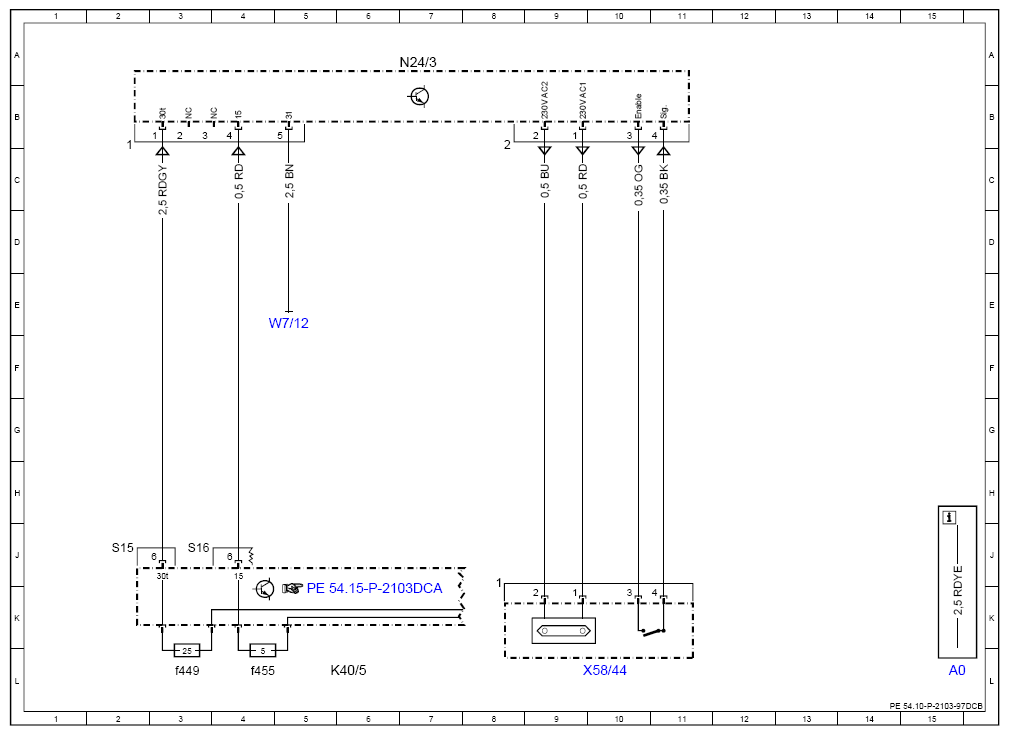

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97DCB
Model 238 up to model year 2021 with code U67 (230 V socket in rear passenger compartment) except code U80 (115 V socket) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code U67 | 230 V socket in interior compartment | - |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5f449 | Fuse 449 | 3L |
| K40/5f455 | Fuse 455 | 4L |
| N24/3 | DC/AC converter control unit | 7A |
| W7/12 | Right floor AdBlue® ground point | 5E |
| X58/44 | 230V socket | 10L |
