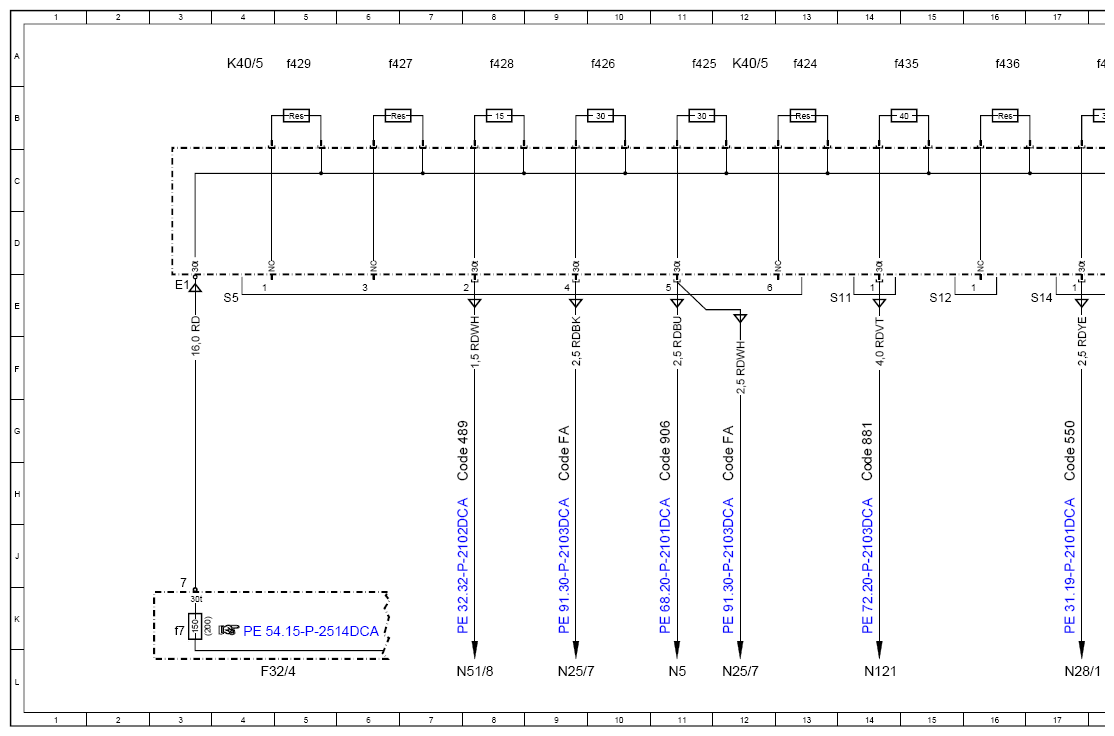

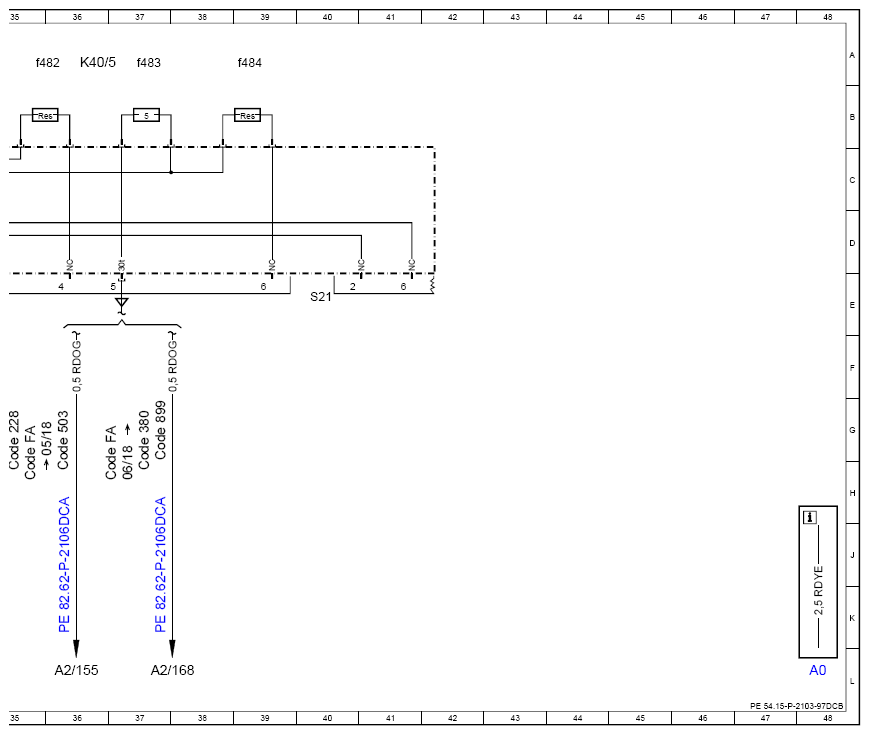

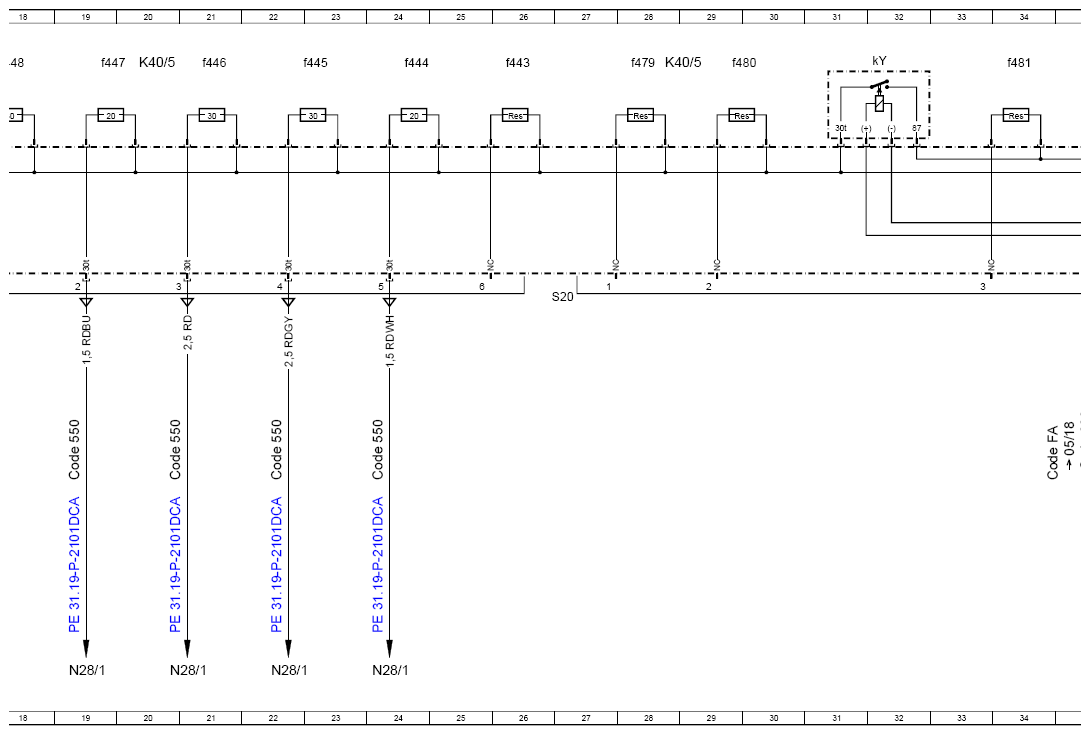

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97DCB
Model 238 up to model year 2021 Fuse and relay box K40/5, connector S5, S11, S12, S14, S20, S21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A2/155 | Telephone and Remote Park-Pilot/stationary heater antenna changeover switch | 36L |
| A2/168 | Telephone antenna changeover switch | 37L |
| Code 228 | Stationary heater | 35H |
| Code 380 | Car telephony package | 37H |
| Code 489 | AIR BODY CONTROL | 8H |
| Code 503 | Pre-installation for Remote Parking Pilot | 36H |
| Code 550 | Trailer hitch | 21H |
| Code 550 | Trailer hitch | 19H |
| Code 550 | Trailer hitch | 17H |
| Code 550 | Trailer hitch | 24H |
| Code 550 | Trailer hitch | 22H |
| Code 881 | Remote trunk closing | 14H |
| Code 899 | Multifunction telephony | 37G |
| Code 906 | Front armrest heater | 11H |
| Code FA | CABRIOLET | 9H |
| Code FA | CABRIOLET | 12H |
| Code FA | CABRIOLET | 37H |
| Code FA | CABRIOLET | 35H |
| Code FA | CABRIOLET | 35H |
| F32/4 | Vehicle interior pre-fuse box | 4L |
| F32/4f7 | Fuse 7 | 3K |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5f424 | Fuse 424 | 13A |
| K40/5f425 | Fuse 425 | 11A |
| K40/5f426 | Fuse 426 | 10A |
| K40/5f427 | Fuse 427 | 6A |
| K40/5f428 | Fuse 428 | 8A |
| K40/5f429 | Fuse 429 | 5A |
| K40/5f435 | Fuse 435 | 14A |
| K40/5f436 | Fuse 436 | 16A |
| K40/5f443 | Fuse 443 | 26A |
| K40/5f444 | Fuse 444 | 24A |
| K40/5f445 | Fuse 445 | 23A |
| K40/5f446 | Fuse 446 | 21A |
| K40/5f447 | Fuse 447 | 19A |
| K40/5f448 | Fuse 448 | 18A |
| K40/5f479 | Fuse 479 | 28A |
| K40/5f480 | Fuse 480 | 29A |
| K40/5f481 | Fuse 481 | 34A |
| K40/5f482 | Fuse 482 | 35A |
| K40/5f483 | Fuse 483 | 37A |
| K40/5f484 | Fuse 484 | 39A |
| K40/5kY | Backup relay | 32A |
| N121 | Trunk lid control, control unit | 14L |
| N25/7 | AIRSCARF control unit | 9L |
| N25/7 | AIRSCARF control unit | 12L |
| N28/1 | Trailer recognition control unit | 20L |
| N28/1 | Trailer recognition control unit | 19L |
| N28/1 | Trailer recognition control unit | 17L |
| N28/1 | Trailer recognition control unit | 24L |
| N28/1 | Trailer recognition control unit | 22L |
| N5 | Armrest heater control unit | 11L |
| N51/8 | AIR BODY CONTROL Plus control unit | 8L |
