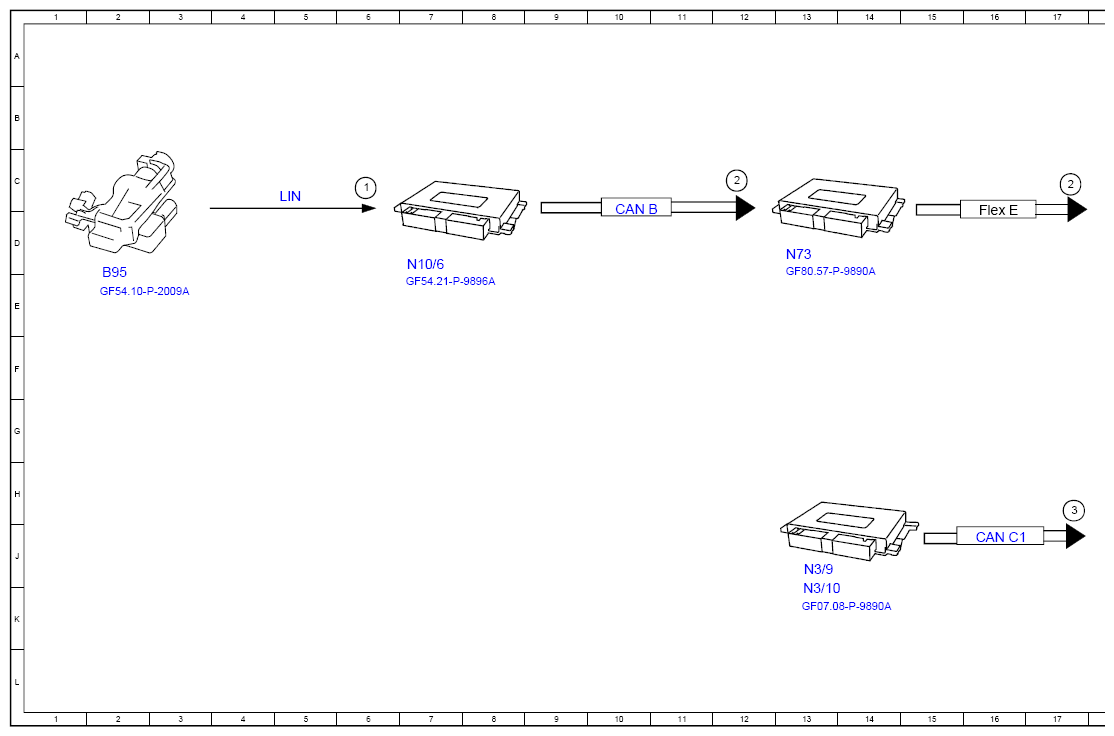

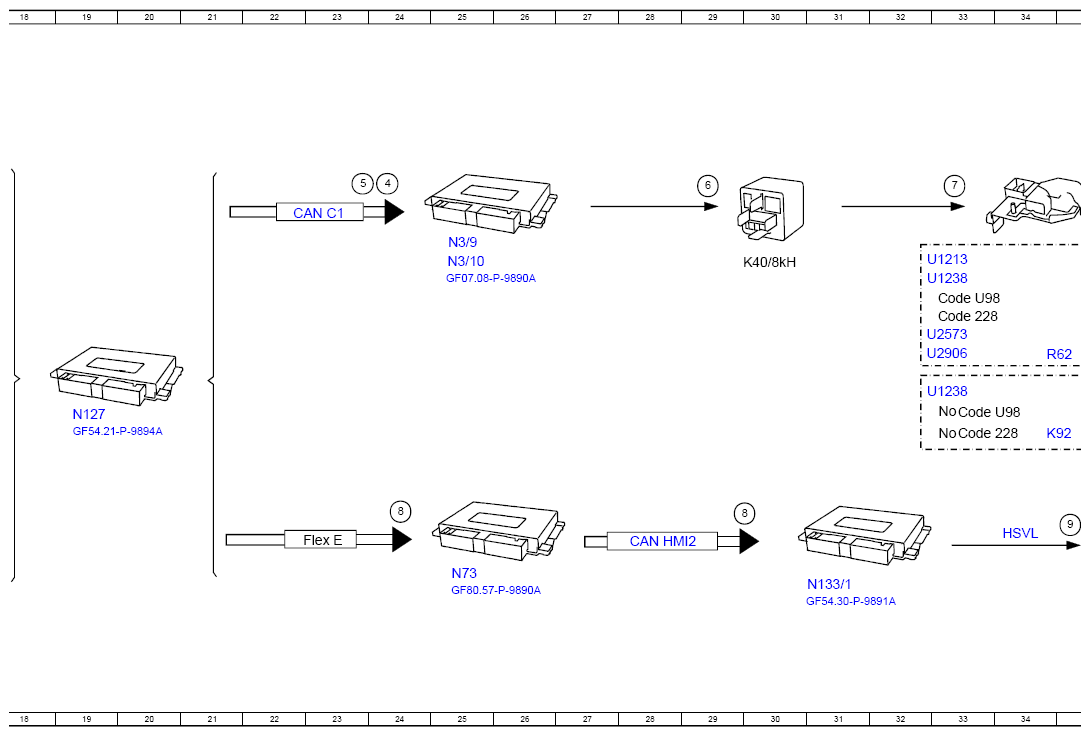

Function Schematic, ECO Start/Stop Function Energy Management - PE54.10-P-2500-97D
Model 213 as of model year 2021 except code B01 (48V technology) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
Model 238, 257 as of model year 2021 except code B01 (48V technology)
Model 290 as of model year 2021 except code B01 (48V technology) except code ME10 (Hybrid vehicle (plug-in, PHEV))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Battery sensor, signal | 6C |
| 2 | On-board electrical system energy state, signal | 12C |
| 2 | On-board electrical system energy state, signal | 17C |
| 3 | Engine running, signal | 18J |
| 4 | Engine stop, request | 24C |
| 5 | Engine start, request | 23C |
| 6 | Starter circuit 50 relay, actuation | 29C |
| 7 | Circuit 50, status | 33C |
| 8 | Instrument cluster message, request | 24H |
| 8 | Instrument cluster message, request | 30H |
| 9 | Image data, signal | 35H |
| A40/16 | Head unit/instrument cluster display cluster | 37K |
| B95 | Battery sensor | 2E |
| CAN B | Interior CAN | 10D |
| CAN C1 | Drive train CAN | 16J |
| CAN C1 | Drive train CAN | 23D |
| CAN HMI2 | User interface CAN 2 | 28J |
| Code 228 | Stationary heater | 33E |
| Code 228 | Stationary heater | 33G |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 33G |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 33E |
| Flex E | Chassis Flex Ray | 23J |
| Flex E | Chassis Flex Ray | 16D |
| HSVL | High-speed video I ink | 34J |
| K40/8kH | Starter circuit 50 relay | 30D |
| K92 | Starter front-end relay | 34G |
| LIN | Local Interconnect Network | 5C |
| N10/6 | Front SAM control unit | 7D |
| N127 | Drivetrain control unit | 19G |
| N133/1 | Instrument cluster control unit | 31K |
| N3/10 | ME-SFI [ME] control unit | 13K |
| N3/10 | ME-SFI [ME] control unit | 25D |
| N3/9 | CDI control unit | 13J |
| N3/9 | CDI control unit | 25D |
| N73 | Electronic ignition switch control unit | 25J |
| N73 | Electronic ignition switch control unit | 13D |
| R62 | Voltage dip limiter | 34F |
| U1213 | Valid for model 213 | 32D |
| U1238 | Valid for model 238 | 32E |
| U1238 | Valid for model 238 | 32F |
| U2573 | Valid for model 257.3 | 32F |
| U2906 | Valid for model 290. 6 | 32F |
