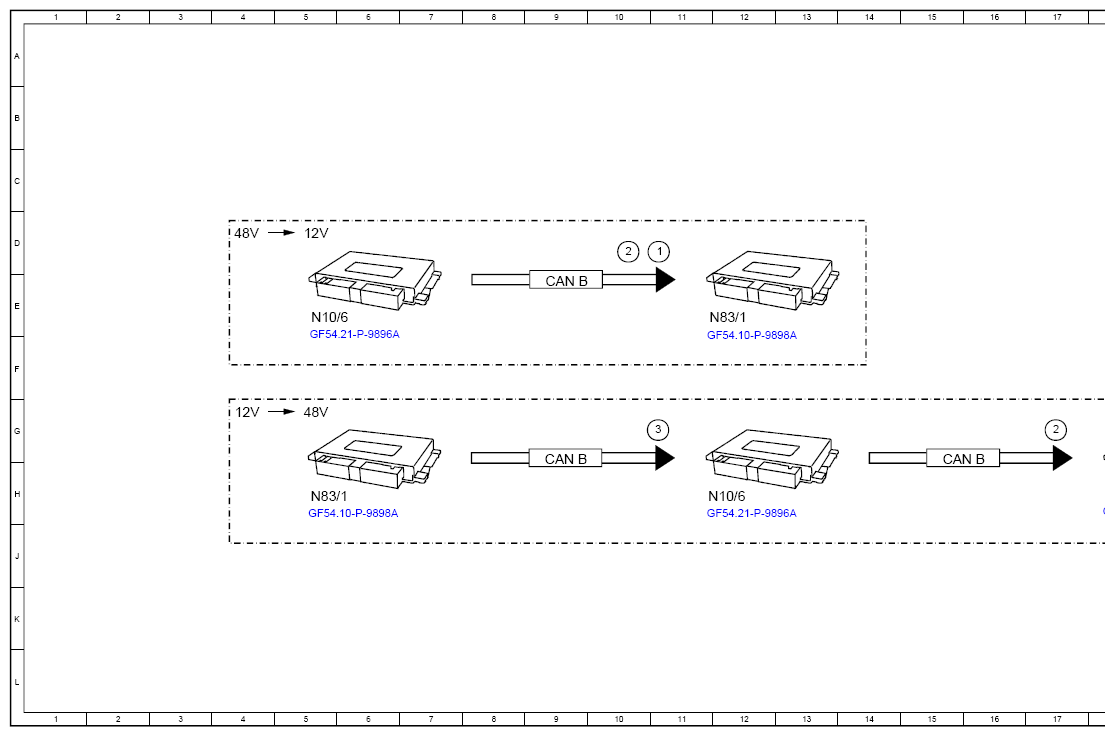

Function Schematic For Charging On-Board Electrical System Battery Through DC/DC Converter - PE54.10-P-2510-97A
Model 167 with code B01 (48V technology)
Model 213, 238, 257, 290 as of model year 2021 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Energy transfer (buck mode), request | 11D |
| 2 | Specified charging voltage, request | 17G |
| 2 | Specified charging voltage, request | 10D |
| 3 | Energy transfer (boost mode), request | 3G |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 15H |
| CAN B | Interior CAN | 9H |
| N10/6 | Front SAM control unit | 5E |
| N10/6 | Front SAM control unit | 12H |
| N83/1 | DC/DC converter control unit | 12E |
| N83/1 | DC/DC converter control unit | 18H |
| N83/1 | DC/DC converter control unit | 5H |
