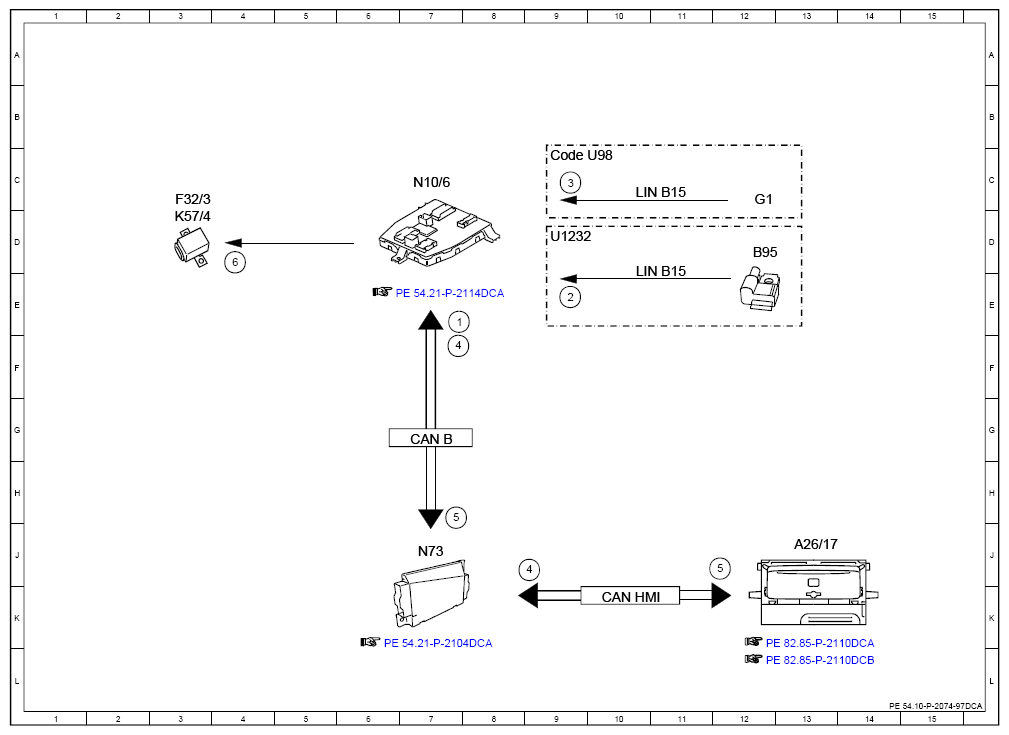

Electrical Function Schematic For No-Load Current Management - PE54.10-P-2074-97DCA
Model 238 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7E |
| 2 | Battery sensor, signal | 9E |
| 3 | On-board electrical system battery, signal | 9C |
| 4 | Rest mode, request | 7E |
| 4 | Rest mode, request | 9J |
| 5 | Rest mode, status | 8H |
| 5 | Rest mode, status | 12J |
| 6 | Battery disconnect switch relay, actuation | 4D |
| A26/17 | Head unit | 13J |
| B95 | Battery sensor | 12D |
| CAN B | Interior CAN | 7G |
| CAN HMI | User interface CAN | 10K |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 9C |
| F32/3 | Engine compartment pre-fuse box | 3C |
| G1 | On-board electrical system battery | 12C |
| K57/4 | Battery disconnect switch relay | 3D |
| LIN B15 | Battery sensor LIN | 10E |
| LIN B15 | Battery sensor LIN | 10C |
| N10/6 | Front SAM control unit | 7C |
| N73 | Electronic ignition switch control unit | 7J |
| U1232 | Not valid for code U98 (LITHIUM-ION STARTER BATTERY (LISB)) | 9D |
