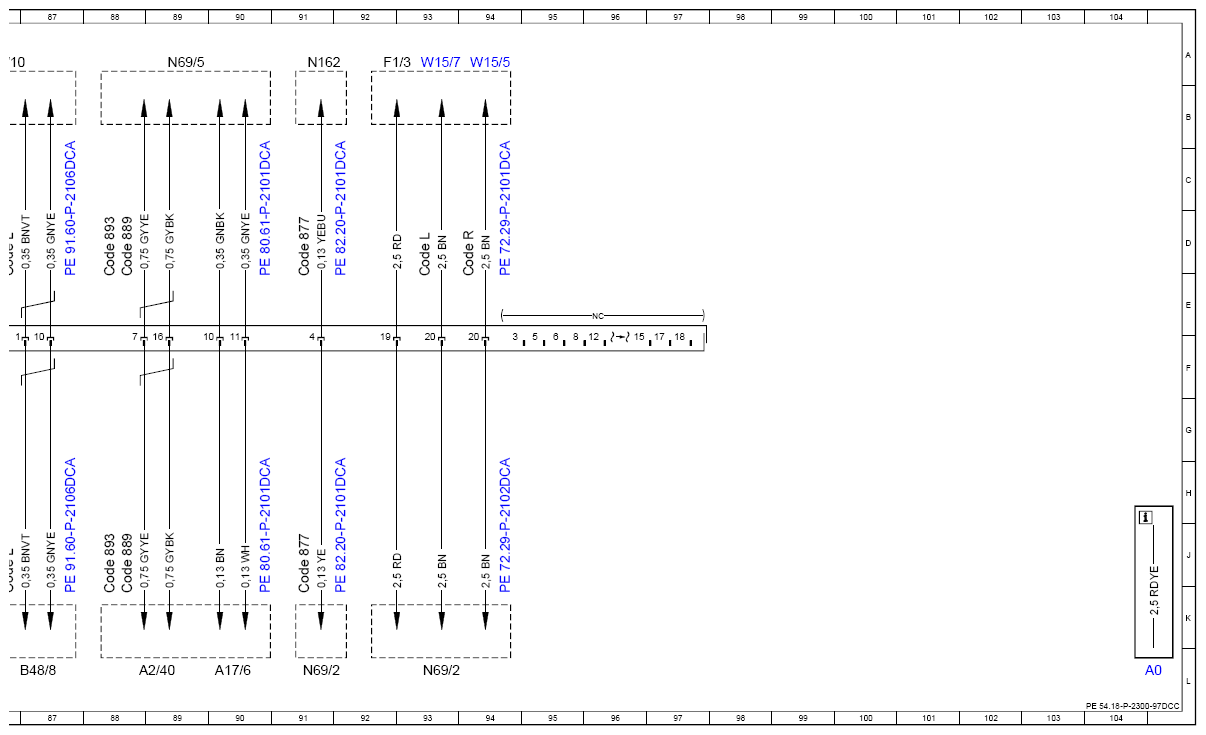

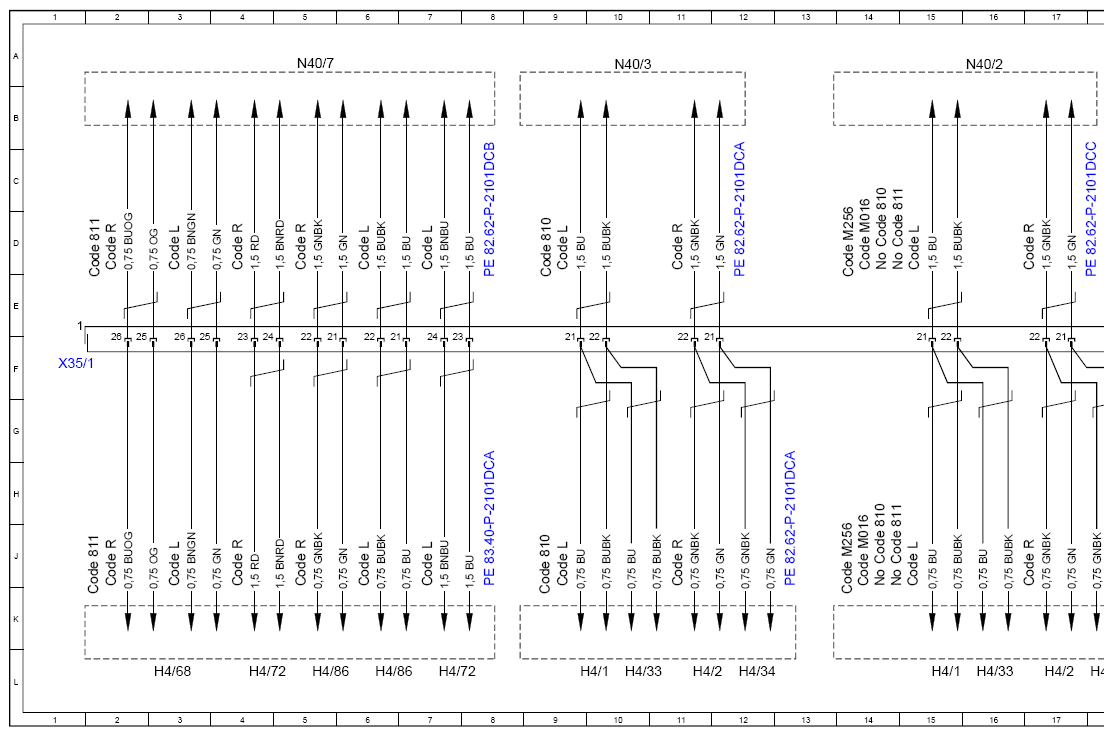

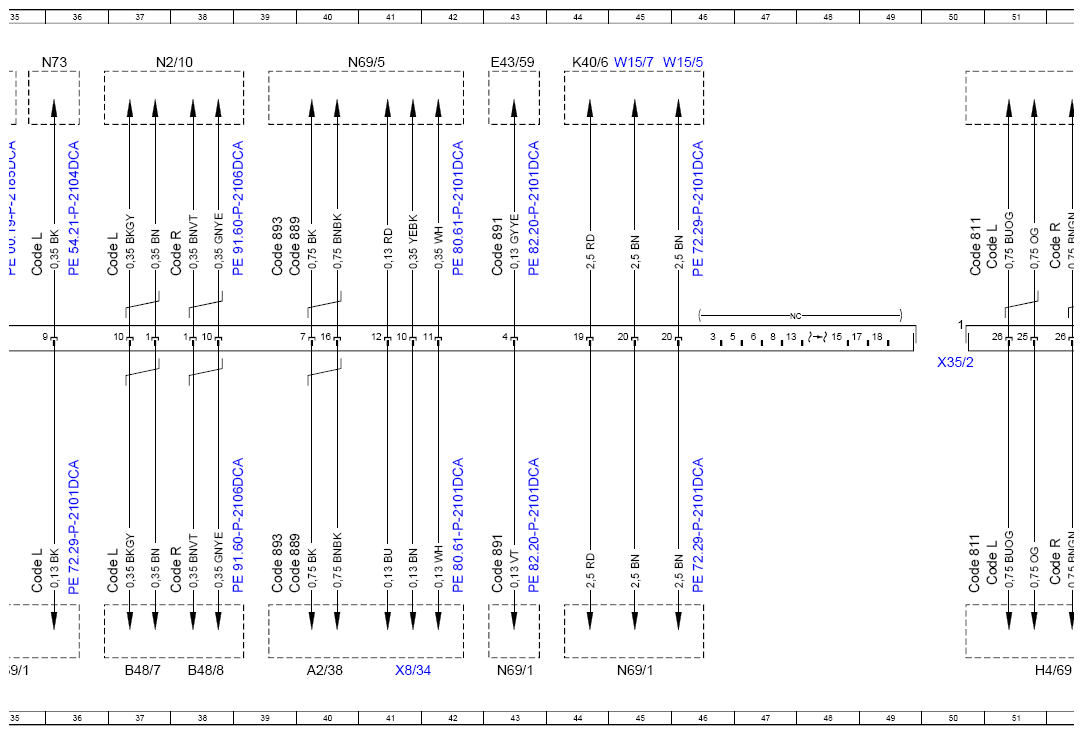

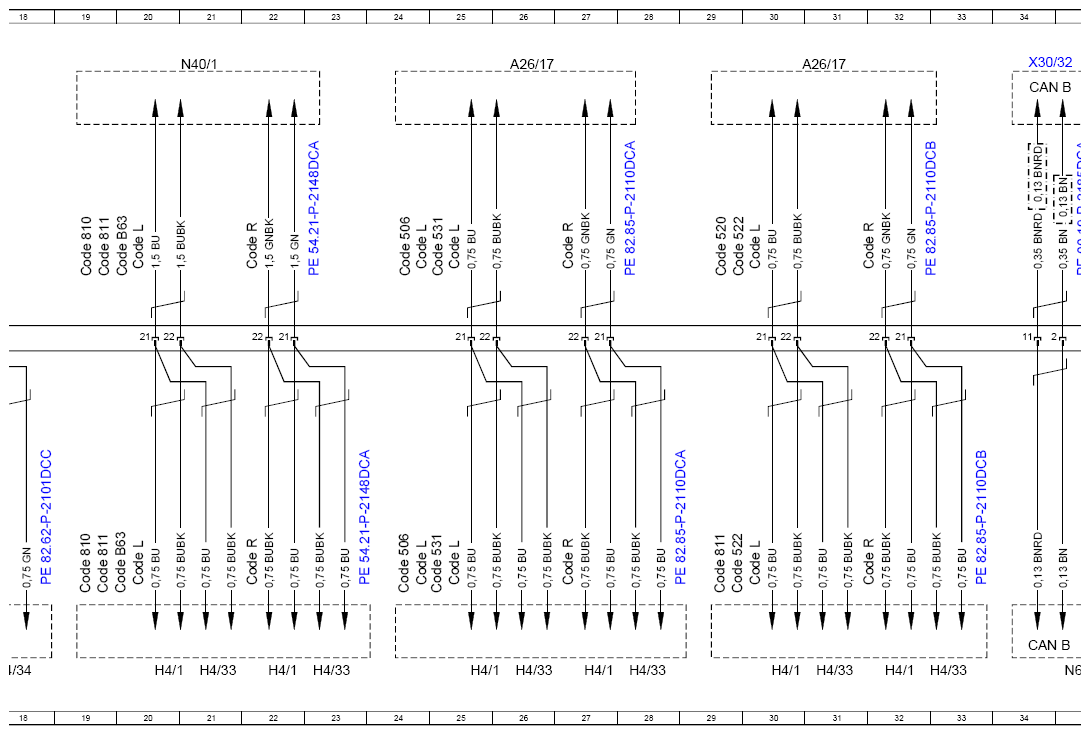

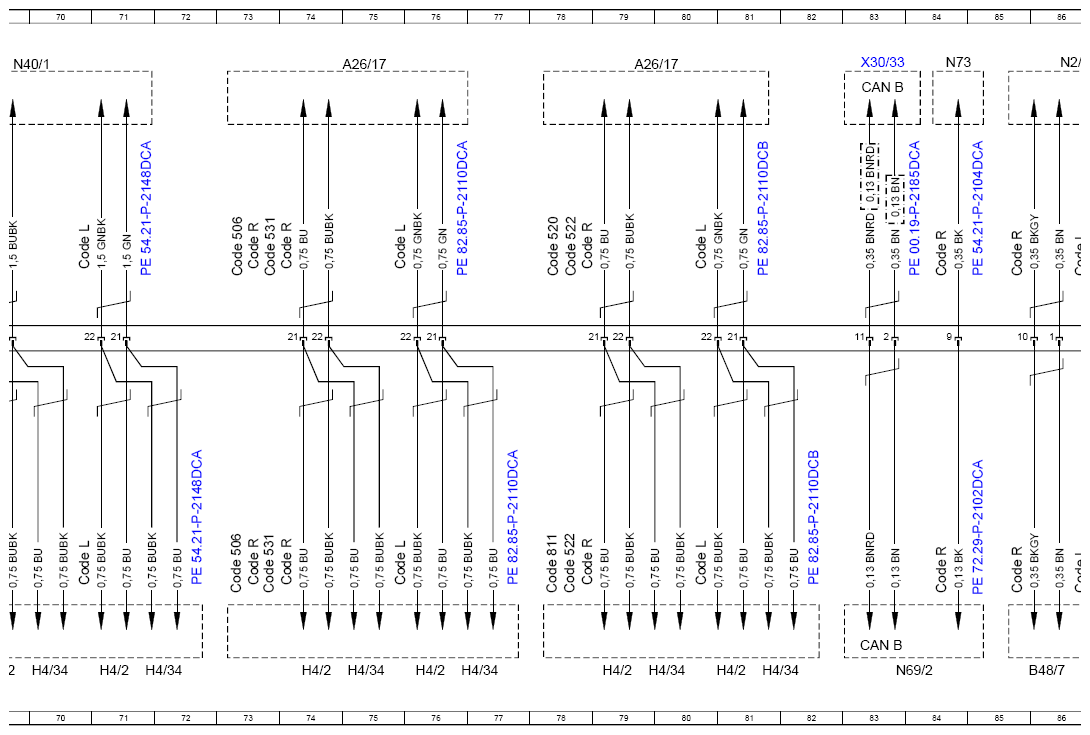

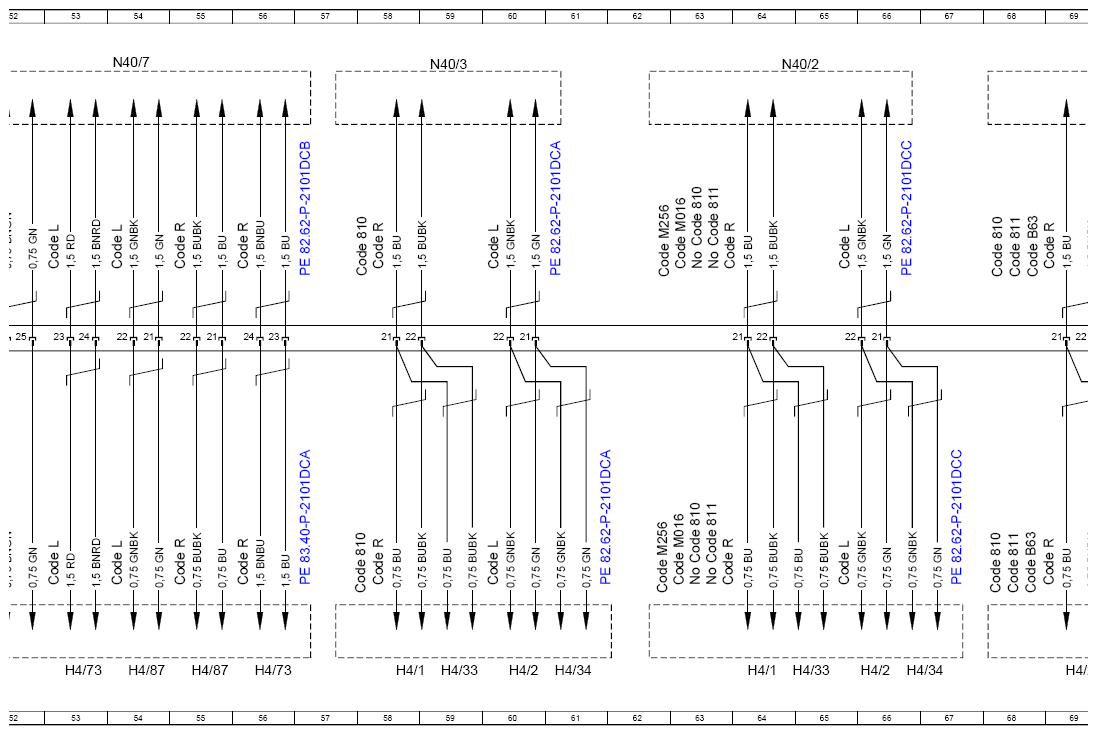

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DCC
Model 238 up to model year 2021 X35/1, X35/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 105L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 90L |
| A2/38 | Left front door KEYLESS-GO antenna | 40L |
| A2/40 | Right front door KEYLESS-GO antenna | 89L |
| A26/17 | Head unit | 31A |
| A26/17 | Head unit | 26A |
| A26/17 | Head unit | 79A |
| A26/17 | Head unit | 75A |
| B48/7 | Left front door pressure sensor | 37L |
| B48/7 | Left front door pressure sensor | 86L |
| B48/8 | Right front door pressure sensor | 38L |
| B48/8 | Right front door pressure sensor | 87L |
| CAN B | Interior CAN | 34L |
| CAN B | Interior CAN | 34B |
| CAN B | Interior CAN | 83L |
| CAN B | Interior CAN | 83B |
| Code 506 | Audio 20 NTG 5.5 radio | 24K |
| Code 506 | Audio 20 NTG 5.5 radio | 24E |
| Code 506 | Audio 20 NTG 5.5 radio | 73K |
| Code 506 | Audio 20 NTG 5.5 radio | 73E |
| Code 520 | Audio 20 USB | 29E |
| Code 520 | Audio 20 USB | 78E |
| Code 522 | Audio 20 radio | 30K |
| Code 522 | Audio 20 radio | 30E |
| Code 522 | Audio 20 radio | 78K |
| Code 522 | Audio 20 radio | 78E |
| Code 531 | COMAND APS | 25K |
| Code 531 | COMAND APS | 25E |
| Code 531 | COMAND APS | 73K |
| Code 531 | COMAND APS | 73E |
| Code 810 | Sound system | 9K |
| Code 810 | Sound system | 14J |
| Code 810 | Sound system | 19K |
| Code 810 | Sound system | 9E |
| Code 810 | Sound system | 14D |
| Code 810 | Sound system | 19E |
| Code 810 | Sound system | 58K |
| Code 810 | Sound system | 63J |
| Code 810 | Sound system | 68K |
| Code 810 | Sound system | 58E |
| Code 810 | Sound system | 68E |
| Code 810 | Sound system | 63D |
| Code 811 | Advanced sound system | 2K |
| Code 811 | Advanced sound system | 15J |
| Code 811 | Advanced sound system | 19K |
| Code 811 | Advanced sound system | 29K |
| Code 811 | Advanced sound system | 2E |
| Code 811 | Advanced sound system | 15D |
| Code 811 | Advanced sound system | 19E |
| Code 811 | Advanced sound system | 50K |
| Code 811 | Advanced sound system | 63J |
| Code 811 | Advanced sound system | 68K |
| Code 811 | Advanced sound system | 78K |
| Code 811 | Advanced sound system | 50E |
| Code 811 | Advanced sound system | 68E |
| Code 811 | Advanced sound system | 63D |
| Code 877 | Ambiance illumination | 91K |
| Code 877 | Ambiance illumination | 91E |
| Code 889 | KEYLESS-GO | 40K |
| Code 889 | KEYLESS-GO | 40E |
| Code 889 | KEYLESS-GO | 88K |
| Code 889 | KEYLESS-GO | 88E |
| Code 891 | Premium ambient lighting | 43K |
| Code 891 | Premium ambient lighting | 43E |
| Code 893 | KEYLESS-GO start function | 39K |
| Code 893 | KEYLESS-GO start function | 39E |
| Code 893 | KEYLESS-GO start function | 88K |
| Code 893 | KEYLESS-GO start function | 88E |
| Code B63 | Sporty engine sound | 20K |
| Code B63 | Sporty engine sound | 20E |
| Code B63 | Sporty engine sound | 68K |
| Code B63 | Sporty engine sound | 68E |
| Code L | LEFT-HAND DRIVE | 3J |
| Code L | LEFT-HAND DRIVE | 9J |
| Code L | LEFT-HAND DRIVE | 7J |
| Code L | LEFT-HAND DRIVE | 6J |
| Code L | LEFT-HAND DRIVE | 15J |
| Code L | LEFT-HAND DRIVE | 20J |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 30J |
| Code L | LEFT-HAND DRIVE | 24J |
| Code L | LEFT-HAND DRIVE | 35K |
| Code L | LEFT-HAND DRIVE | 37K |
| Code L | LEFT-HAND DRIVE | 3D |
| Code L | LEFT-HAND DRIVE | 15D |
| Code L | LEFT-HAND DRIVE | 9D |
| Code L | LEFT-HAND DRIVE | 7D |
| Code L | LEFT-HAND DRIVE | 6D |
| Code L | LEFT-HAND DRIVE | 20D |
| Code L | LEFT-HAND DRIVE | 24D |
| Code L | LEFT-HAND DRIVE | 30D |
| Code L | LEFT-HAND DRIVE | 25D |
| Code L | LEFT-HAND DRIVE | 35E |
| Code L | LEFT-HAND DRIVE | 37E |
| Code L | LEFT-HAND DRIVE | 51J |
| Code L | LEFT-HAND DRIVE | 54J |
| Code L | LEFT-HAND DRIVE | 53J |
| Code L | LEFT-HAND DRIVE | 65J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 70J |
| Code L | LEFT-HAND DRIVE | 76J |
| Code L | LEFT-HAND DRIVE | 86K |
| Code L | LEFT-HAND DRIVE | 80J |
| Code L | LEFT-HAND DRIVE | 54D |
| Code L | LEFT-HAND DRIVE | 53D |
| Code L | LEFT-HAND DRIVE | 51D |
| Code L | LEFT-HAND DRIVE | 65D |
| Code L | LEFT-HAND DRIVE | 70D |
| Code L | LEFT-HAND DRIVE | 60D |
| Code L | LEFT-HAND DRIVE | 86E |
| Code L | LEFT-HAND DRIVE | 80D |
| Code L | LEFT-HAND DRIVE | 76D |
| Code L | LEFT-HAND DRIVE | 93E |
| Code M016 | Uprated high-performance engine | 14J |
| Code M016 | Uprated high-performance engine | 14D |
| Code M016 | Uprated high-performance engine | 63J |
| Code M016 | Uprated high-performance engine | 63D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 14K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 14E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 62K |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 62E |
| Code R | RIGHT-HAND DRIVE | 2J |
| Code R | RIGHT-HAND DRIVE | 4J |
| Code R | RIGHT-HAND DRIVE | 5J |
| Code R | RIGHT-HAND DRIVE | 17J |
| Code R | RIGHT-HAND DRIVE | 11J |
| Code R | RIGHT-HAND DRIVE | 22J |
| Code R | RIGHT-HAND DRIVE | 27J |
| Code R | RIGHT-HAND DRIVE | 38K |
| Code R | RIGHT-HAND DRIVE | 32J |
| Code R | RIGHT-HAND DRIVE | 2D |
| Code R | RIGHT-HAND DRIVE | 17D |
| Code R | RIGHT-HAND DRIVE | 11D |
| Code R | RIGHT-HAND DRIVE | 4D |
| Code R | RIGHT-HAND DRIVE | 5D |
| Code R | RIGHT-HAND DRIVE | 22D |
| Code R | RIGHT-HAND DRIVE | 27D |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 32D |
| Code R | RIGHT-HAND DRIVE | 52J |
| Code R | RIGHT-HAND DRIVE | 58J |
| Code R | RIGHT-HAND DRIVE | 56J |
| Code R | RIGHT-HAND DRIVE | 55J |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 69J |
| Code R | RIGHT-HAND DRIVE | 78J |
| Code R | RIGHT-HAND DRIVE | 74J |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 84K |
| Code R | RIGHT-HAND DRIVE | 85K |
| Code R | RIGHT-HAND DRIVE | 58D |
| Code R | RIGHT-HAND DRIVE | 56D |
| Code R | RIGHT-HAND DRIVE | 55D |
| Code R | RIGHT-HAND DRIVE | 52D |
| Code R | RIGHT-HAND DRIVE | 64D |
| Code R | RIGHT-HAND DRIVE | 69D |
| Code R | RIGHT-HAND DRIVE | 84E |
| Code R | RIGHT-HAND DRIVE | 85E |
| Code R | RIGHT-HAND DRIVE | 78D |
| Code R | RIGHT-HAND DRIVE | 74D |
| Code R | RIGHT-HAND DRIVE | 73D |
| Code R | RIGHT-HAND DRIVE | 94E |
| E43/59 | Driver side air vent ambiance illumination | 43A |
| F1/3 | Passenger-side A-pillar fuse box | 92A |
| H4/1 | Left front door midrange speaker | 10L |
| H4/1 | Left front door midrange speaker | 15L |
| H4/1 | Left front door midrange speaker | 22L |
| H4/1 | Left front door midrange speaker | 20L |
| H4/1 | Left front door midrange speaker | 27L |
| H4/1 | Left front door midrange speaker | 25L |
| H4/1 | Left front door midrange speaker | 30L |
| H4/1 | Left front door midrange speaker | 32L |
| H4/1 | Left front door midrange speaker | 58L |
| H4/1 | Left front door midrange speaker | 64L |
| H4/2 | Right front door midrange speaker | 17L |
| H4/2 | Right front door midrange speaker | 11L |
| H4/2 | Right front door midrange speaker | 66L |
| H4/2 | Right front door midrange speaker | 60L |
| H4/2 | Right front door midrange speaker | 71L |
| H4/2 | Right front door midrange speaker | 69L |
| H4/2 | Right front door midrange speaker | 79L |
| H4/2 | Right front door midrange speaker | 74L |
| H4/2 | Right front door midrange speaker | 76L |
| H4/2 | Right front door midrange speaker | 81L |
| H4/33 | Left front door tweeter | 16L |
| H4/33 | Left front door tweeter | 10L |
| H4/33 | Left front door tweeter | 31L |
| H4/33 | Left front door tweeter | 21L |
| H4/33 | Left front door tweeter | 23L |
| H4/33 | Left front door tweeter | 28L |
| H4/33 | Left front door tweeter | 26L |
| H4/33 | Left front door tweeter | 33L |
| H4/33 | Left front door tweeter | 65L |
| H4/33 | Left front door tweeter | 59L |
| H4/34 | Right front door tweeter | 12L |
| H4/34 | Right front door tweeter | 18L |
| H4/34 | Right front door tweeter | 61L |
| H4/34 | Right front door tweeter | 66L |
| H4/34 | Right front door tweeter | 72L |
| H4/34 | Right front door tweeter | 70L |
| H4/34 | Right front door tweeter | 80L |
| H4/34 | Right front door tweeter | 75L |
| H4/34 | Right front door tweeter | 77L |
| H4/34 | Right front door tweeter | 81L |
| H4/68 | Left front door sound system tweeter | 3L |
| H4/69 | Right front door sound system tweeter | 51L |
| H4/72 | Left front door sound system woofer/midrange speaker | 7L |
| H4/72 | Left front door sound system woofer/midrange speaker | 4L |
| H4/73 | Right front door sound system woofer/midrange speaker | 56L |
| H4/73 | Right front door sound system woofer/midrange speaker | 53L |
| H4/86 | Left front door midrange speaker | 6L |
| H4/86 | Left front door midrange speaker | 5L |
| H4/87 | Right front door midrange speaker | 54L |
| H4/87 | Right front door midrange speaker | 55L |
| K40/6 | Driver-side fuse and relay module | 44A |
| N162 | Ambiance illumination control unit | 91A |
| N2/10 | Supplemental restraint system control unit | 37A |
| N2/10 | Supplemental restraint system control unit | 86A |
| N40/1 | Engine sound control unit | 21A |
| N40/1 | Engine sound control unit | 69A |
| N40/2 | Sound system midline amplifier control unit | 16A |
| N40/2 | Sound system midline amplifier control unit | 64A |
| N40/3 | Sound system amplifier control unit | 10A |
| N40/3 | Sound system amplifier control unit | 59A |
| N40/7 | Advanced sound system amplifier control unit | 5A |
| N40/7 | Advanced sound system amplifier control unit | 54A |
| N69/1 | Left front door control unit | 45L |
| N69/1 | Left front door control unit | 35L |
| N69/1 | Left front door control unit | 43L |
| N69/2 | Right front door control unit | 83L |
| N69/2 | Right front door control unit | 93L |
| N69/2 | Right front door control unit | 91L |
| N69/5 | KEYLESS-GO control unit | 40A |
| N69/5 | KEYLESS-GO control unit | 89A |
| N73 | Electronic ignition switch control unit | 36A |
| N73 | Electronic ignition switch control unit | 84A |
| W15/5 | Left front footwell ground point | 46A |
| W15/5 | Left front footwell ground point | 94A |
| W15/7 | Right front footwell ground point | 45A |
| W15/7 | Right front footwell ground point | 93A |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 34A |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 83A |
| X35/1 | Driver door electrical connector | 1F |
| X35/2 | Front passenger door electrical connector | 50F |
| X8/34 | Left front KEYLESS GO door handle electrical connector | 41L |
