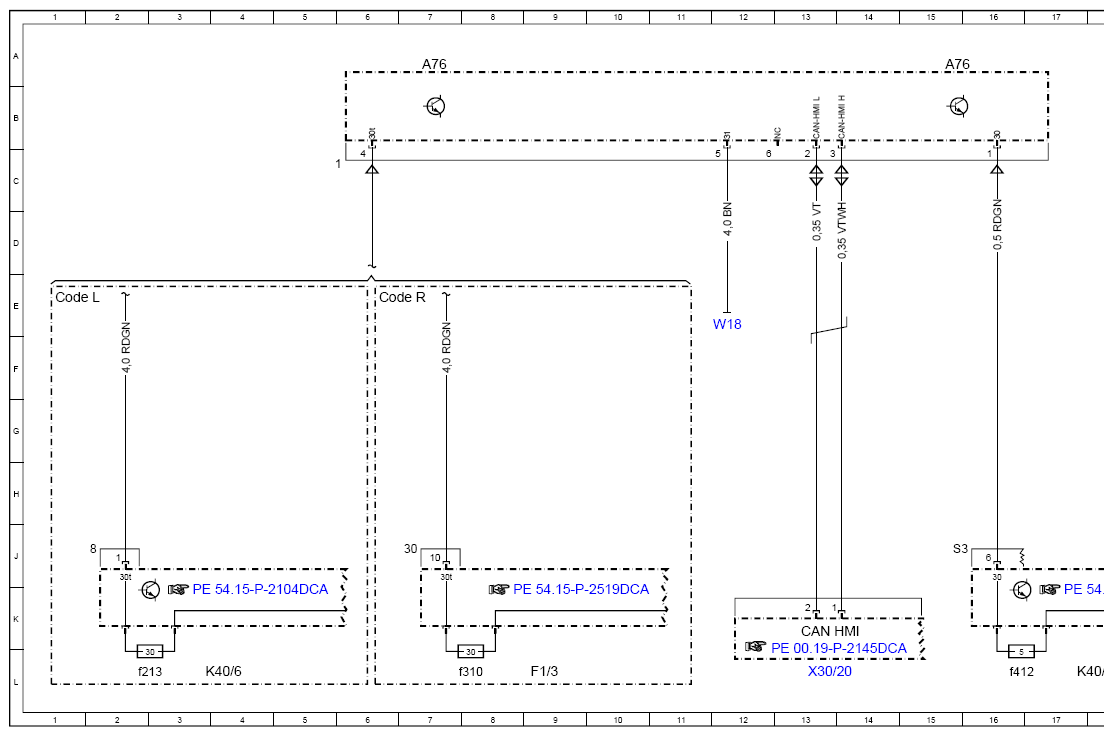

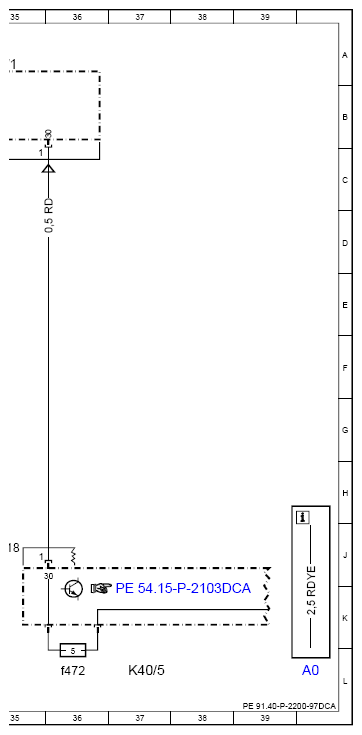

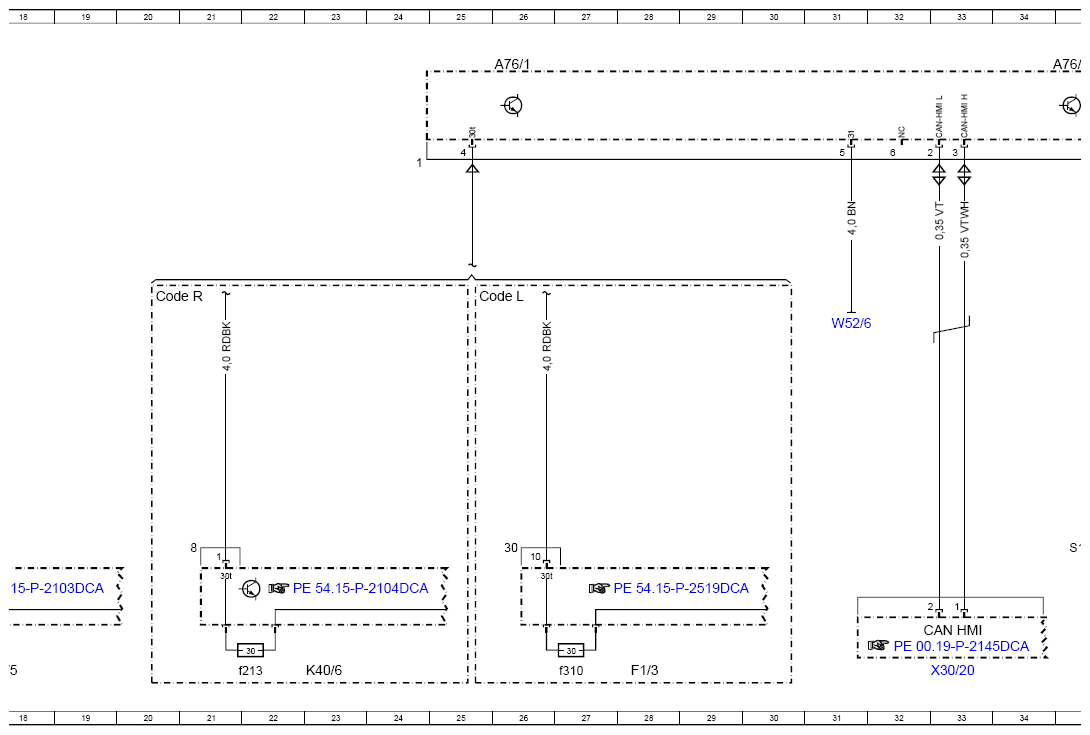

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97DCA
Model 238 up to model year 2021 Reversible emergency tensioning retractor A76, A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A76 | Left front reversible emergency tensioning retractor | 7A |
| A76 | Left front reversible emergency tensioning retractor | 15A |
| A76/1 | Right front reversible emergency tensioning retractor | 26A |
| A76/1 | Right front reversible emergency tensioning retractor | 35A |
| CAN HMI | User interface CAN | 13K |
| CAN HMI | User interface CAN | 33K |
| Code L | LEFT-HAND DRIVE | 25E |
| Code L | LEFT-HAND DRIVE | 1E |
| Code R | RIGHT-HAND DRIVE | 6E |
| Code R | RIGHT-HAND DRIVE | 20E |
| F1/3 | Passenger-side A-pillar fuse box | 9L |
| F1/3 | Passenger-side A-pillar fuse box | 28L |
| F1/3f310 | Fuse 310 | - |
| F1/3f310 | Fuse 310 | - |
| K40/5 | Rear fuse and relay module | 17L |
| K40/5 | Rear fuse and relay module | 37L |
| K40/5f412 | Fuse 412 | - |
| K40/5f472 | Fuse 472 | - |
| K40/6 | Driver-side fuse and relay module | 4L |
| K40/6 | Driver-side fuse and relay module | 23L |
| K40/6f213 | Fuse 213 | 2L |
| K40/6f213 | Fuse 213 | 22L |
| W18 | Left front seat crossmember ground point | 12E |
| W52/6 | Right center longitudinal member ground point | 31E |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 13L |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 33L |
