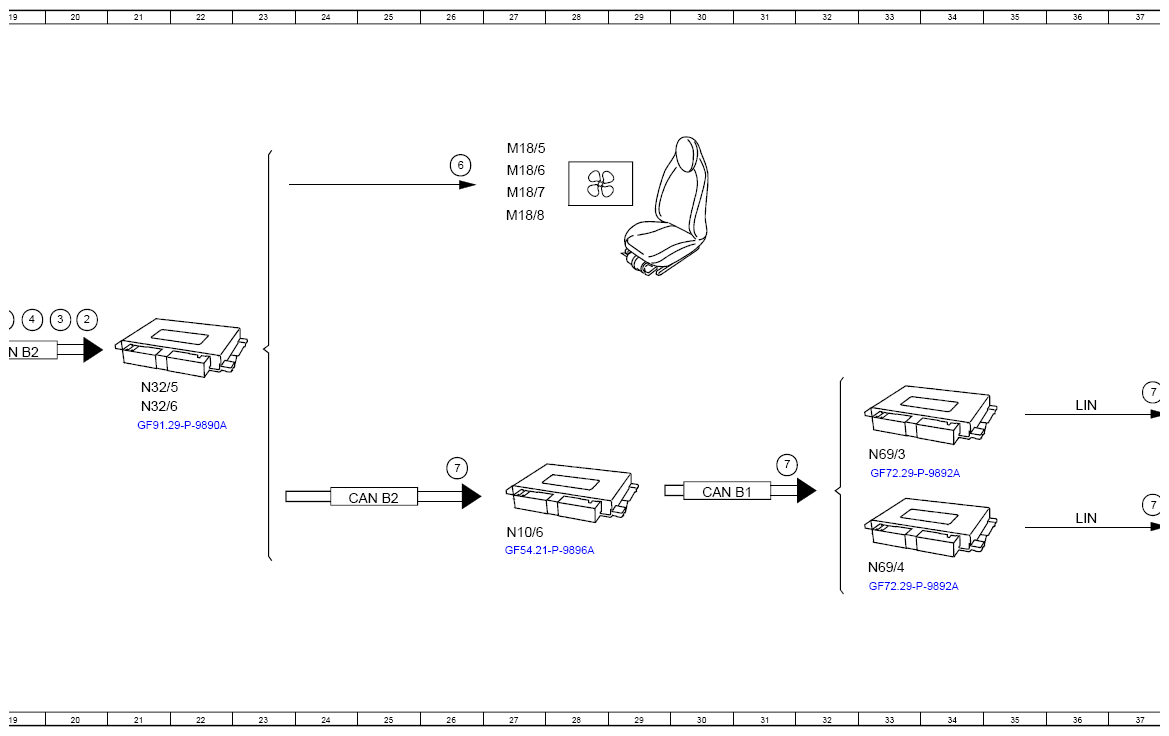

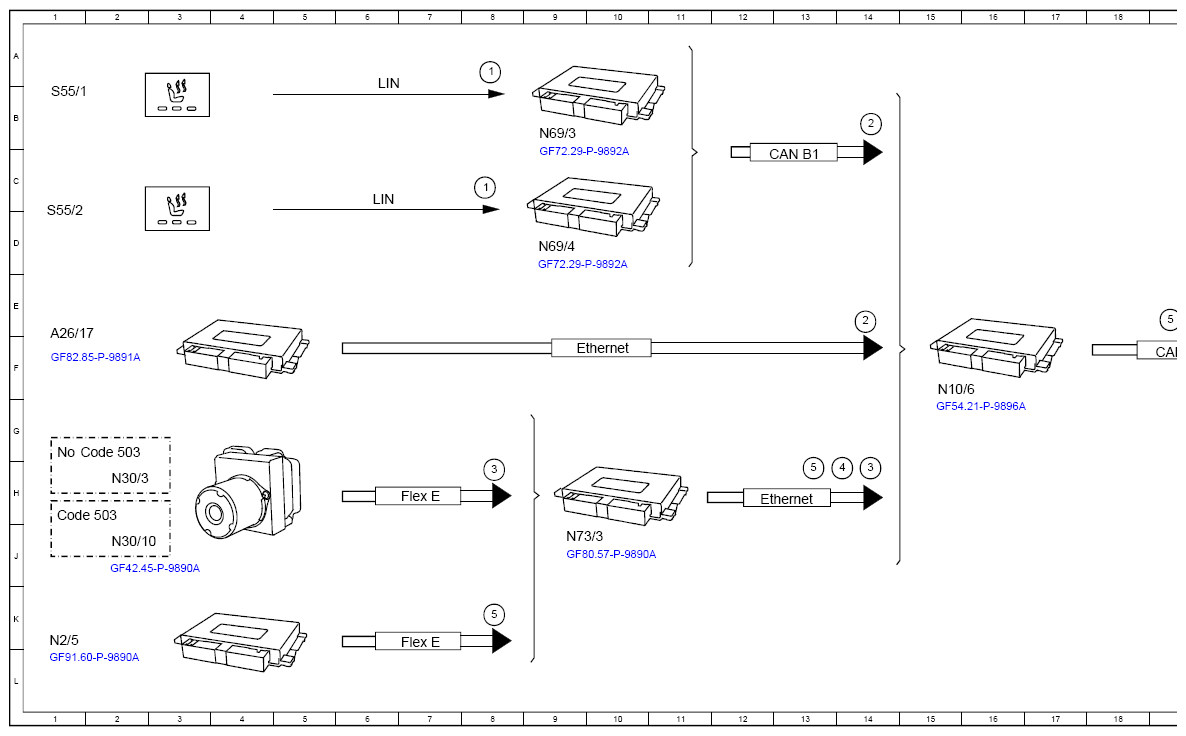

(Function Schematic For Switching On Rear Seat Ventilation - PE91.30-P-2504-97D)
Model 296, 297 with code 402 (Rear seat climate control)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 8A |
| 1 | Seat climate control switch group, status | 8C |
| 2 | Seat ventilation, request | 14B |
| 2 | Seat ventilation, request | 14E |
| 2 | Seat ventilation, request | 20E |
| 3 | Vehicle speed, signal | 14G |
| 3 | Vehicle speed, signal | 8H |
| 3 | Vehicle speed, signal | 20E |
| 4 | Circuit 15, status | 14G |
| 4 | Circuit 15, status | 19E |
| 5 | Crash, signal | 8K |
| 5 | Crash, signal | 13H |
| 5 | Crash, signal | 19E |
| 6 | Seat ventilation motors, actuation | 26B |
| 7 | Seat ventilation, status | 31H |
| 7 | Seat ventilation, status | 37F |
| 7 | Seat ventilation, status | 32G |
| 7 | Seat ventilation, status | 26G |
| A26/17 | Head unit | 1F |
| CAN B1 | CAN 1 for vehicle interior | 13C |
| CAN B1 | CAN 1 for vehicle interior | 30H |
| CAN B2 | CAN 2 for vehicle interior | 19F |
| CAN B2 | CAN 2 for vehicle interior | 25H |
| Code 503 | Remote-controlled parking | 1G |
| Code 503 | Remote-controlled parking | 1H |
| Ethernet | Ethernet | 10F |
| Ethernet | Ethernet | 12H |
| Flex E | Chassis FlexRay | 7H |
| Flex E | Chassis FlexRay | 7K |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36H |
| LIN | Local Interconnect Network | 36G |
| M18/5 | Left rear seat backrest ventilation motors | 27C |
| M18/6 | Left rear seat cushion ventilation motors | 27C |
| M18/7 | Right rear seat backrest ventilation motors | 27C |
| M18/8 | Right rear seat cushion ventilation motors | 27D |
| N10/6 | Front signal acquisition and actuation module control unit | 15F |
| N10/6 | Front signal acquisition and actuation module control unit | 27J |
| N2/5 | Supplemental restraint system control unit | 1K |
| N30/10 | Electronic Stability Program control unit | 2J |
| N30/3 | Electronic Stability Program control unit | 2H |
| N32/5 | Left rear seat control unit | 21F |
| N32/6 | Right rear seat control unit | 21G |
| N69/3 | Left rear door control unit | 9B |
| N69/3 | Left rear door control unit | 33G |
| N69/4 | Right rear door control unit | 9D |
| N69/4 | Right rear door control unit | 33J |
| N73/3 | Electronic ignition switch control unit | 9J |
| S55/1 | Left rear seat adjustment switch group | 1B |
| S55/1 | Left rear seat adjustment switch group | 38G |
| S55/2 | Right rear seat adjustment switch group | 1D |
| S55/2 | Right rear seat adjustment switch group | 38J |
