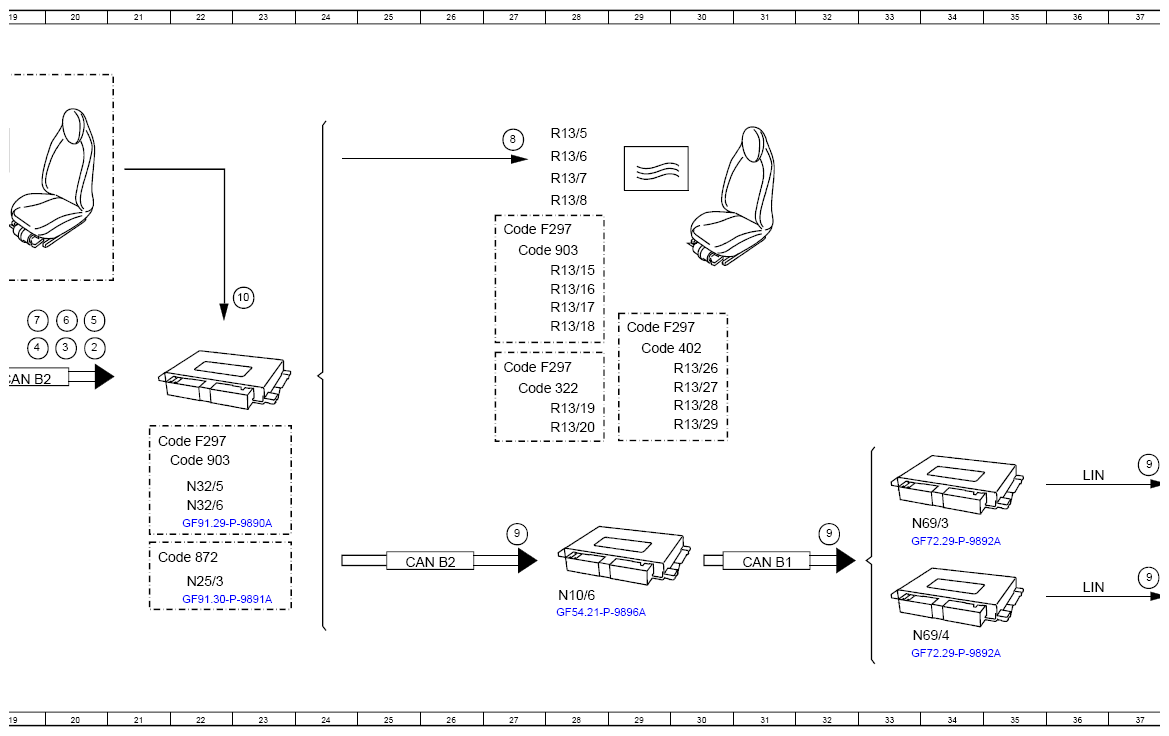

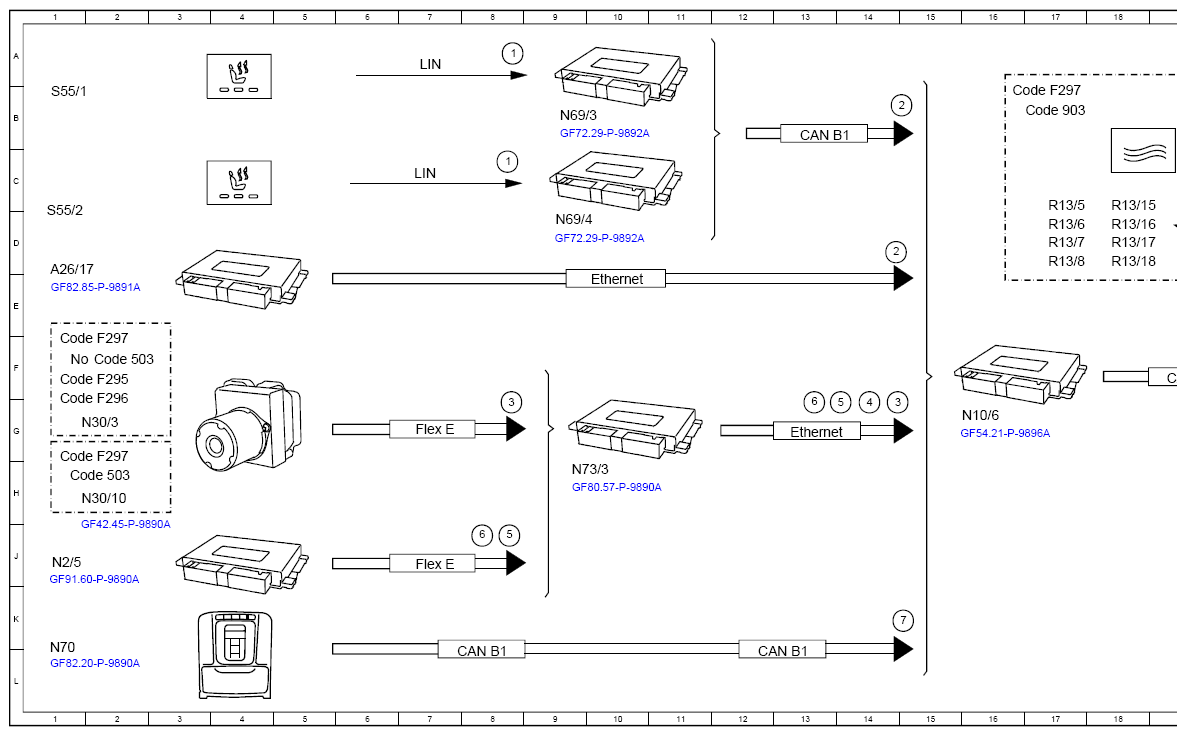

(Function Schematic For Actuating Rear Seat Heating - PE91.30-P-2503-97I)
Model 294, 295, 296, 297 with code 872 (Left and right rear seat heating)
Model 297 with code 402 (Rear seat climate control)
Model 297 with code 903 (Rear comfort seat heating)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 8A |
| 1 | Seat climate control switch group, status | 8C |
| 10 | Heater pad temperature sensor, signal | 23E |
| 2 | Seat heater, request | 15B |
| 2 | Seat heater, request | 15D |
| 2 | Seat heater, request | 20F |
| 3 | Transmission mode, signal | 15G |
| 3 | Transmission mode, signal | 8G |
| 3 | Transmission mode, signal | 20F |
| 4 | Circuit 15, status | 14G |
| 4 | Circuit 15, status | 20F |
| 5 | Seat belt buckle switch, status | 14F |
| 5 | Seat belt buckle switch, status | 21E |
| 5 | Seat belt buckle switch, status | 8H |
| 6 | Crash, signal | 20E |
| 6 | Crash, signal | 8H |
| 6 | Crash, signal | 13F |
| 7 | Interior temperature, signal | 15K |
| 7 | Interior temperature, signal | 19E |
| 8 | Seat heater, actuation | 27B |
| 9 | Seat heater, status | 27J |
| 9 | Seat heater, status | 32J |
| 9 | Seat heater, status | 37H |
| 9 | Seat heater, status | 37J |
| A26/17 | Head unit | 1D |
| CAN B1 | CAN 1 for vehicle interior | 13B |
| CAN B1 | CAN 1 for vehicle interior | 31J |
| CAN B1 | CAN 1 for vehicle interior | 8L |
| CAN B1 | CAN 1 for vehicle interior | 12L |
| CAN B2 | CAN 2 for vehicle interior | 19F |
| CAN B2 | CAN 2 for vehicle interior | 25J |
| Code 322 | Neck warmer in rear passenger compartment | 27F |
| Code 402 | Rear seat climate control | 29F |
| Code 503 | Remote-controlled parking | 2F |
| Code 503 | Remote-controlled parking | 1H |
| Code 872 | Left and right rear seat heating | 21J |
| Code 903 | Rear comfort seat heating | 27D |
| Code 903 | Rear comfort seat heating | 21H |
| Code 903 | Rear comfort seat heating | 17B |
| Code F295 | Model series 295 | 1F |
| Code F296 | Model series 296 | 1G |
| Code F297 | Model series 297 | 21G |
| Code F297 | Model series 297 | 27D |
| Code F297 | Model series 297 | 27F |
| Code F297 | Model series 297 | 1F |
| Code F297 | Model series 297 | 1G |
| Code F297 | Model series 297 | 16B |
| Code F297 | Model series 297 | 29E |
| Ethernet | Ethernet | 10E |
| Ethernet | Ethernet | 13G |
| Flex E | Chassis FlexRay | 7G |
| Flex E | Chassis FlexRay | 7J |
| LIN | Local Interconnect Network | 7A |
| LIN | Local Interconnect Network | 7C |
| LIN | Local Interconnect Network | 36K |
| LIN | Local Interconnect Network | 36H |
| N10/6 | Front signal acquisition and actuation module control unit | 16G |
| N10/6 | Front signal acquisition and actuation module control unit | 28K |
| N2/5 | Supplemental restraint system control unit | 1J |
| N25/3 | Rear seat heaters control unit | 22J |
| N30/10 | Electronic Stability Program control unit | 1H |
| N30/3 | Electronic Stability Program control unit | 1G |
| N32/5 | Left rear seat control unit | 22H |
| N32/6 | Right rear seat control unit | 22H |
| N69/3 | Left rear door control unit | 9B |
| N69/3 | Left rear door control unit | 34J |
| N69/4 | Right rear door control unit | 9D |
| N69/4 | Right rear door control unit | 34K |
| N70 | Overhead control panel control unit | 1L |
| N73/3 | Electronic ignition switch control unit | 9H |
| R13/15 | Left rear seat cushion side bolsters heater pad | 28E |
| R13/15 | Left rear seat cushion side bolsters heater pad | 18C |
| R13/16 | Right rear seat cushion side bolsters heater pad | 28E |
| R13/16 | Right rear seat cushion side bolsters heater pad | 18D |
| R13/17 | Left rear seat backrest side bolsters heater pad | 28E |
| R13/17 | Left rear seat backrest side bolsters heater pad | 18D |
| R13/18 | Right rear seat backrest side bolsters heater pad | 28E |
| R13/18 | Right rear seat backrest side bolsters heater pad | 18D |
| R13/19 | Left rear seat head restraint heater pad | 28G |
| R13/20 | Right rear seat head restraint heater pad | 28G |
| R13/26 | Left rear seat cushion heater pad | 30F |
| R13/27 | Left rear seat backrest heater pad | 30F |
| R13/28 | Right rear seat cushion heater pad | 30G |
| R13/29 | Right rear seat backrest heater pad | 30G |
| R13/5 | Left rear seat cushion heater pad | 28B |
| R13/5 | Left rear seat cushion heater pad | 17C |
| R13/6 | Left rear seat backrest heater pad | 28C |
| R13/6 | Left rear seat backrest heater pad | 17D |
| R13/7 | Right rear seat cushion heater pad | 28C |
| R13/7 | Right rear seat cushion heater pad | 17D |
| R13/8 | Right rear seat backrest heater pad | 28C |
| R13/8 | Right rear seat backrest heater pad | 17D |
| S55/1 | Left rear seat adjustment switch group | 1B |
| S55/1 | Left rear seat adjustment switch group | 38H |
| S55/2 | Right rear seat adjustment switch group | 1D |
| S55/2 | Right rear seat adjustment switch group | 38K |
