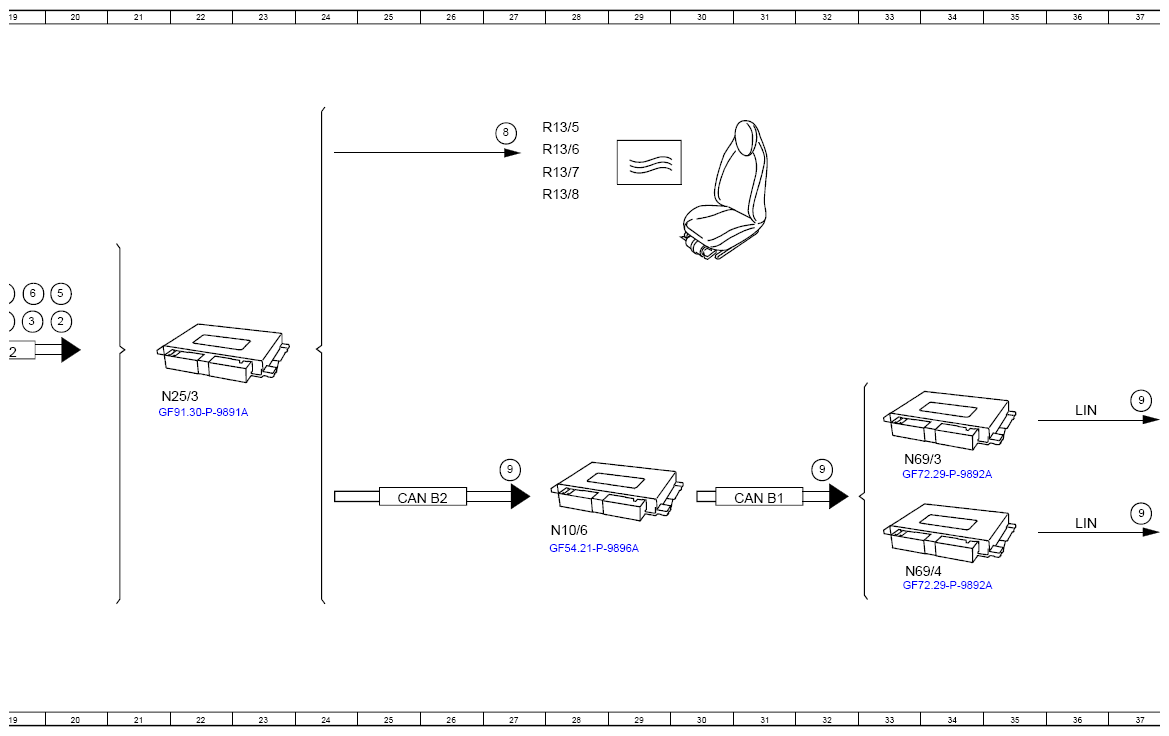

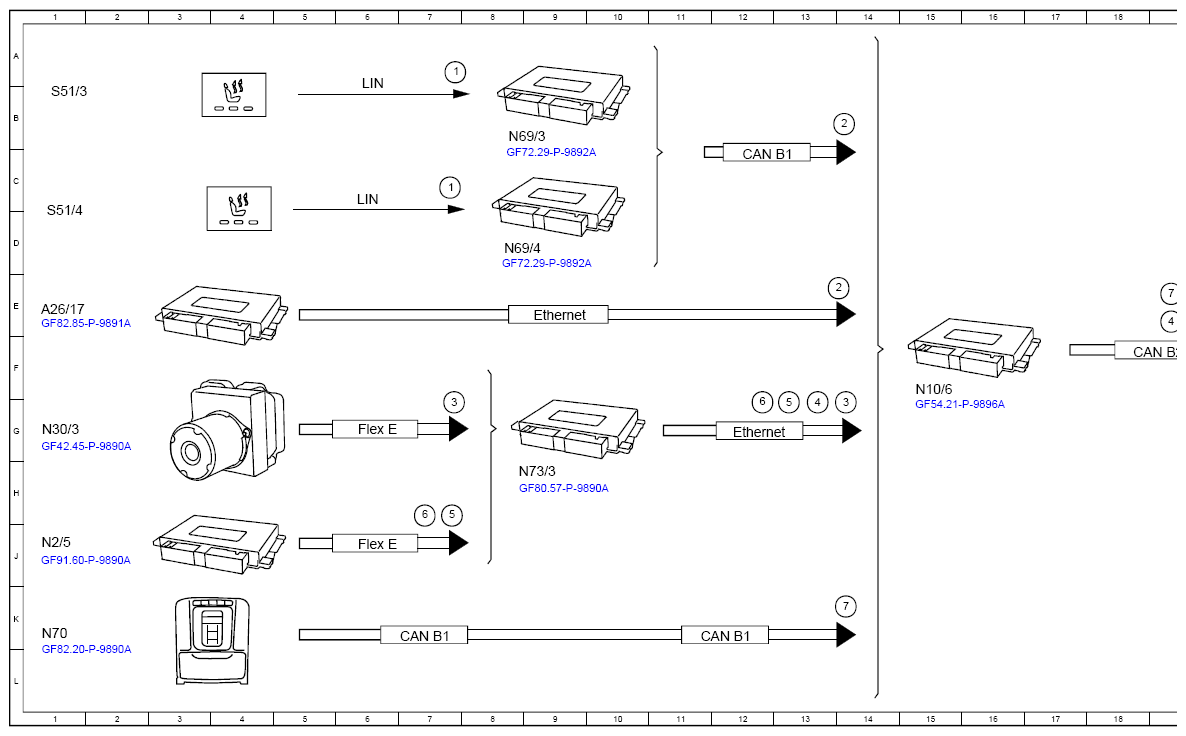

(Function Schematic For Actuating Rear Seat Heating - PE91.30-P-2503-97G)
Model 206, 214, 254
with code 872 (Left and right rear seat heating)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 7A |
| 1 | Seat climate control switch group, status | 7C |
| 2 | Seat heater, request | 14B |
| 2 | Seat heater, request | 14E |
| 2 | Seat heater, request | 20E |
| 3 | Transmission mode, signal | 14G |
| 3 | Transmission mode, signal | 7G |
| 3 | Transmission mode, signal | 19E |
| 4 | Circuit 15, status | 13G |
| 4 | Circuit 15, status | 19E |
| 5 | Seat belt buckle switch, status | 13G |
| 5 | Seat belt buckle switch, status | 20E |
| 5 | Seat belt buckle switch, status | 8H |
| 6 | Crash, signal | 20E |
| 6 | Crash, signal | 7H |
| 6 | Crash, signal | 12F |
| 7 | Interior temperature, signal | 14K |
| 7 | Interior temperature, signal | 19E |
| 8 | Seat heater, actuation | 27B |
| 9 | Seat heater, status | 27H |
| 9 | Seat heater, status | 32H |
| 9 | Seat heater, status | 37G |
| 9 | Seat heater, status | 37H |
| A26/17 | Head unit | 1E |
| CAN B1 | CAN 1 for vehicle interior | 12C |
| CAN B1 | CAN 1 for vehicle interior | 31H |
| CAN B1 | CAN 1 for vehicle interior | 7K |
| CAN B1 | CAN 1 for vehicle interior | 12K |
| CAN B2 | CAN 2 for vehicle interior | 18F |
| CAN B2 | CAN 2 for vehicle interior | 25H |
| Ethernet | Ethernet | 9E |
| Ethernet | Ethernet | 12G |
| Flex E | Chassis FlexRay | 6G |
| Flex E | Chassis FlexRay | 6J |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36J |
| LIN | Local Interconnect Network | 36G |
| N10/6 | Front signal acquisition and actuation module control unit | 15F |
| N10/6 | Front signal acquisition and actuation module control unit | 28J |
| N2/5 | Supplemental restraint system control unit | 1J |
| N25/3 | Rear seat heaters control unit | 22G |
| N30/3 | Electronic Stability Program control unit | 1G |
| N69/3 | Left rear door control unit | 8B |
| N69/3 | Left rear door control unit | 33H |
| N69/4 | Right rear door control unit | 8D |
| N69/4 | Right rear door control unit | 33J |
| N70 | Overhead control panel control unit | 1K |
| N73/3 | Electronic ignition switch control unit | 8H |
| R13/5 | Left rear seat cushion heater pad | 28B |
| R13/6 | Left rear seat backrest heater pad | 28C |
| R13/7 | Right rear seat cushion heater pad | 28C |
| R13/8 | Right rear seat backrest heater pad | 28C |
| S51/3 | Left rear seat heaters button | 1B |
| S51/3 | Left rear seat heaters button | 38G |
| S51/4 | Right rear seat heaters button | 1D |
| S51/4 | Right rear seat heaters button | 38J |
