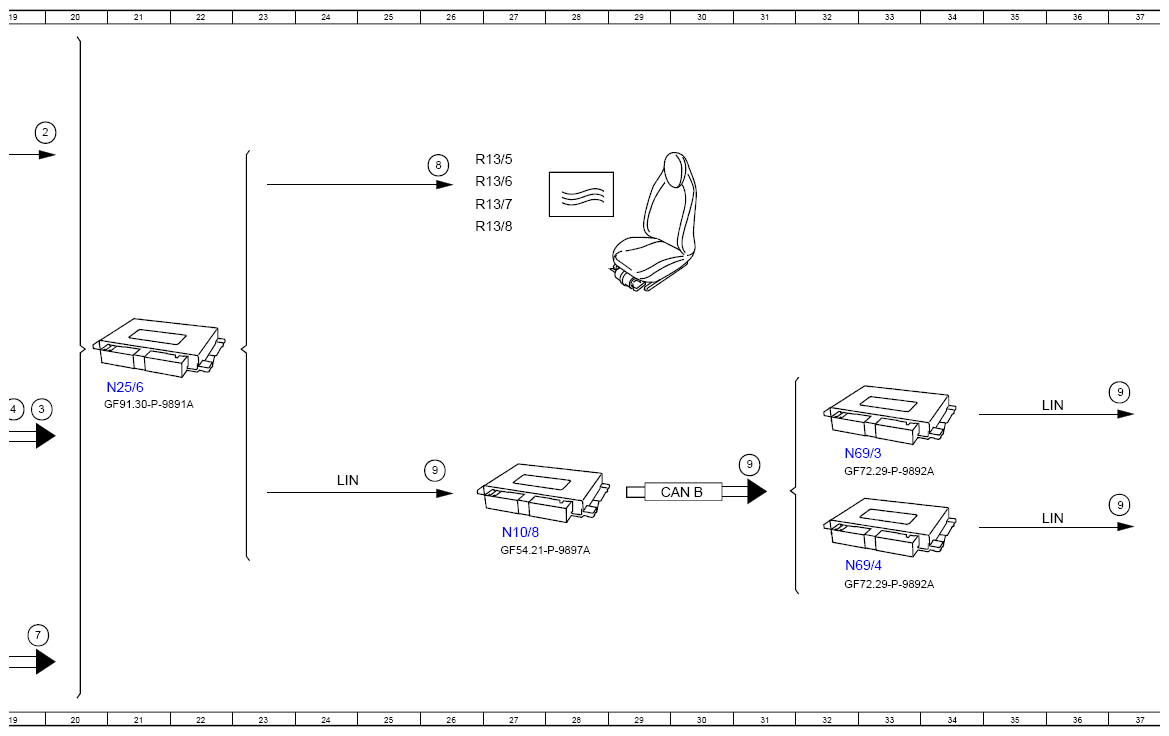

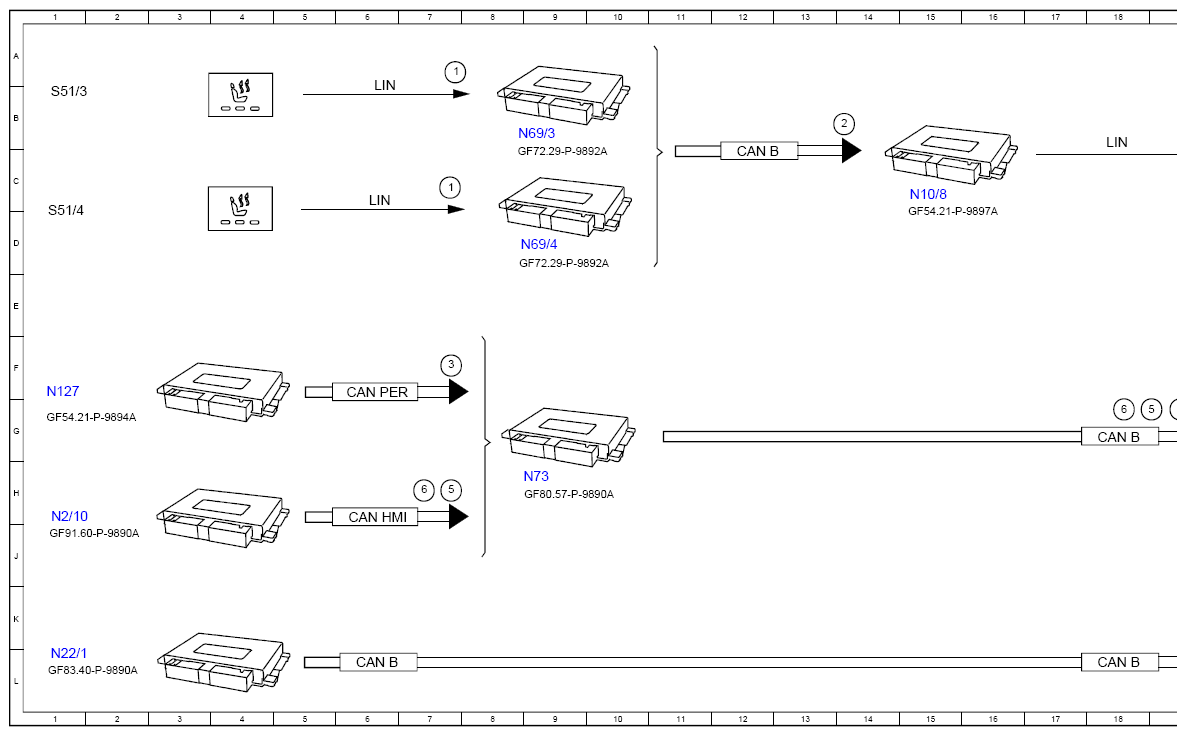

(Function Schematic For Actuating Rear Seat Heating - PE91.30-P-2503-97C)
Model 293 with code 872 (Heated rear seats)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Seat climate control switch group, status | 7A |
| 1 | Seat climate control switch group, status | 7C |
| 2 | Seat heater, request | 14B |
| 2 | Seat heater, request | 20B |
| 3 | Transmission mode, signal | 20G |
| 3 | Transmission mode, signal | 7F |
| 4 | Circuit 15, status | 19G |
| 5 | Seat belt buckle switch, status | 7H |
| 5 | Seat belt buckle switch, status | 19G |
| 6 | Crash, signal | 7H |
| 6 | Crash, signal | 18G |
| 7 | Interior temperature, signal | 20K |
| 8 | Seat heater, actuation | 26C |
| 9 | Seat heater, status | 31H |
| 9 | Seat heater, status | 37H |
| 9 | Seat heater, status | 37F |
| 9 | Seat heater, status | 26G |
| CAN B | Interior CAN | 12C |
| CAN B | Interior CAN | 18G |
| CAN B | Interior CAN | 30H |
| CAN B | Interior CAN | 18L |
| CAN B | Interior CAN | 6L |
| CAN HMI | User interface CAN | 6H |
| CAN PER | Peripherals CAN | 6F |
| LIN | Local Interconnect Network | 6B |
| LIN | Local Interconnect Network | 6C |
| LIN | Local Interconnect Network | 36H |
| LIN | Local Interconnect Network | 36G |
| LIN | Local Interconnect Network | 24H |
| LIN | Local Interconnect Network | 18B |
| N10/8 | Rear central control unit | 15C |
| N10/8 | Rear central control unit | 27J |
| N127 | Drivetrain control unit | 1F |
| N2/10 | Supplemental restraint system control unit | 1H |
| N22/1 | Climate control control unit | 1L |
| N25/6 | Rear seat heaters control unit | 21F |
| N69/3 | Left rear door control unit | 9B |
| N69/3 | Left rear door control unit | 32G |
| N69/4 | Right rear door control unit | 9D |
| N69/4 | Right rear door control unit | 32J |
| N73 | Ignition lock control unit | 9H |
| R13/5 | Left rear seat sitting surface heated cushion | 27C |
| R13/6 | Left rear backrest heated cushion | 27C |
| R13/7 | Right rear seat sitting surface heated cushion | 27C |
| R13/8 | Right rear backrest heater pad | 27D |
| S51/3 | Left rear heated seat switch | 1B |
| S51/3 | Left rear heated seat switch | 37G |
| S51/4 | Right rear heated seat switch | 1D |
| S51/4 | Right rear heated seat switch | 38J |
