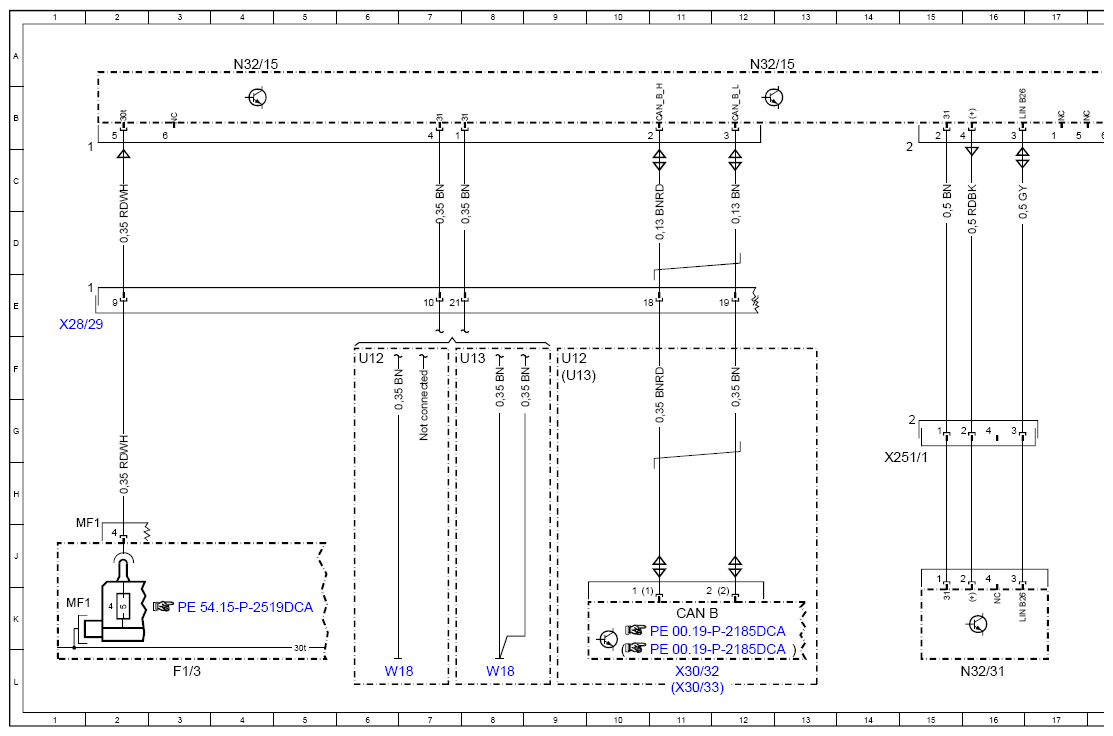

Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97DCA
Model 238 up to model year 2021
with code 399 (Front multicontour seat with massage function)
Control unit N32/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| CAN B | Interior CAN | 11K |
| Code 399 | Front multicontour seats with massage function | - |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF1 | Multiple fuse 1 | 1K |
| M25/8 | Left front multicontour seat pneumatic pump | 19L |
| N32/15 | Left front multicontour seat control unit | 12A |
| N32/15 | Left front multicontour seat control unit | 4A |
| N32/15 | Left front multicontour seat control unit | 20A |
| N32/31 | Left front backrest massage function control unit | 16L |
| U12 | Valid for left-hand drive vehicles | 6F |
| U12 | Valid for left-hand drive vehicles | 9F |
| U13 | Valid for right-hand drive vehicles | 9F |
| U13 | Valid for right-hand drive vehicles | 7F |
| W18 | Left front seat crossmember ground point | 6L |
| W18 | Left front seat crossmember ground point | 8L |
| X251/1 | Driver multicontour seat/slave active seat separation point | 15H |
| X28/29 | Frame floor assembly/ driver seat electrical connector | 1E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 11L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 11L |
