Removing Rear Head Restraint - AR91.16-P-1770LWR

Model 205.4

Model 238.4

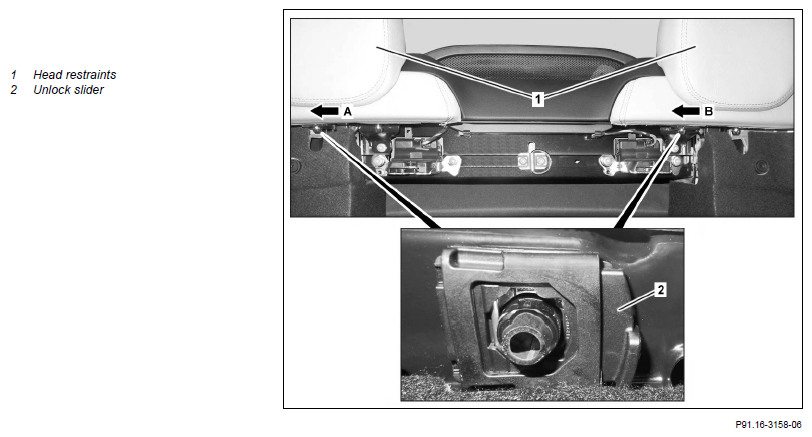

G15379358Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Release left or right backrest and fold forward
2 Slide release slide (2) of right and left head restraint (1) to the right (arrow A and arrow B) and remove relevant head restraint (1) from above INSTALLATION IMPORTANT : Push head restraint (1) downwards until it engages.
3 Install in the reverse order
