Remove/Install Driver Knee Airbag - AR91.60-P-0200LWO
Model 238
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Adjust steering column upward | ||
| 2 | Adjust driver seat to the rear | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003LWO | |

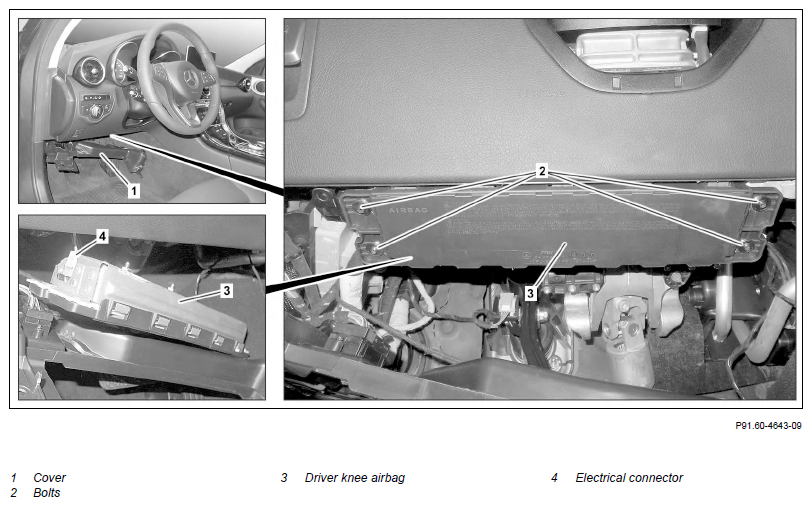

| 4 | Release cover (1) and lower until driver knee airbag (3) can be removed | AR68.10-P-1501LWE | |
| 5 | Unscrew screws/bolts (2) and lower driver knee airbag (3) until electrical connector (4) is accessible | *BA91.60-P-1003-01O | |
| 6 | Release and disconnect electrical connection (4) | Fig 2 | |
| 7 | Remove driver knee airbag (3) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check supplemental restraint system (SRS) with diagnostic unit | When replacing driver knee airbag (3). | |
| AD00.00-P-2000-06LWO |
AIRBAG
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA91.60-P-1003-01O | Bolt, knee airbag to crossmember | Nm | 4 |
