Remove/Install Front Side Air Vent Temperature Sensor - AR83.30-P-7801LWO

Model 238

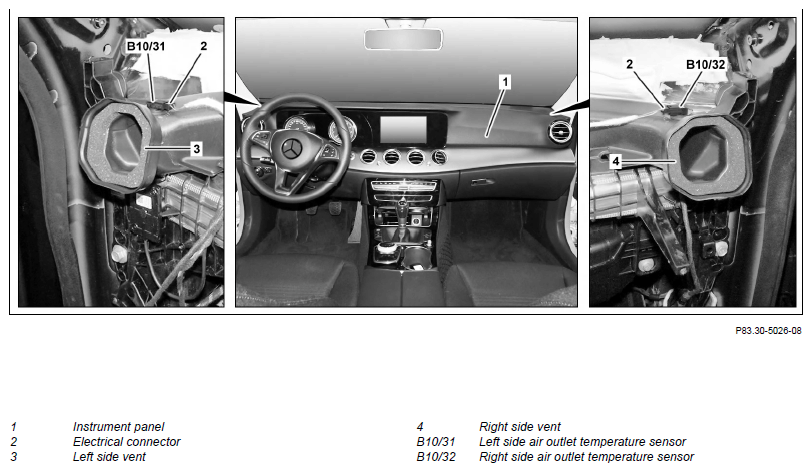

Fig 1: Left/Right Front Side Air Vent Temperature Sensor Components Location - Model 238

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Dashboard (1) removal		AR68.10-P-1000LWE
2	Disconnect corresponding electrical connector (2)
3	Turn left side air vent air outlet temperature sensor (B10/31) or right side air vent air outlet temperature sensor (B10/32) through 90° in counterclockwise direction and pull out of left side air vent (3) or right side air vent (4)
4	Install in the reverse order
