Check Active Seat Belt Buckle Adapter - AP86.20-P-8663C
Model 156, 169, 172, 176, 177, 204, 205, 206, 207, 212, 213, 214, 218, 221, 222, 223, 238, 243, 245, 246, 247, 253, 254, 257, 293 with code 45P (Disability conversion - Sales control code)
| Check | |||

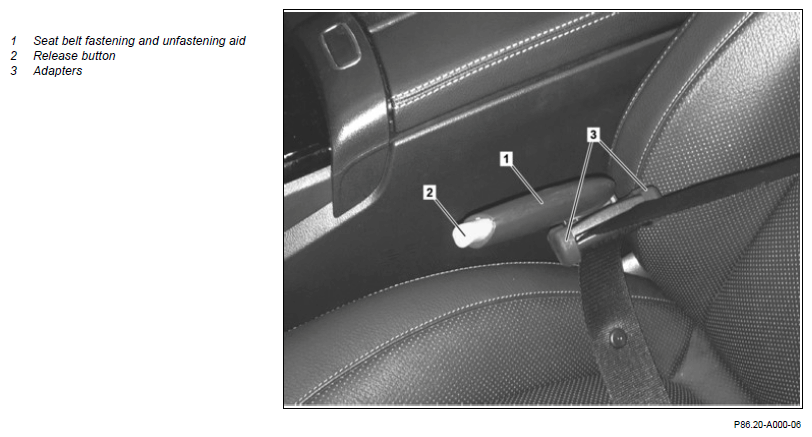

| 1 | Check seat belt with seat belt fastening and unfastening aid (1) for correct latching of seat belt tongue in seat belt buckle. | If problems are determined, ↓ rectify the problems. |
|
| 2 | Press release button (2) and seat belt fastening and unfastening aid (1) simultaneously, pull up and check for proper operation and ease of movement. | If problems are determined, ↓ rectify the problems. |
|
| 3 | Check seat belt fastening and unfastening aid (1) for damage. | If problems are determined, ↓ rectify the problems. |
|
| 4 | Check threaded connections on adapters (3) for firm seating. | If the threaded connections on the adapters (3) are not adequately fastened, ↓ retighten threaded connections on adapters (3). |
