Doors And Lids Gap Dimensions On Hoods - Ar60.00-P-0700-01LWO

Model 238

MODIFICATION NOTES

29.04.2021

Front door window to rear side window

MODEL 238.4

BE60.00-P-1016-01HA

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1001-01HA	Engine hood to fender	Dimension "A"	mm	3 (± 0, 5)	3 (± 0, 5)
BE60.00-P-1001-01HA	Engine hood to fender	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1002-01HA	Engine hood to headlamp	Dimension "B"	mm	7, 5 (± 1, 5)	7, 5 (± 1, 5)
BE60.00-P-1002-01HA	Engine hood to headlamp	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1003-01HA	Engine hood to radiator trim/soft nose	Dimension "C"	mm	3, 5 (± 0, 5)	3, 5 (± 0, 5)
BE60.00-P-1003-01HA	Engine hood to radiator trim/soft nose	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1004-01HA	Protrusion of radiator trim/soft nose, engine hood	Dimension "C1"	mm	1, 5 (± 1)	1, 5 (± 1)
BE60.00-P-1004-01HA	Protrusion of radiator trim/soft nose, engine hood	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1005-01HA	Engine hood to bumper	Dimension "D"	mm	4, 5 (± 1)	4, 5 (± 1)
BE60.00-P-1005-01HA	Engine hood to bumper	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1006-01HA	Bumper to headlamp	Dimension "E"	mm	2 (± 0, 5)	2 (± 0, 5)
BE60.00-P-1006-01HA	Bumper to headlamp	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1007-01HA	Front door to sidewall	Dimension "H1"	mm	3, 5 (± 0, 5)	3, 5 (± 0, 5)
BE60.00-P-1007-01HA	Front door to sidewall	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1008-01HA	Front door to fender	Dimension "G"	mm	3, 5 (± 0, 5)	3, 5 (± 0, 5)
BE60.00-P-1008-01HA	Front door to fender	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1009-01HA	Trunk lid to fender at rear, top	Dimension "K"	mm	3, 5 (± 0, 5)	3 (± 0, 5)
		Dimension "K1"	mm	4 (± 0, 5)	-
		For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1010-01HA	Taillamp to bumper	Dimension "L"	mm	1, 5 (± 0, 5)	1, 5 (± 0, 5)
BE60.00-P-1010-01HA	Taillamp to bumper	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1011-01HA	Trunk lid to bumper	Dimension "M1"	mm	5, 5 (± 1)	5, 5 (± 1)
BE60.00-P-1011-01HA	Trunk lid to bumper	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1012-01HA	Rear fender to taillamp	Dimension "N"	mm	1 (± 0, 5)	1 (± 0, 5)
BE60.00-P-1012-01HA	Rear fender to taillamp	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1013-01HA	Fuel filler flap	Dimension "O"	mm	2 (± 0, 5)	2 (± 0, 5)
BE60.00-P-1013-01HA	Fuel filler flap	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1014-01HA	Outside of taillamp to inside of taillamp	Dimension "T"	mm	4 (± 1)	4 (± 1)
BE60.00-P-1014-01HA	Outside of taillamp to inside of taillamp	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1015-01HA	Taillamp to trunk lid	Dimension "Y"	mm	1 (± 0, 5)	1 (± 0, 5)
BE60.00-P-1015-01HA	Taillamp to trunk lid	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1016-01HA	Front door window to rear side window	Dimension "J1"	mm	7, 5 (± 1)	9 (± 0, 5)
BE60.00-P-1016-01HA	Front door window to rear side window	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1017-01HA	Longitudinal member panel to front door	Dimension "G1"	mm	5 (± 1)	5 (± 1)
BE60.00-P-1017-01HA	Longitudinal member panel to front door	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1018-01HA	Longitudinal member trim to fender	Dimension "A1"	mm	2 (± 0, 5)	2 (± 0, 5)
BE60.00-P-1018-01HA	Longitudinal member trim to fender	For picture, see		AR60.00-P-0700-01LWO	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1019-01HA	Soft top to soft top compartment lid	Dimension "Z1"	mm	-	4 (± 1, 5)
BE60.00-P-1019-01HA	Soft top to soft top compartment lid	For picture, see		-	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1020-01HA	Soft top to windshield frame	Dimension "Z2"	mm	-	5, 5 (+1, 5)
BE60.00-P-1020-01HA	Soft top to windshield frame	For picture, see		-	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1021-01HA	Soft top compartment lid to rear fender	Dimension "Z3"	mm	-	3 (+1/-0, 5)
BE60.00-P-1021-01HA	Soft top compartment lid to rear fender	For picture, see		-	AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.3	Model 238.4
BE60.00-P-1022-01HA	Soft top compartment lid to trunk lid	Dimension "Z4"	mm	-	5 (± 0, 5)
BE60.00-P-1022-01HA	Soft top compartment lid to trunk lid	For picture, see		-	AR60.00-P-0700-01LWO

Fig 1: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

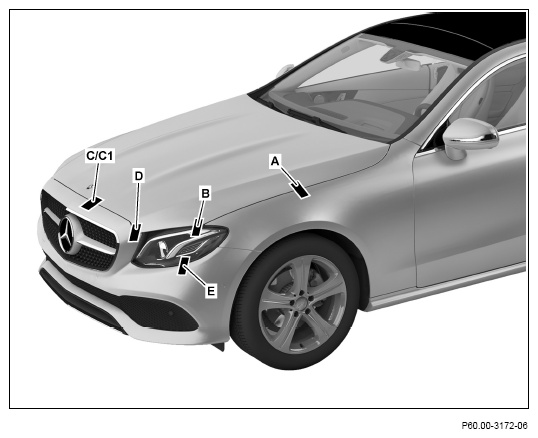

Front gap dimensions, shown on model 238.3

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

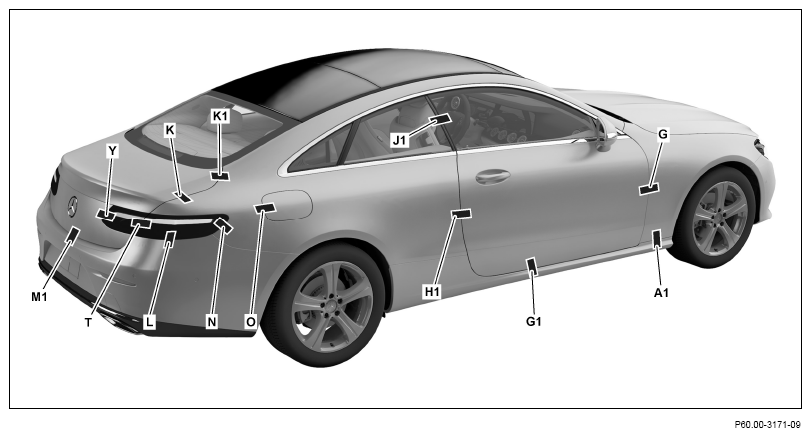

Rear and side gap dimensions, shown on model 238.3

Courtesy of MERCEDES-BENZ USA

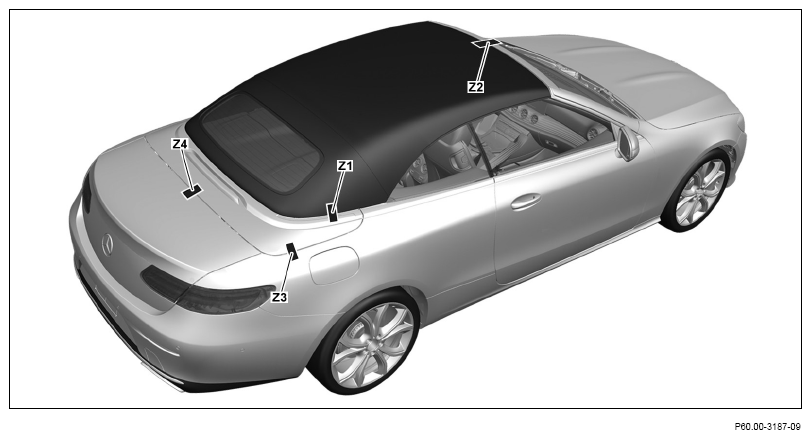

Soft top gap dimensions, shown on model 238.4

Check gap dimensions on hoods, doors and covers with feeler gauge as shown in drawings.
Adjust hood, doors, lids and soft top as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. In the case of a too large or too small clearance of the openings, accordingly center the movable body parts. The specifications apply only for repair work on vehicles damaged in accidents.
